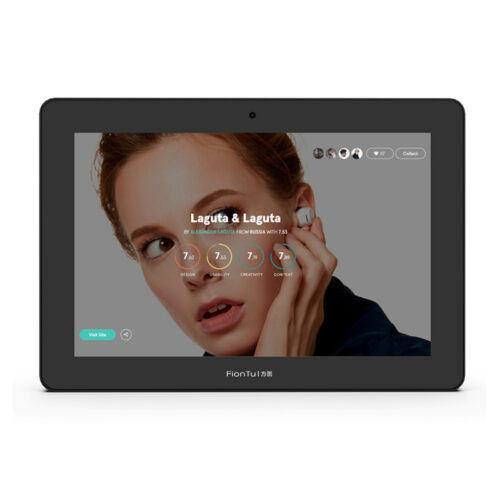

10.1 Intelligent Interactive All-in-One Machine FT-1012A

This device features a 10.1-inch HD capacitive touchscreen with a resolution of 1280x800, powered by an RK3399 processor, 2GB RAM, and 16GB storage, running Android 7.1/9.0. It supports 4K video playback, multiple audio/image formats, and various connectivity options, including WiFi, Bluetooth, Ethernet, and POE. Additional features include a 5MP front camera, dual speakers, and support for VESA mounting.
Categories:
Get Quote
Category Tag
Description
  • Support MPEG-1,MPEG-2,MPEG-4,H.265,H.264,VC-1,VP8, etc., support up to 4k video format
  • Support MP3/WMA/AAC etc. audio format
  • Support jpeg picture format
  • Configuration power adapter 12V/1.5A, instruction manual
Parameter
System
CPU RK3399,Dual-core A72+quad-core A53
RAM 2GB
Memory 16GB
Operating system Android 7.1/9.0
Touch screen 10-point capacitive touch

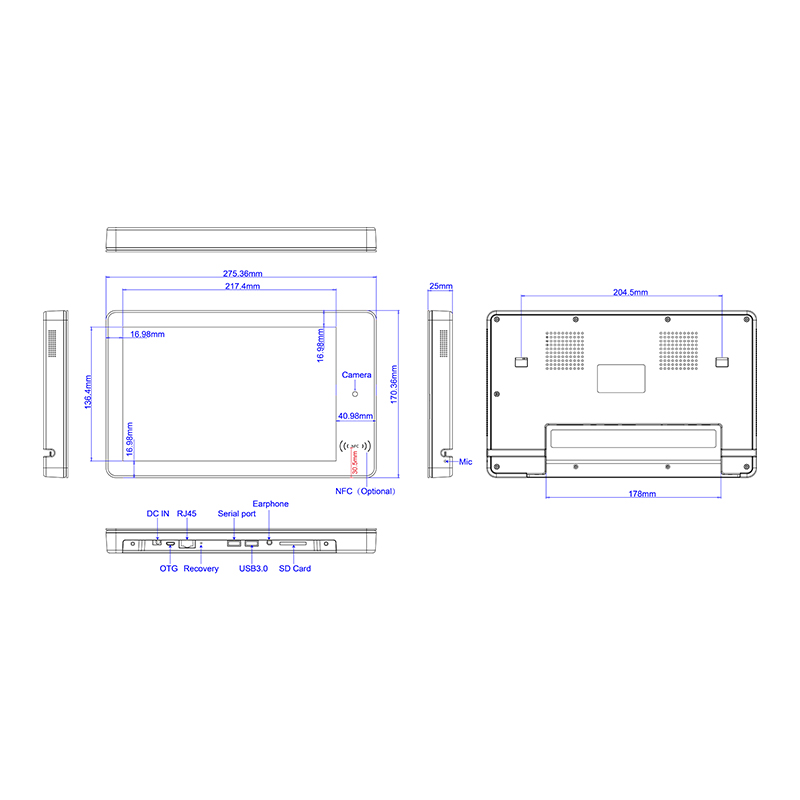

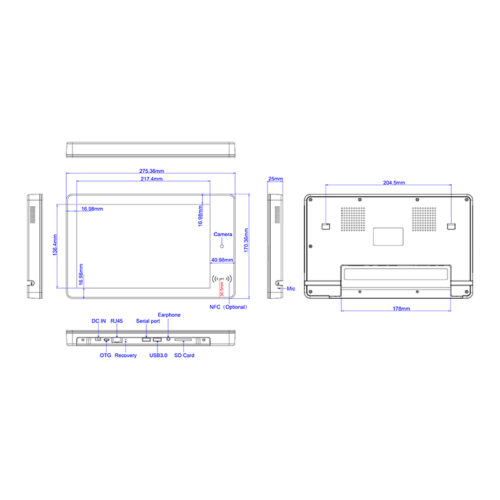

Single machine size LxWxH (mm) 216.6*135.6*28.7
Color box size LxWxH (mm) 363*65*225
Display
LCD Screen 10.1 HD full-view screen
 Resolution 1280*800
 Display mode Normally black
 Viewing angle 85/85/85/85
 Contrast 800
 Brightness 250cd/m2
 Screen ratio 16:10
Network
 WiFi 802.11b/g/n
 Bluetooth Bluetooth 4.0
 Ethernet 100M/1000M network port
Interface
 SD card SD
 USB USB 3.0 host
 Micro USB Micro USB OTG
 USB USB for serial port, RS232 format
 RJ45 Ethernet interface (optional POE function IEEE802.3at, POE+, class 4, 25.5W )
DC DC power 12V input
Headset 3.5mm stereo headphone output
Other functions

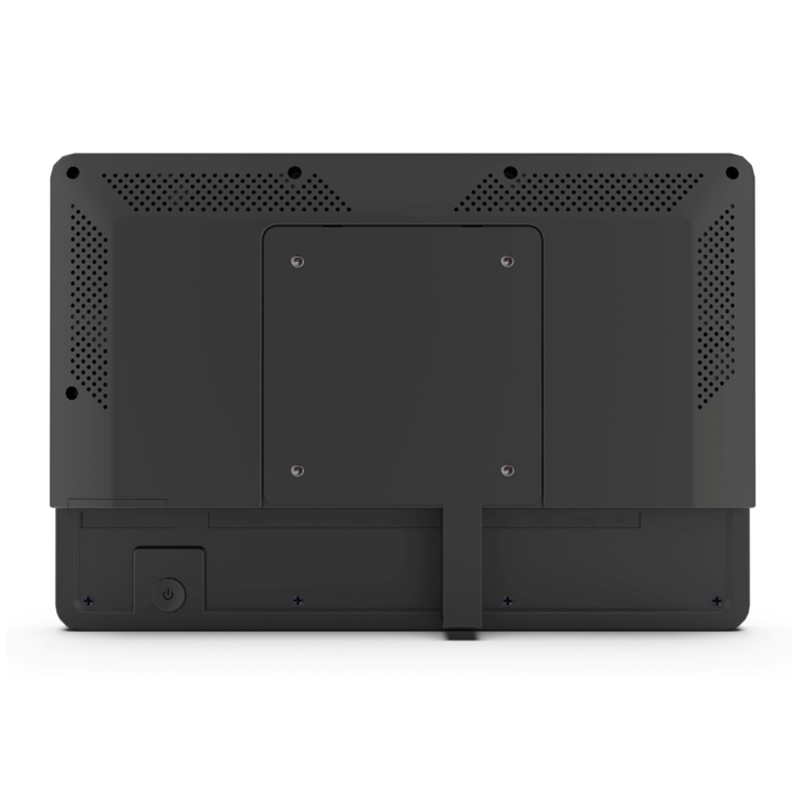

VESA 75*75 MM
Microphone standard microphone
Speaker 2*2W
Camera front 500W
Working temperature 0--40 degrees
OSD language Chinese, English and other multi-language OSD operation
Donwload
FT-1012A
