10.1 Intelligent Interactive All-in-One Machine FT-1012AT

This device features a 10.1-inch HD touchscreen with a resolution of 1280x800, powered by an RK3399 processor, 2GB RAM, and 16GB storage, running Android 7.1/9.0. It supports 4K video playback, multiple media formats, and offers versatile connectivity options like WiFi, Bluetooth, Ethernet, and POE. Additional features include a front camera, dual speakers, adjustable LED light bar, and VESA mounting support.
Categories:
Get Quote
Category Tag
Description
  • Support MPEG-1, MPEG-2, MPEG-4, H.263, H.264, VC1, RV etc., support up to 4K video format
  • Support MP3/WMA/AAC etc. audio format
  • Support jpeg picture format
  • Configure power adapter 12V/1.5A, instruction manual
Parameter
System
CPU RK3399, Dual-core A72+quad-core A53
RAM 2GB
Memory 16GB
Operating system Android 7.1/9.0
Touch screen 10-point capacitive touch

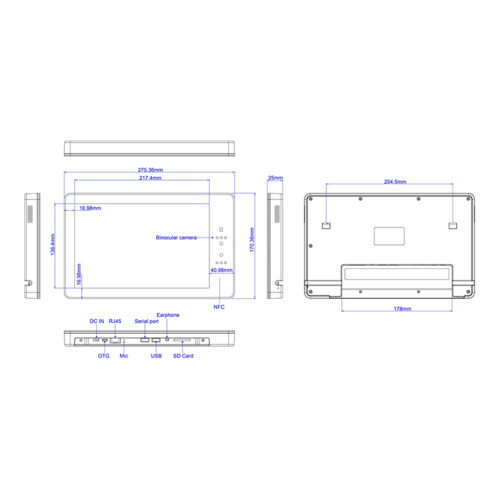

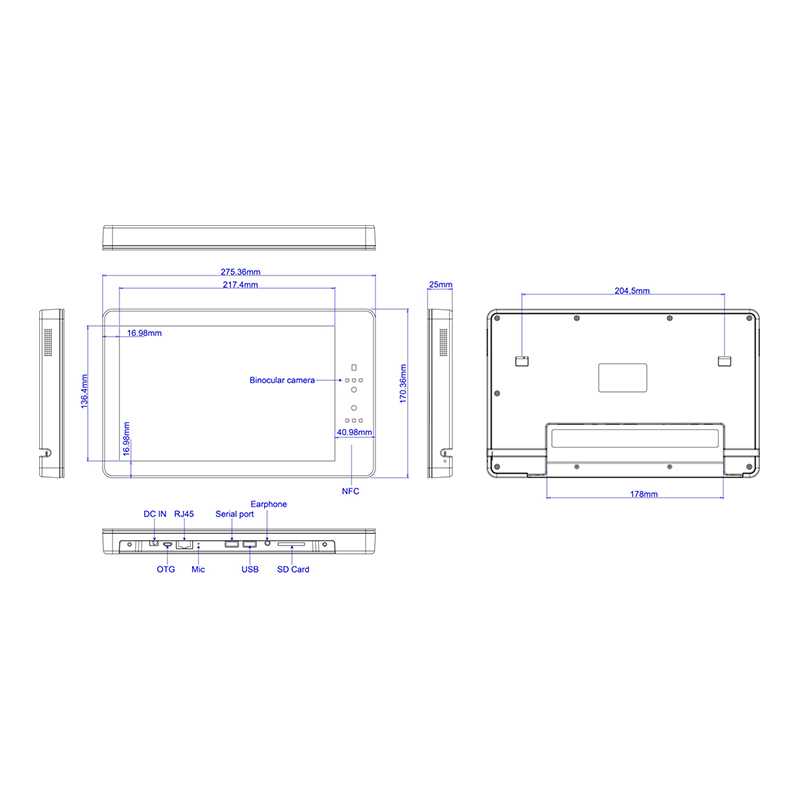

Single machine size LxWxH (mm) 275.36*170.36*25
Color box size LxWxH (mm) 390*220*68
Display
LCD Screen 10.1 HD screen
Resolution 1280*800
Display mode Normally black
Viewing angle 85/85/85/85
Contrast 800
Brightness 250cd/m2
Screen ratio 16:10
Network
WiFi 802.11b/g/n
Bluetooth Bluetooth 4.0
Ethernet 100M/1000M network port
Interface
SD card SD
USB USB host
Micro USB Micro USB OTG
USB USB for serial port, RS232 format
RJ45 Ethernet interface (optional POE function IEEE802.3at, POE+, class 4, 25.5W )
DC DC power 12V input
Headset 3.5mm stereo headphone output + microphone input
Other functions

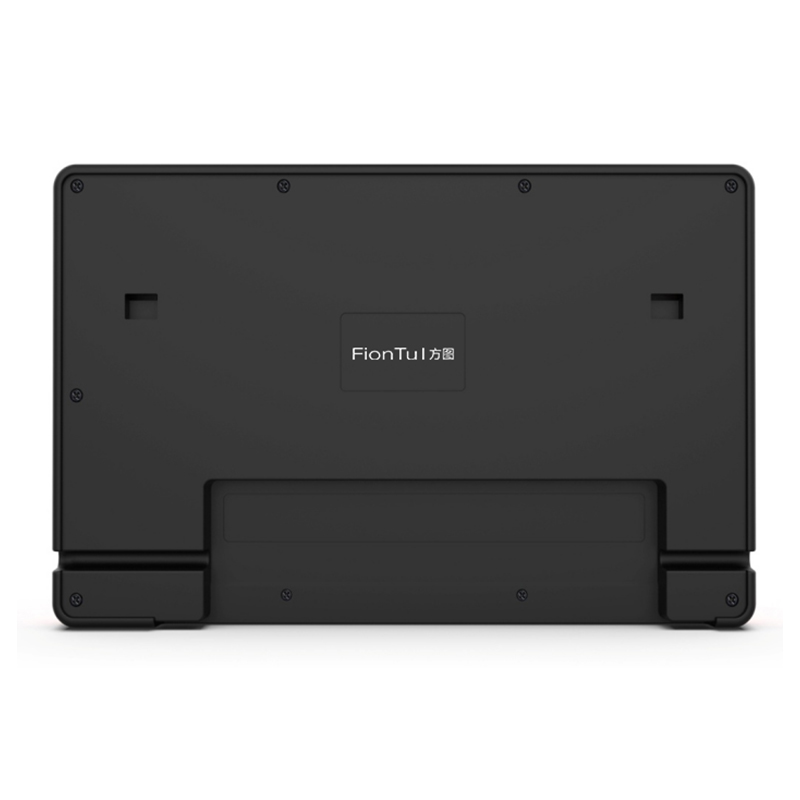

VESA 204.5mm
OSD language Chinese, English and other multi-language OSD operation
Speaker 2*2W
Camera front 200W camera/binocular camera (optional)
Microphone microphone
LED light bar LED light bar, adjustable RBG and mixed color
Working temperature 0--40 degrees
Donwload
FT-1012AT
