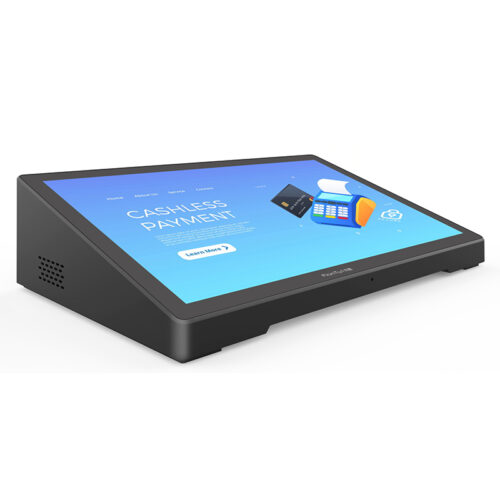

10.1 Intelligent Interactive All-in-One Machine FT-1017T

This 10.1-inch HD IPS touchscreen device features a 1280x800 resolution display with wide viewing angles and a 16:10 aspect ratio. Powered by an RK3128 quad-core CPU with 1GB RAM and 16GB storage, it supports 1080p video playback, versatile connectivity (WiFi, Bluetooth, Ethernet, USB), and includes dual 2W speakers and multi-language OSD.
Categories:
Get Quote
Category Tag
Description
  • Support MPEG-1,MPEG-2,MPEG-4,H.265,H.264,VC-1,VP8, etc. Maximum 1920x1080p video format
  • Support MP3/WMA/AAC etc. audio format
  • Support jpeg picture format
  • Configure power adapter 12V/1.5A, instruction manual
Parameter
System
CPU RK3128 quad-core, Cortex A7
RAM 1GB
 Memory 16GB
Operating system Android 6.0
Touch screen 10-point capacitive touch
Single machine size LxWxH (mm) 217.38*136.16*63.25
Color box size LxWxH (mm) 354*215*89
Display
LCD Screen 10.1 HD IPS screen
Resolution 1280*800
Screen ratio 16:10
Viewing angle 85/85/85/85
Display mode Normally black
Contrast ratio 800:1
Brightness 300cd/m2
Network
WiFi 802.11b/g/n
Bluetooth Bluetooth 4.0
Ethernet 100M/1000M network port

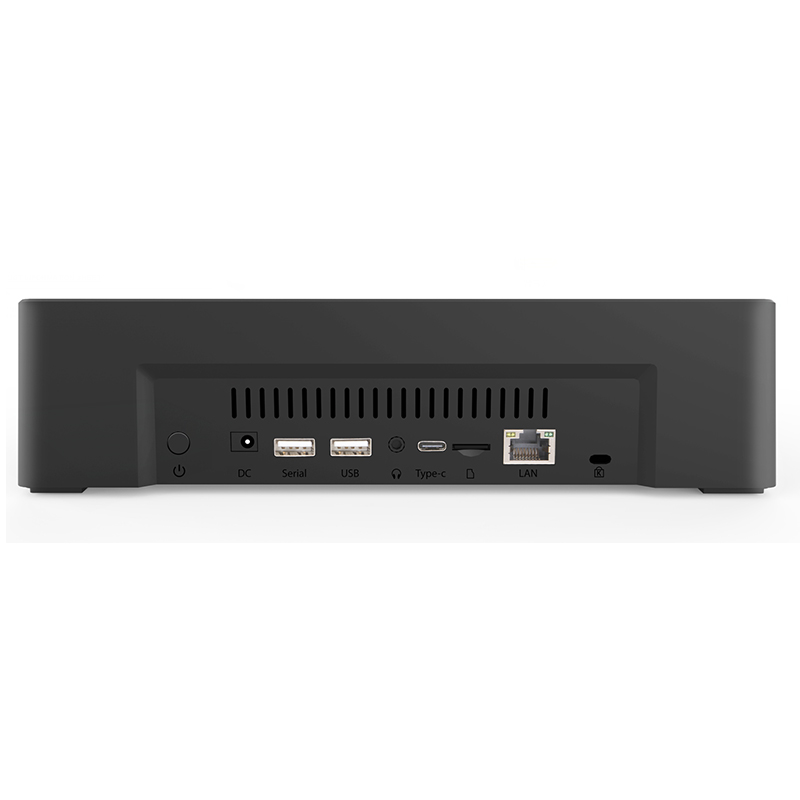

Interface
TF card TF card, (supports up to 32GB)
Type-c Only supports USB OTG
USB USB 2.0 Host
USB USB type serial port
Power jack DC power input
Headphones 3.5mm stereo headphone output
RJ45 Ethernet interface
Other functions
Speaker 2*2W
Microphone Standard
OSD language Chinese, English and other multi-language OSD operation
Working temperature 0--40 degrees
Donwload
FT-1017T
