15.6 Intelligent Interactive All-in-One Machine FT-1562A

This 15.6-inch touchscreen device features a 1920x1080 resolution display, powered by an RK3399 processor, 2GB RAM, and 16GB storage, running Android 7.1/10.0. It supports 4K video playback, multiple media formats, and offers versatile connectivity, including WiFi, Bluetooth, Ethernet, POE, and HDMI output. Additional features include a built-in microphone, wide-angle camera, dual speakers, and multi-language OSD.
Categories:
Get Quote
Category Tag
Description
  • Support MPEG-1,MPEG-2,MPEG-4,H.265,H.264,VC-1,VP8,VP9, etc., support up to 4K video
  • Support MP3/WMA/AAC etc. audio formats
  • Support jpeg image format
  • Configure power adapter 12V/2A, instruction manual
Parameter
System
CPU RK3399 Dual-core A72+quad-core A53
RAM 2GB
Memory 16GB
Operating system Android 7.1/10.0
Touch screen 10-point capacitive touch

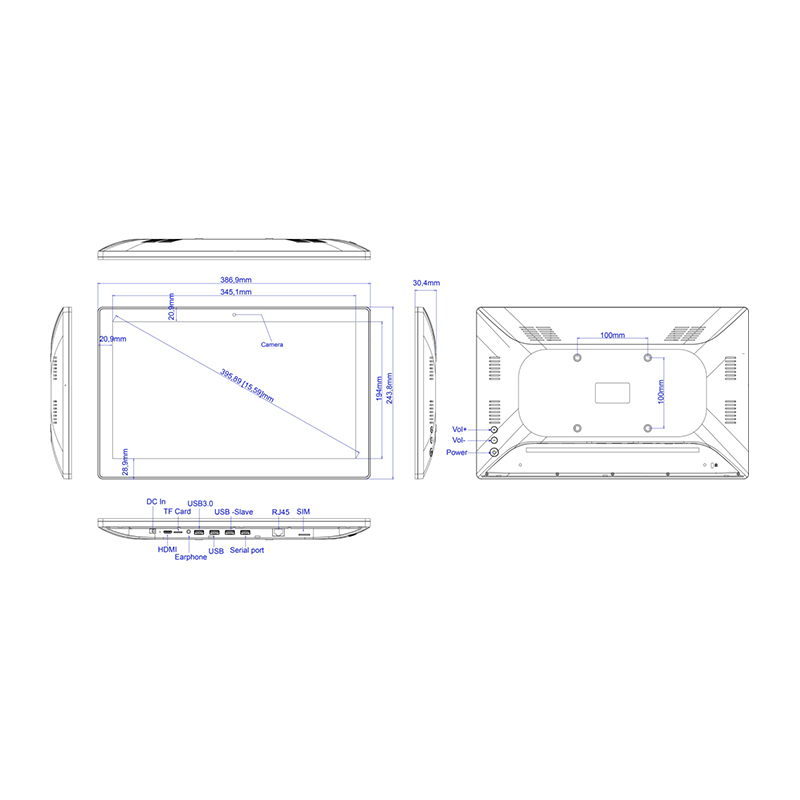

Single machine size LxWxH 386.9*243.8*30.4(mm)
Single machine weight 1.38KG
Color box size LxWxH (mm) 475*85*295
Color box weight 2.4KG
Display
Touch screen 10-point capacitive touch
LCD screen 15.6 high-definition wide viewing angle screen
Resolution 1920*1080
Contrast 800
Brightness 250cd/m2
Screen ratio 16:9
Network
WiFi 802.11b/g/n
Bluetooth BT4.0
Ethernet 10M/100M network port
Interface
TF card TF card
USB USB slave, connected to computer
USB Host USB 2.0 host USB 3.0 host
Serial port USB for serial port (RS232 format)
HDMI HDMI output, maximum output 4K
Power jack DC power input
Headphone 3.5mm stereo headphone output, with microphone input
RJ45 RJ45 Ethernet interface (optional POE function IEEE802.3at, POE+, class 4, 25.5W)
Other functions
Microphone support microphone
Color black
Speaker 2*2W
Camera wide angle 200W
OSD language Chinese, English and other multi-language OSD operation
Working temperature 0--40 degrees
Donwload
FT-1562A
