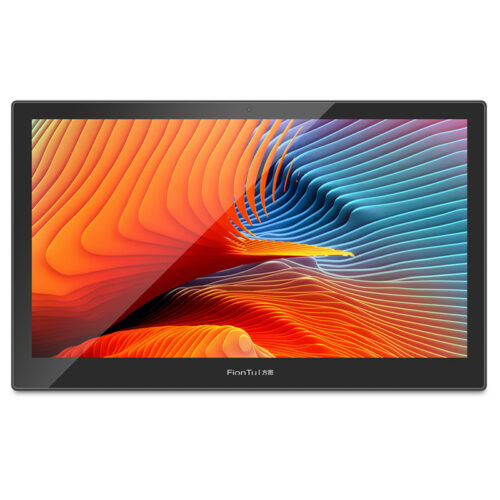

17.3 Intelligent Interactive All-in-One Machine FT-1732A

This 17.3-inch Full HD touchscreen device features a 1920x1080 resolution display and RK3399 processor, with 2GB RAM and 16GB storage, running Android 7.1/9.0. It supports 4K video playback, multiple media formats, and includes versatile connectivity options such as WiFi, Bluetooth, Ethernet, USB, and HDMI. Additional features include a wall mount, front camera, microphone, dual speakers, and multi-language OSD support.
Categories:
Get Quote
Category Tag
Description
  • Support MPEG-1,MPEG-2,MPEG-4,H.263,H.264,VC1,RV etc.,support up to 4K video format
  • Support MP3/WMA/AAC etc. audio format
  • Support jpeg picture format
  • Configuration power adapter 12V/3A, instruction manual
Parameter
System
CPU Dual-core A72+quad-core A53, RK3399
RAM 2GB
Memory 16GB
Operating system Android 7.1/9.0
Touch screen 10-point capacitive touch

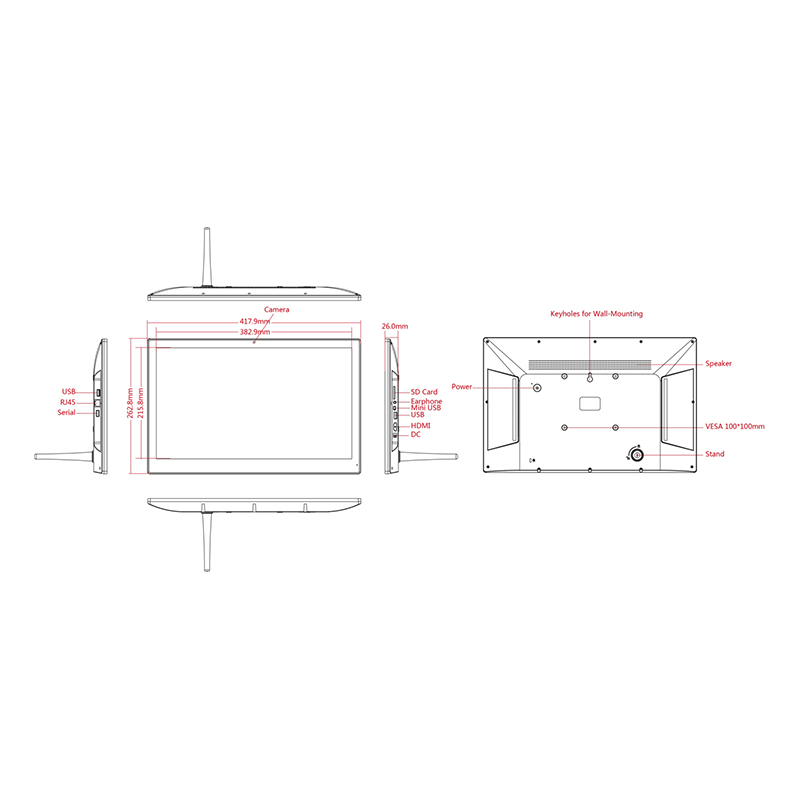

Single machine size LxWxH (mm) 417.9*262.8*27
Single machine weight 1.61KG
Color box size LxWxH (mm) 453*87*360
Color box weight 2.31KG
Display
LCD Screen 17.3 Full HD LCD screen
 Resolution 1920*1080, Full HD
 Viewing area 381.89(H)x214.81mm(V)
 Viewing angle 85/85/85/85 (up/down/left/right)
 Display mode Normally black
 Contrast 800
 Brightness 250cd/m2
 Screen ratio 16:9
Network
WiFi 802.11b/g/n
Bluetooth Bluetooth 4.0
Ethernet 100M/1000M network port
Interface
SD SD card, (supports up to 32GB)
Mini USB USB OTG
USB Host USB 3.0
USB Hostx2 USB host 2.0
Serial port 4P-2.0mm (RS232 format)
Power jack DC power input
RJ-45 Ethernet cable interface
HDMI HDMI output
Headphones 3.5mm stereo headphone output
Other functions

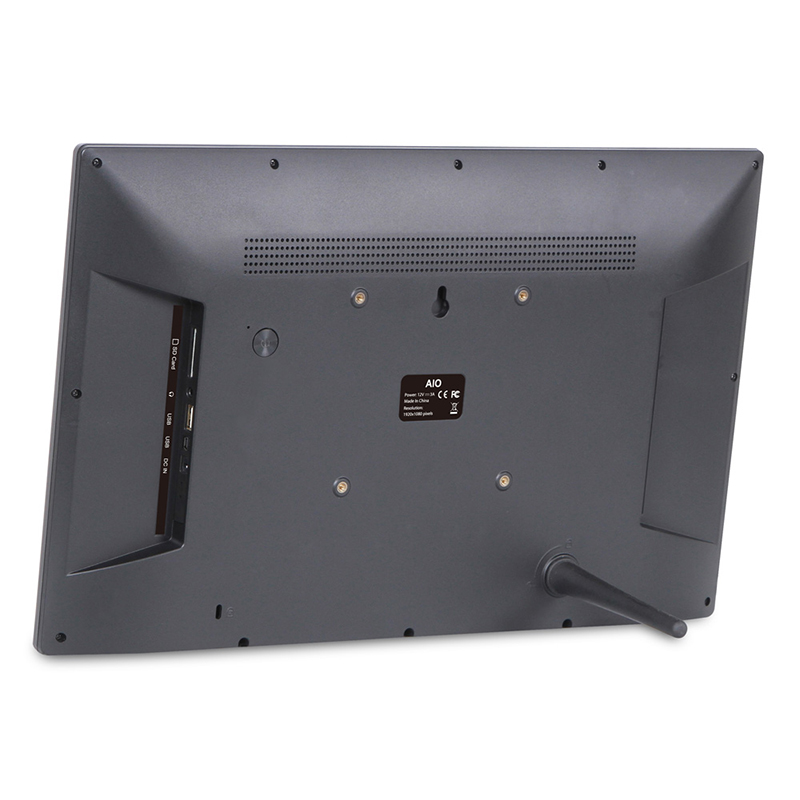

Wall mount 100x100 standard wall mount VESA hole
Power consumption 20W
Speaker 2*2W
Camera  front 200W
Microphone  standard
OSD language  Chinese, English and other multi-language OSD operation
Working temperature  0--40 degrees
