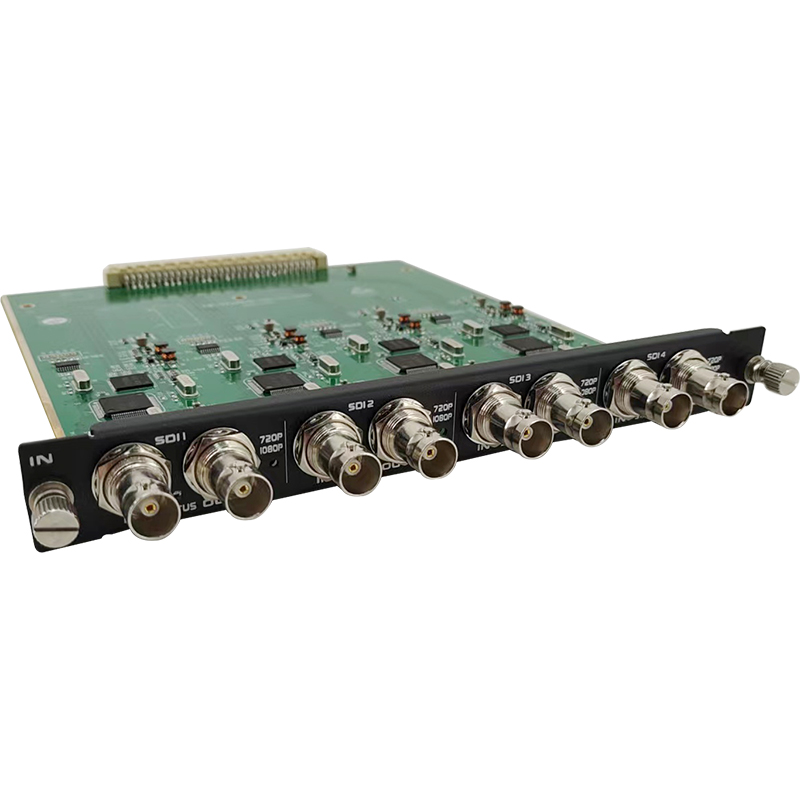

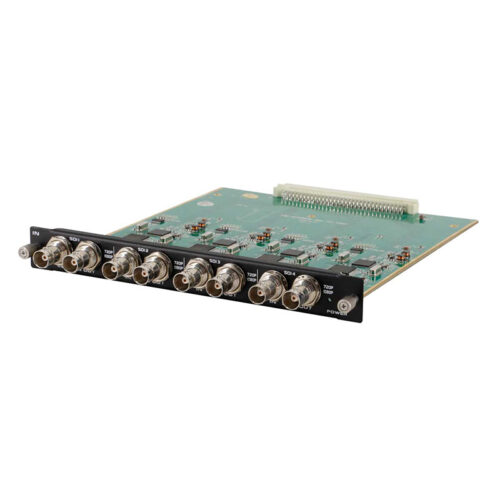

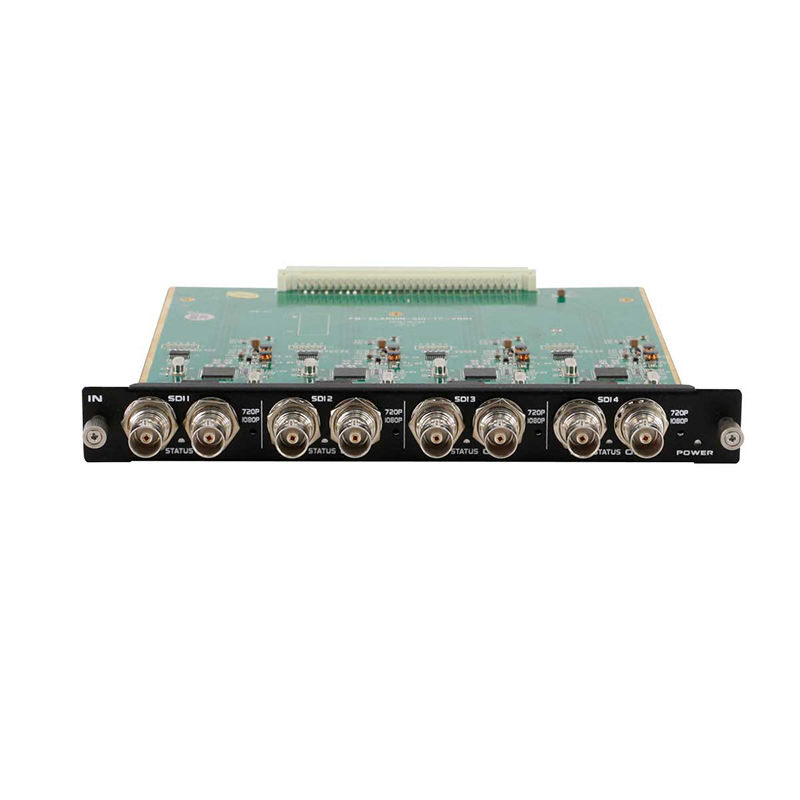

3GSDI Input Board FT-4ISMUS

The FT-4ISMUS is a 4-channel SDI seamless input board with 4 SDI loop outputs, supporting 1080p60Hz resolution and embedded or external audio. It features seamless switching, hot-plugging, ESD protection, and online updates, ensuring reliable performance and easy maintenance. Compatible with HDMI1.3 and HDCP1.4, it supports up to 20-meter cable lengths.
Categories:
Get Quote
Category Tags , , , ,
Description
  1. FT-4ISMUS is an SDI seamless input board that supports 4-channel SDI audio and video signal input, 4-channel SDI video loop output, and supports digital high-definition 1080P60Hz signal. It has a highly integrated board design and can be equipped with any number of boards as needed, which brings great convenience to application and maintenanc
  2. Supports 8-channel SDI interface and Phoenix terminal audio socket
  3. Supports fast seamless switching, no flicker, no black screen
  4. Supports power-off on-site switching memory protection function, unique ESD static protection function
  5. Supports audio selection input for HDMI embedded audio/external analog audio
  6. Supports image parameter correction
  7. Compatible with HDMI1.3 and HDCP1.4 standards
  8. The maximum resolution supports 1920X1080@60HZ resolution, with a 20-meter cable length with equalization
  9. Supports hot plugging, plug and play, extremely convenient
  10. Supports online update of board program for easy maintenance and upgrade
Parameter
Protocol HDMI1.3 standard, HDCP1.4 protocol
Gain 0 dB
Pixel bandwidth 300MHz, all digital
Interface bandwidth 4.5Gbps, all digital (13.5Gbps in total, 4.5Gbps for each color)
Maximum supported resolution 1920*1080@60HZ resolution
Bit clock jitter (Clock Jitter) <0.15 Tbit
Rise time <0.3Tbit (20%--80%)
Fall time <0.3Tbit (20%--80%)
Maximum transmission delay 5nS (±1nS)
Interface 8-way BNC female interface, 4-way 3P Phoenix terminal audio input
Signal strength T.M.D.S.+/-0.4Vpp
Minimum/maximum level T.M.D.S.2.9V/3.3V
Impedance 50Ω
EDID Adaptive input EDID
Maximum DC bias error 15mV
Recommended maximum input/output distance input less than 20 meters
Product weight about 1KG
Maximum power consumption 15W
Donwload
FT-4ISMUS
