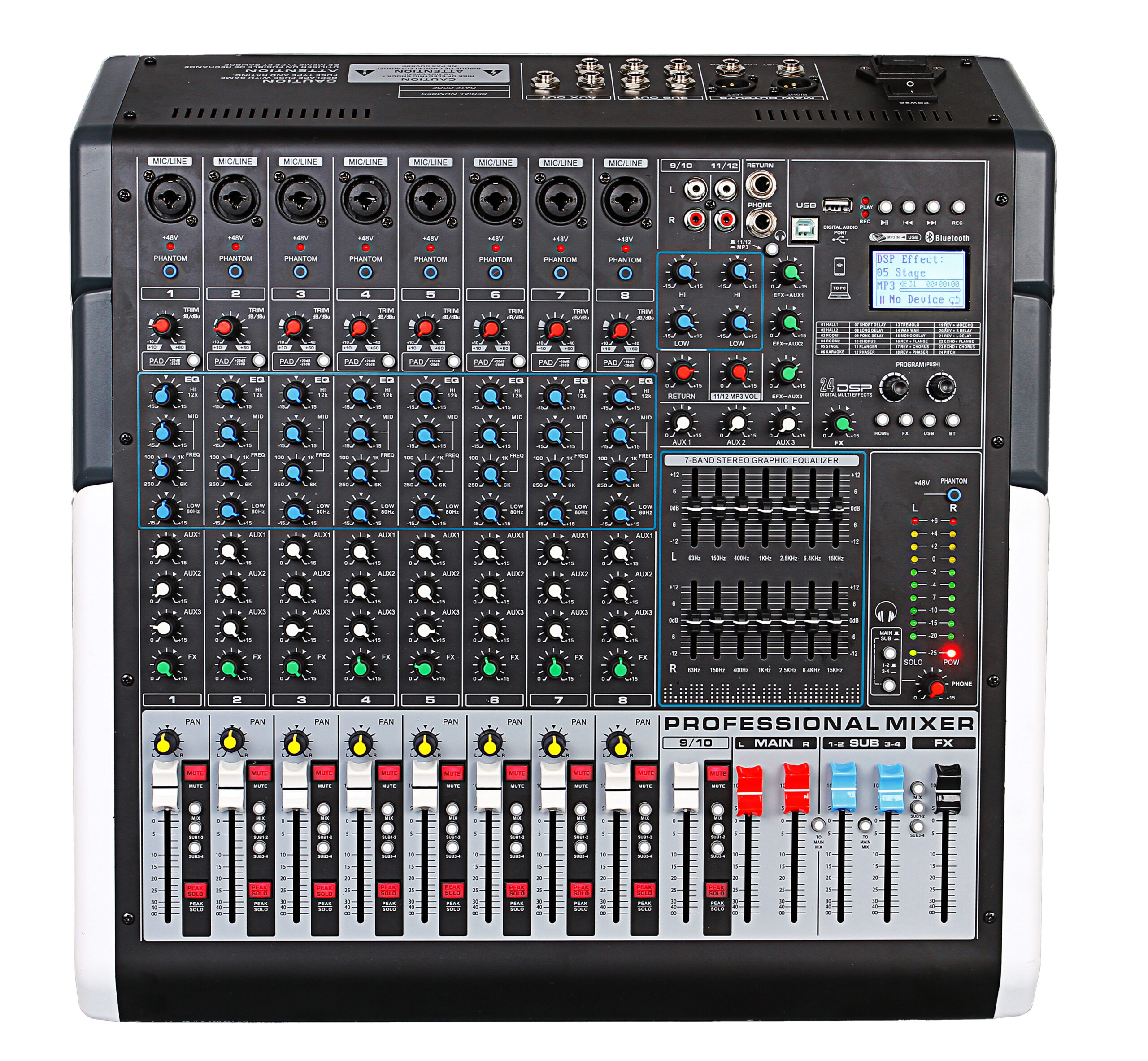

4-Group Mixer T2-MIX12/4FX

This audio mixer features 8 mono mic inputs, 2 stereo inputs, and a 4-band EQ per channel with sweepable mids. It includes 24 DSP effects, 4 group outputs, 3 AUX sends, and dual 7-band EQ for the main output. Additional features include 48V phantom power, an MP3 player with Bluetooth and recording, a 2.5-inch display, a built-in sound card, per-channel mute, and LED monitoring. It has a frequency response of 20Hz-20kHz, >90dB SNR, and 0.03% THD. The unit operates on 100-240V power and measures 45.5×47.5×12.5 cm, weighing 5.9 kg.
Categories: ,
Get Quote
Categories ,
Description
  •  8 mono microphone inputs, 2 stereo inputs
  •  4-band EQ per channel, with sweepable mid-frequency EQ adjustment
  •  Left and right main outputs, 3 AUX auxiliary outputs
  •  24 DSP effects, each effect individually adjustable
  •  4 group outputs
  •  48V phantom power with independent switches per channel
  •  Dual 7-band EQ adjustable for main output
  •  MP3 player with Bluetooth and recording function
  •  2.5-inch dot matrix display for MP3
  •  Built-in sound card function, connectable to a phone or computer via data cable
  •  Mute function per channel
  •  LED indicators for monitoring per channel
  •  FX effects assignable to AUX auxiliary outputs

Parameter
Parameter Specification
Phantom Power 48V
Signal-to-Noise Ratio (SNR) >90dB
Total Harmonic Distortion (THD) 0.03%
Gain Range 10dB to +20dB
Maximum Input Level 22dBu
Input Sensitivity
- MIC Input 60dB
- LINE Input 20dB
Equalization (EQ)
- High 12kHz / ±15dB
- Mid 250Hz–8kHz / ±15dB
- Low 80Hz / ±15dB
Frequency Response 20Hz-20kHz (+3dB)
Auxiliary Send Output Level 0dBu
Maximum Output Level 19dBu (1kW, THD=0.5%)
Headphone Output Max Input Level 19dBu / 150Ω (+25dBm)
Power Supply 100–240V 6A 250V
Net Dimensions 45.5 × 47.5 × 12.5 cm
Net Weight 5.9 kg
Gross Weight 7.1 kg
Donwload
T2-MIX12 4FX
