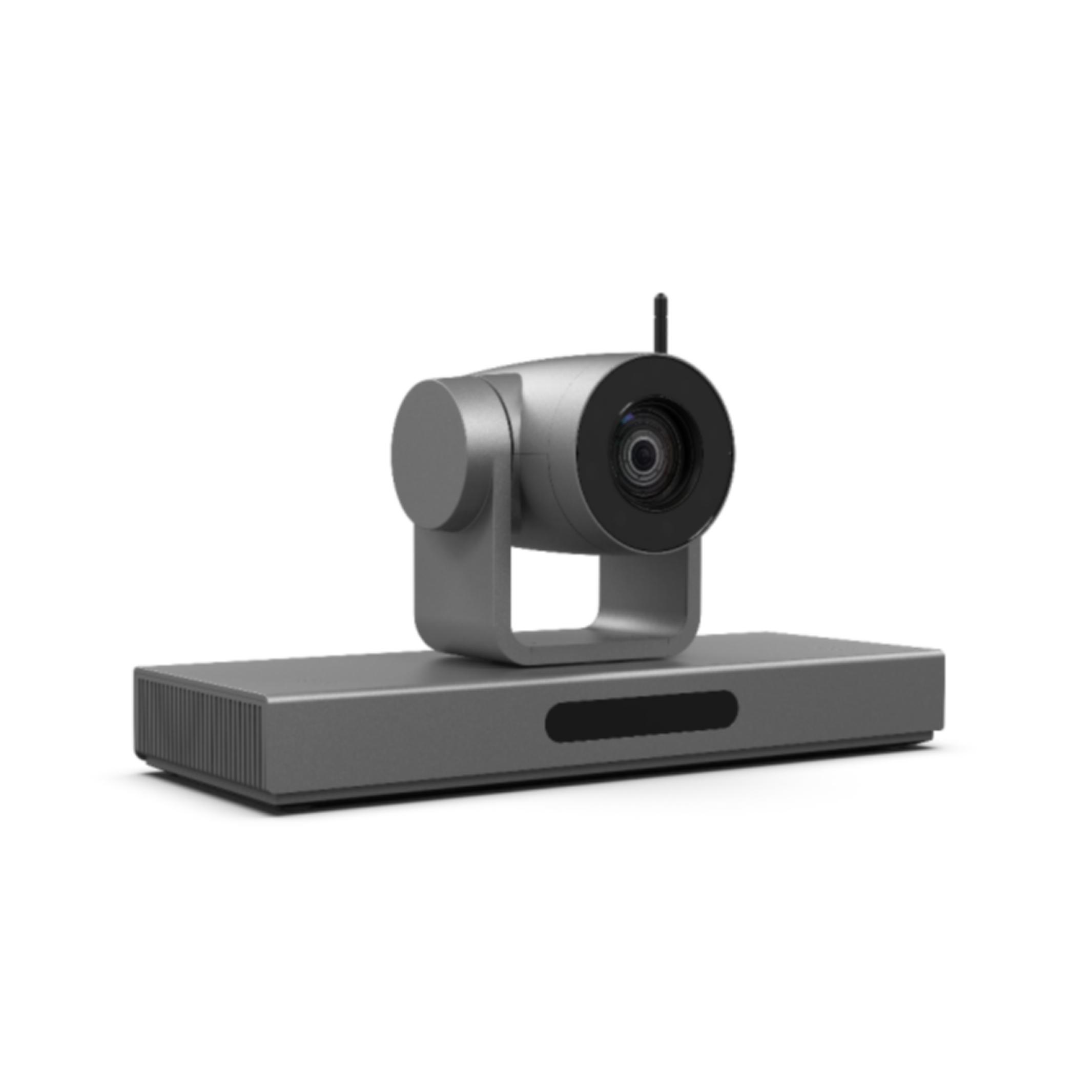

4K integrated terminal FT-ZD12-4A

This video conferencing terminal features a 12x optical zoom lens, a 78° wide viewing angle, and advanced noise suppression for superior audio-visual quality. It supports dual-screen display, wireless connectivity, and a fully open API for third-party applications. With powerful audio algorithms and easy installation, it’s ideal for professional video conferencing.
Categories:
Get Quote
Category Tags , , , ,
Description
  • Image sensor: 2.07 million high-quality CMOS image sensor
  • Wide-angle distortion-free lens: 78° wide viewing angle lens, optical zoom reaches 12 times
  • Wireless support: 2.4G / 5G dual-mode Wi-Fi, Bluetooth 5.0, convenient for customers to directly connect to wireless applications, such as wireless screen projection, Bluetooth speakers, etc.
  • Dual-screen display: supports dual-channel HDMI output, which can display the main and auxiliary streams in full screen respectively
  • Multiple video compression standards: supports H.265/H.264 video compression
  • Advanced focusing technology: Advanced auto-focusing algorithm enables the lens to complete auto-focusing quickly, accurately and stably
  • Low noise and high signal-to-noise ratio: Low noise CMOS effectively guarantees the ultra-high signal-to-noise ratio of the camera video, and adopts advanced 2D and 3D noise reduction technology to further reduce noise while ensuring image clarity
  • Fully open API: Fully open API supports the development of third-party applications, making it easy for customers to realize customized needs through secondary development
  • Silent PTZ: High-precision stepper motors and precision motor drive controllers are used to ensure that the PTZ runs smoothly and noise-free
    • Parameter
    System SOC, RK3588; RAM/ROM: 8G/32G
    Camera
    Image sensor 2.07 million pixel high-quality CMOS image sensor
    Lens angle of view D: 7.5° - 78.3°; H: 6.6° - 70.2°; V: 3.7° - 42°
    Zoom 12x optical zoom
    Video output Maximum output 1080P
    Audio
    Microphone Built-in 2x electret microphone;
    Audio processing Automatic echo cancellation (AEC), automatic gain control (AGC), automatic noise suppression (ANS)
    Controller Infrared remote control
    Encoding and decoding capabilities
    Encoding Supports 8K@30Hz in theoretical peak state
    Decoding Supports 8K@60Hz in theoretical peak state
    Physical interface
    Display interface 2x HDMI OUT, HDMI 2.0, support dual-screen display
    Content input 1x HDMI IN, HDMI 2.0
    USB interface 2x USB 3.0; 1x Micro USB debugging port
    Wireless interface 2.4G / 5G dual-mode Wi-Fi, Bluetooth 5.0
    Audio interface 1x 3.5mm linear output; 1x LINE IN input, 3-pin Phoenix terminal; 1x MIC IN input, 3-pin Phoenix terminal (with phantom power)
    Network interface 1x 10/100M RJ45 network port
    Power interface HEC3800 power socket (DC12V)
    Wall mount bracket optional wall mount bracket/ceiling mount bracket
    Donwload
    FT-ZD12-4A
