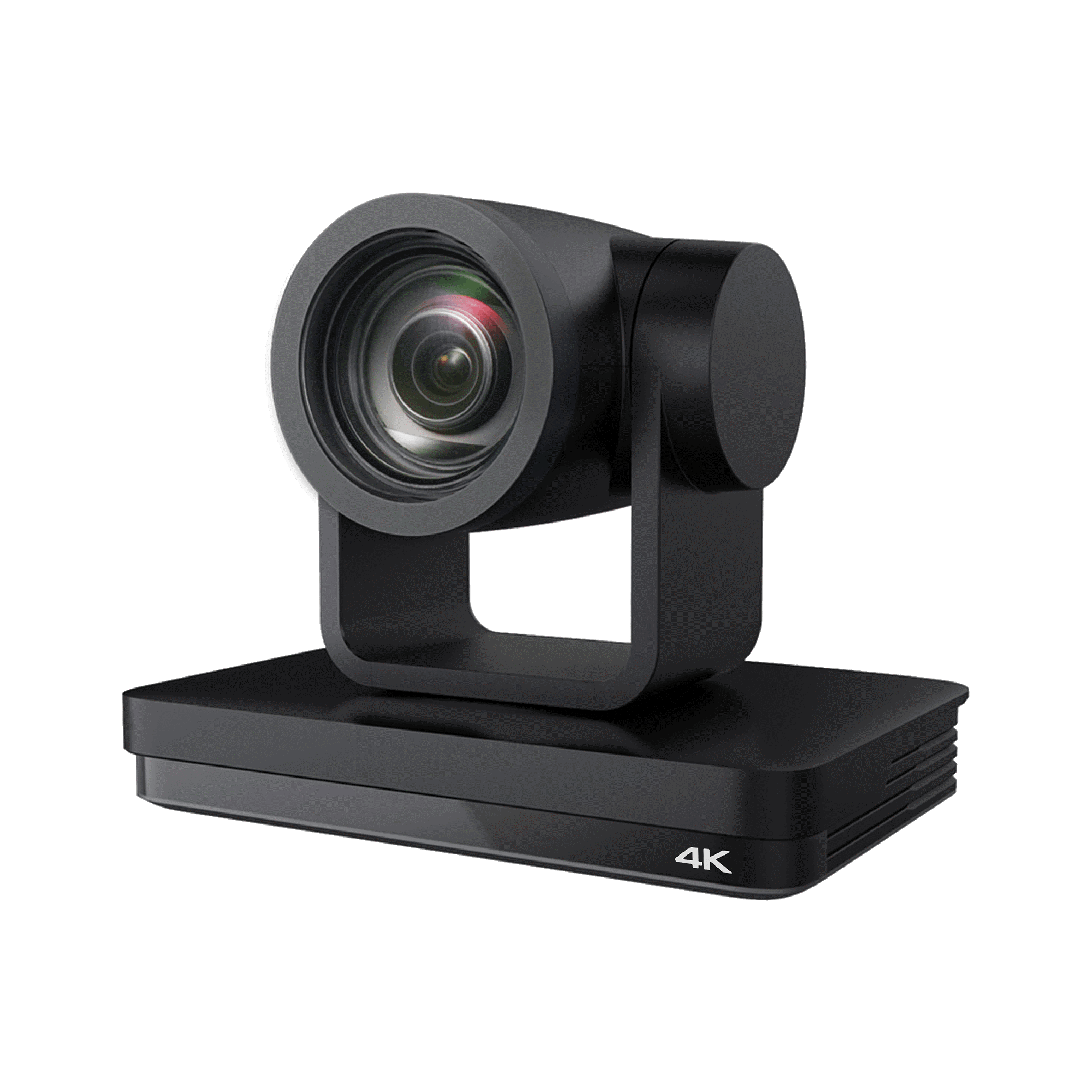

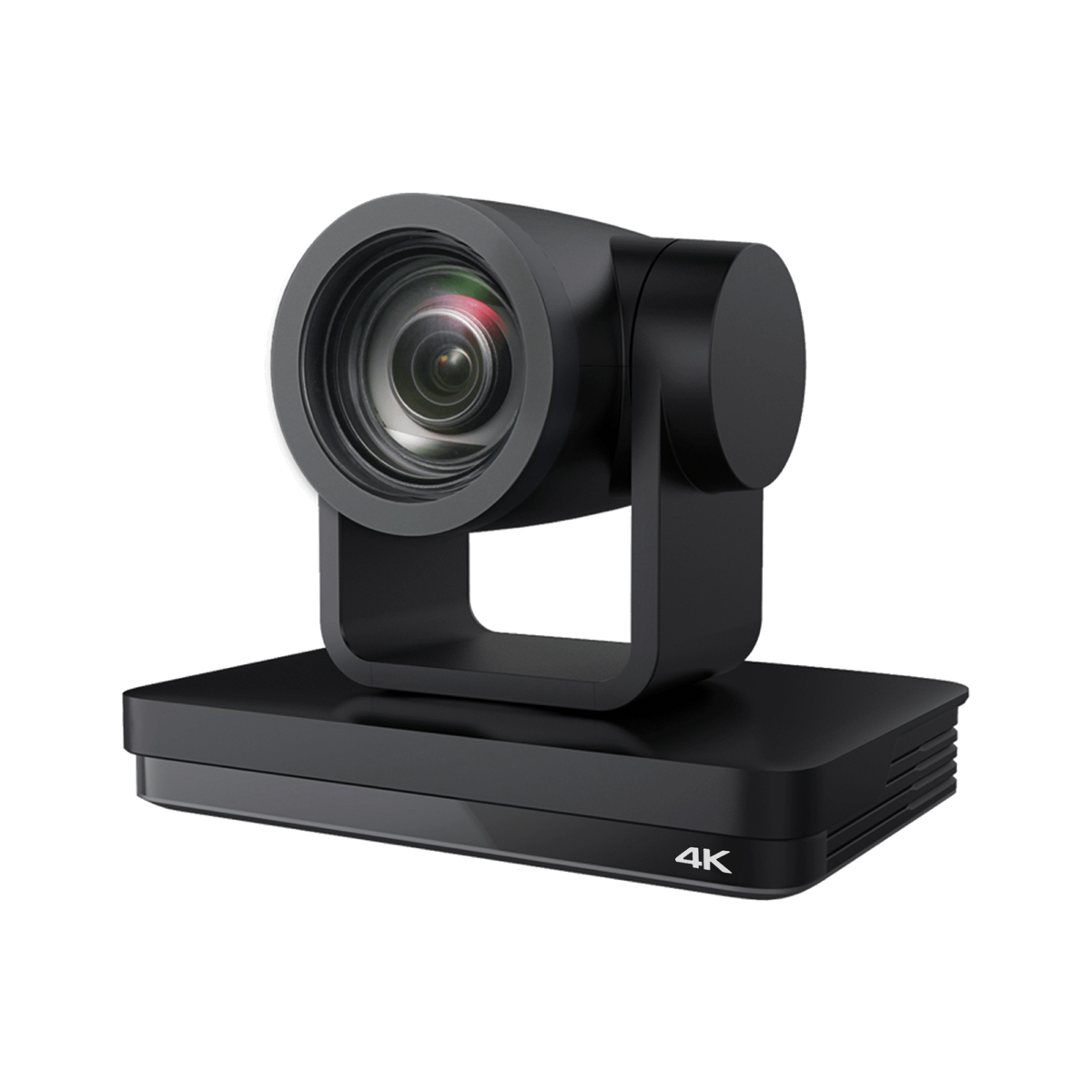

4K Ultra HD Camera FT-W12-HA

This 4K ultra-HD camera features a 12x optical zoom, advanced autofocus, and AI humanoid tracking for superior image clarity and precision. It supports multiple interfaces (HDMI, SDI, USB3.0, LAN with POE) and protocols (H.265, RTMP, ONVIF) for versatile applications such as conferencing, education, and telemedicine. Its silent PTZ mechanism and robust network capabilities make it ideal for professional environments.
Categories:
Get Quote
Category Tags , , , ,
Description
  • 4K ultra-high-definition image: using 8.29 million pixel high-quality SONY CMOS image sensor, the maximum resolution can reach 4K (3840×2160., and the 4K output frame rate can reach up to 30 frames/second. Presenting clear and realistic ultra-high-definition video, vividly showing the expressions and movements of people, and providing superb clarity and resolution image quality
  • Optical zoom lens: 12x 70° optical zoom lens
  • Leading autofocus technology: advanced autofocus algorithm enables the lens to complete autofocus quickly, accurately and stably
  • Low noise and high signal-to-noise ratio: low-noise CMOS effectively guarantees the ultra-high signal-to-noise ratio of the camera video. The use of advanced 2D and 3D noise reduction technology further reduces noise while ensuring image clarity
  • Multiple video output interfaces: support HDMI, SDI, USB3.0, wired LAN interface; support POE power supply, USB3.0 supports dual stream
  • Multiple audio and video compression standards: support YUY2, MJPEG, H.264, H.265, NV12 video encoding formats, MJPEG, H.264, H.265 support up to 3840×2160 resolution 30 frames/second compression; support AAC, MP3, G.711A audio compression
  • Audio input interface: support AAC, MP3, G.711A audio encoding, AAC, MP3 encoding support 16000, 32000, 44100, 48000 sampling frequencies
  • Built-in gravity sensor: built-in gravity sensor, support pan-tilt automatic flip function, convenient engineering installation
  • Multiple network protocols: support ONVIF, GB/T28181, RTSP, RTMP, VISCA OVER IP, IP VISCA, RTMPS, SRT protocols; support RTMP push mode, easily connect to streaming media servers (Wowza, FMS.; support RTP multicast mode
  • Control interface: RS422 is compatible with RS485, RS232-IN, RS232-OUT, and the RS232 interface supports cascading
  • Multiple control protocols: support VISCA, PELCO-D, PELCO-P protocols, and support automatic identification protocols
  • Super silent PTZ: adopts high-precision stepper motors and precision motor drive controllers to ensure that the PTZ runs smoothly at low speed and without noise
  • Low-power sleep function: supports low-power sleep/wake-up, and the power consumption is less than 400mW when in sleep
  • Multiple preset positions: support up to 255 preset positions (the remote control is set to call 10).
  • Multiple remote controls: Users can choose infrared remote controls or wireless remote controls according to the environmental conditions used. 2.4G wireless remote controls are not affected by angle, distance, or infrared interference. Supports remote control signal transparent transmission function, which is convenient for back-end devices to use
  • AI humanoid tracking, built-in high-speed processor and exclusive advanced image processing and analysis algorithms. Users can choose real-time tracking and regional tracking according to the use environment, and can switch tracking objects by clicking on the character object box on the web page
  • Many application places: distance education, teaching recording and broadcasting, conference system, remote training, telemedicine, trial system, emergency command system, etc
    • Parameter
    Image sensor 1/2.8-inch high-quality CMOS sensor
    Effective pixels 2.07 million, 16:9
    Video signal HDMI/SDI/Interface video format: 1080P60/50/30/25/59.94/29.97; 1080I60/50/59.94; 720P60/50/59.94
    U2 interface video format 320x240/352x288/640x360/640x480/704x576/704x480/720x576/800x448/800x600/960x540/1024x576/ 1024x768/1280x720/1920x1080P30/25/20/15/10/5
    Lens optical zoom 12x optical zoom
    f=3.9~46.8mm 12x optical zoom
    f=4.1~49.2mm 20x optical zoom
    f＝5.05~101mm
    Viewing angle 6.6° (narrow angle) 70.4° (wide angle): 6.57° (narrow angle) 70.28° (wide angle): 3.45° (narrow angle) 60.04° (wide angle)
    Aperture coefficient F1.8 – F2.4: F1.8 – F2.68: F1.8 – F2.9
    Digital zoom X10
    Minimum illumination 0.5Lux (F1.8, AGC ON)
    Digital noise reduction 2D & 3D digital noise reduction
    White balance Auto/Manual/One-touch white balance/ 3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K
    Focus Auto/Manual/One-touch focus
    Aperture Auto/Manual
    Electronic shutter Auto/Manual
    Backlight compensation On/Off
    Dynamic range Off/Dynamic level adjustment
    Video adjustment Brightness, contrast, sharpness, horizontal flip, vertical flip (displayed when auto flip is off), black and white mode, gamma curve, electronic zoom, DCI, lens distortion correction
    Signal-to-noise ratio >55dB
    Table 2-3 Interface function performance parameter table
    Interface function performance
    Product interface HDMI, SDI, LAN (support POE), USB2.0, A-IN, RS232-IN,
    RS232-OUT, RS 485, rotary dial, DC12V power supply
    Video output interface HDMI, SDI, LAN, USB2.0
    Video compression format LAN interface supports: H.264, H.265
    USB 2.0 interface supports MJPG, H264, H.265, YUY2, NV12
    Audio input interface dual-channel 3.5mm linear input
    Audio output interface HDMI, LAN, USB2.0
    Audio compression format AAC, MP3, G.711A
    Network interface 100M network port, POE power supply optional, support audio and video output
    Network protocol RTSP, RTMP, ONVIF, GB/T28181; support network VISCA control protocol
    Support remote upgrade , remote restart, remote reset
    Control interface RS232-IN, RS232-OUT, RS485
    Serial communication protocol VISCA/Pelco-D/Pelco-P; support baud rate 115200/38400/9600/4800/2400
    USB communication protocol UVC (video communication protocol), UAC (audio communication protocol)
    Power interface HEC3800 power socket (DC12V)
    Power adapter input AC110V~AC220V ; Output DC12V/1.5A
    Input voltage DC12V±10%
    Input current <1A
    Power consumption of the whole machine <12W
    Table 2-4 PTZ parameter table
    PTZ parameters
    Horizontal rotation -170°～+170°
    Pitch rotation -30°～+90°
    Horizontal control speed 0.1°/s～100°/s
    Pitch control speed 0.1°/s～30°/s
    Preset speed horizontal: 60°/s, pitch: 30°/s
    Number of preset positions Users can set up to 255 preset positions (10 for remote control)
    Table 2-5 Other parameter table
    Other parameters
    Storage temperature -10℃～+60℃
    Storage humidity 20%～95%
    Operating temperature -10℃～+50℃
    Operating humidity 20%～80%
    Dimensions 258 (length) mm×172 mm (width)×169 mm (height)
    Weight (approx.) about 1.54 kg
    Usage environment indoor
