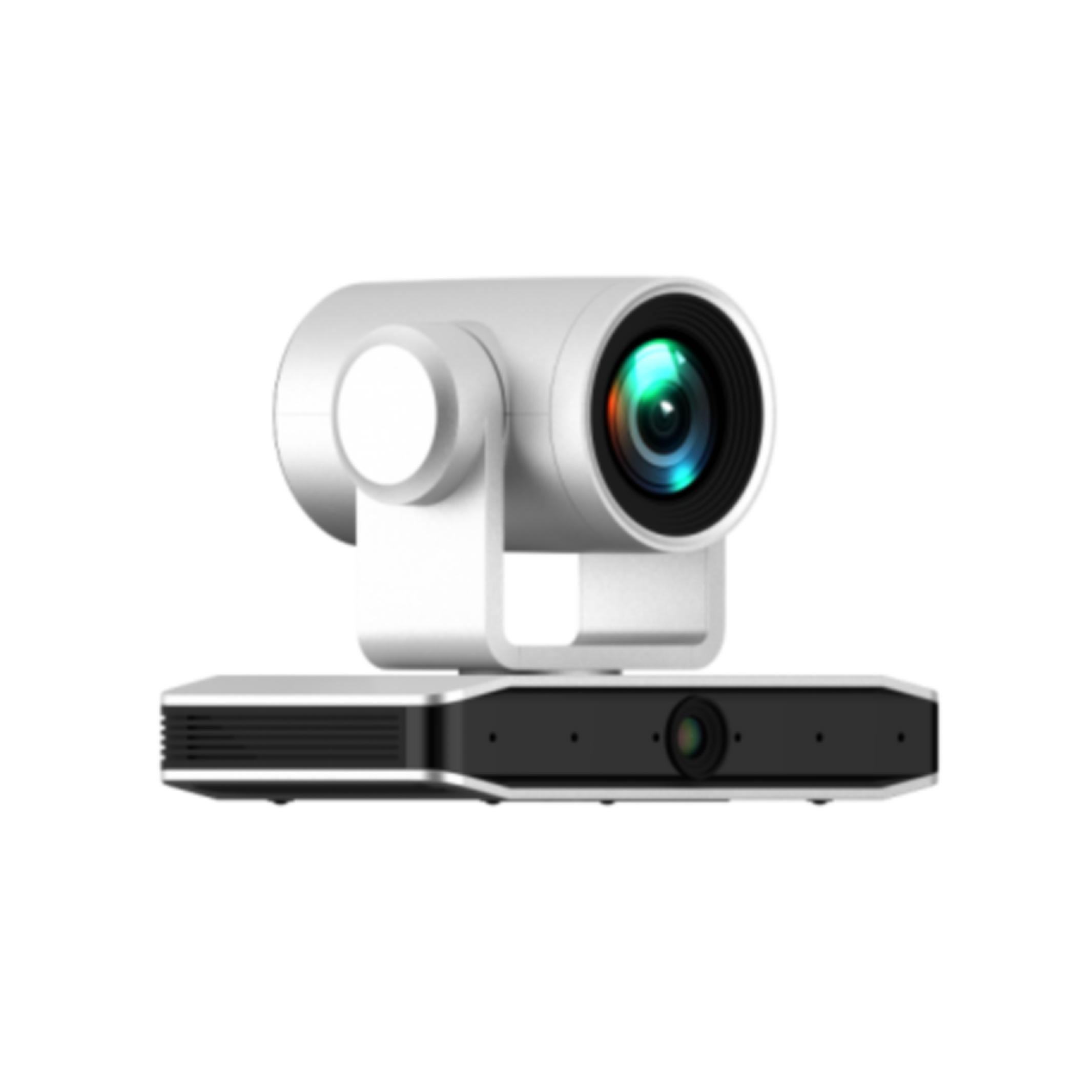

4K Ultra HD Camera FT-W12-HC

This camera offers 4K resolution at 30fps with a 12x optical zoom lens and advanced autofocus. It supports multiple video and audio compression formats, AI-powered intelligent framing and voice tracking, and various connectivity options, making it ideal for professional applications like education, remote conferencing, and telemedicine.
Categories:
Get Quote
Category Tags , , , ,
Description
  • 4K ultra-high-definition image: Adopting 8.5 million pixel high-quality SONY CMOS image sensor, the maximum resolution can reach 4K (3840×2160., and the 4K output frame rate can reach up to 30 frames/second. Presenting clear and realistic ultra-high-definition video, vividly showing the expressions and movements of people, and providing superb clarity and resolution image quality
  • Optical zoom lens: 12x 80.5° optical zoom lens
  • Leading autofocus technology: Advanced autofocus algorithm enables the lens to complete autofocus quickly, accurately and stably
  • Low noise and high signal-to-noise ratio: Low noise CMOS effectively guarantees the ultra-high signal-to-noise ratio of the camera video. The use of advanced 2D and 3D noise reduction technology further reduces noise while ensuring image clarity
  • Multiple video output interfaces: support HDMI, USB3.0, and wired LAN interfaces; support POE power supply, and USB3.0 supports dual streams
  • Multiple audio and video compression standards: support YUY2, MJPEG, H.264, H.265, and NV12 video encoding formats, MJPEG, H.264, and H.265 support up to 3840×2160 resolution 30 frames/second compression; support AAC, MP3, and G.711A audio compression
  • Audio input interface: support AAC, MP3, and G.711A audio encoding, and AAC and MP3 encoding support 16000, 32000, 44100, and 48000 sampling frequencies
  • Built-in gravity sensor: built-in gravity sensor, support pan-tilt automatic flip function, convenient for engineering installation
  • Multiple network protocols: support ONVIF, GB/T28181, RTSP, RTMP, VISCA OVER IP, IP VISCA, RTMPS, SRT protocols; support RTMP push mode, easily connect to streaming media servers (Wowza, FMS.; support RTP multicast mode
  • Control interface: RS232-IN
  • Multiple control protocols: support VISCA, PELCO-D, PELCO-P protocols, support automatic identification protocols
  • Super silent PTZ: adopts high-precision stepper motor and precision motor drive controller to ensure that the PTZ runs smoothly at low speed and without noise
  • Low power sleep function: support low power sleep/wake-up, power consumption is less than 400mW when in sleep
  • Multiple preset positions: support up to 255 preset positions (the remote control is set to call 10.
  • Intelligent framing: built-in high-speed processor and built-in face detection algorithm, automatically detect participants and provide ideal framing
  • Intelligent voice positioning and tracking: built-in 6 omnidirectional microphone array, intelligent sound source positioning algorithm, can locate the speaker in real time, voice tracking can be set on/off
  • Many application places: distance education, teaching recording, conference system, remote training, telemedicine, trial system, emergency command system, etc
    • Parameter
    Image sensor 1/2.8 inch high-quality CMOS sensor
    Effective pixels 8.29 million, 16:9
    Video signal HDMI:4KP30,4KP25, 1080P30, 1080P25, 1080P29.97
    USB3.0 output supports video formats including Main stream
    YUY2/NV12:   1920×1080/1280×720/1024×576/800×600/800×448/640×480/640×360/480×270/320×180@ 30/25/20/15/10/5fps
    MJPG/H264 1920×1080/1600×896/1280×720/1024×576/960×540/800×600/800×448/720×576/720×480/640×360/640×480 /480×270/352×288/320×240@30/25/20/15 /10/5fps
    Sub-stream
    YUY2/NV12 1920×1080/1280×720/1024×576/800×600/800×448/640×360/640×480/480×270/320×180@30/25/20/15/10/5fps
    MJPG/H264 1920×1080/1600×896/1280×720 /1024×576/960×540/800×600/800×448/720×576/720×480/640×360/640×480/480×270/352×288/320×240@30/25/20/15/10/5fps
    Close-up camera parameters 12x optical zoom
    Viewing angle Horizontal: 7.6° (narrow angle) ~ 80.5° (wide angle)
    Aperture factor F1.8 ～ F3.6
    Digital zoom X15
    Minimum illumination 0.5Lux (F1.8, AGC ON)
    Digital noise reduction 2D﹠3D digital noise reduction
    White balance automatic/manual/one-key white balance/specified color temperature
    Focus mode automatic/manual/one-key focus
    Exposure mode automatic, manual, shutter priority, aperture priority, brightness priority
    Aperture F1.8 ～ F11, CLOSE
    Shutter speed 1/25～1/20000
    Backlight compensation on/off
    Dynamic range off, 1 ～ 8
    Video adjustment brightness, chroma, saturation, contrast, sharpness, black and white mode, gamma curve
    Signal-to-noise ratio >50dB
    Panoramic lens fixed focus lens
    Viewing angle 110.2°\101.8°\69.5° (D\H\V)
    Aperture F2.0±5%
    Focal length F=1.89mm
    Interface function performance
    Product interface HDMI, LAN (support POE), USB3.0, LINE-IN, RS232-IN, DC12V power supply, power switch
    Video output interface HDMI, LAN, USB3.0
    Video compression format LAN interface supports: H.264, H.265
    USB 3.0 interface supports MJPG, H264, YUY2, NV12
    Audio input interface dual-channel 3.5mm linear input
    Audio output interface LAN
    Audio compression format AAC, MP3, G.711A
    Network interface 10M/100M adaptive Ethernet port, supports POE power supply, supports audio and video output
    Network protocol RTSP, RTMP, ONVIF, GB/T28181, VISCA OVER IP, IP VISCA, RTMPS, SRT, support remote upgrade, remote restart, remote reset
    Control interface RS232-IN
    Serial communication protocol VISCA/Pelco-D/Pelco-P; support baud rate 115200/38400/9600/4800/2400
    USB communication protocol UVC (video communication protocol), UAC (audio communication protocol)
    Power interface HEC3800 power socket (DC12V)
    Power adapter input AC110V~AC220V; output DC12V/2.5A
    Input voltage DC12V±10%
    Input current <1A
    Total power consumption <12W
    PTZ parameters
    Horizontal rotation  -110°～+110°
    Pitch rotation  -30°～+30°
    Horizontal control speed 0.1°/s～100°/s
    Tilt control speed 0.1°/s～70°/s
    Preset speed horizontal: 78.8°/s, pitch: 31.7°/s
    Number of presets Users can set up to 255 presets (10 for the remote control)
    Table 1-4 Other parameter table
    Other parameters
    Storage temperature -10℃～+60℃
    Storage humidity 20%～95%
    Working temperature -10℃～+50℃
    Working humidity 20%～80%
    Dimensions 220 (length) mm×136mm (width)×159mm (height)
    Weight (approx.) about 1.7kg
    Usage environment indoor
    AI function
    Intelligent framing built-in high-speed processor and built-in face detection algorithm, automatically detect participants and provide ideal framing, the farthest framing distance can reach 6~7 meters
    Intelligent voice positioning tracking built-in 6 omnidirectional microphone array, intelligent sound source positioning algorithm, can locate the speaker's position in real time, voice tracking can be set on/off, the farthest pickup distance can reach 6~7 meters
