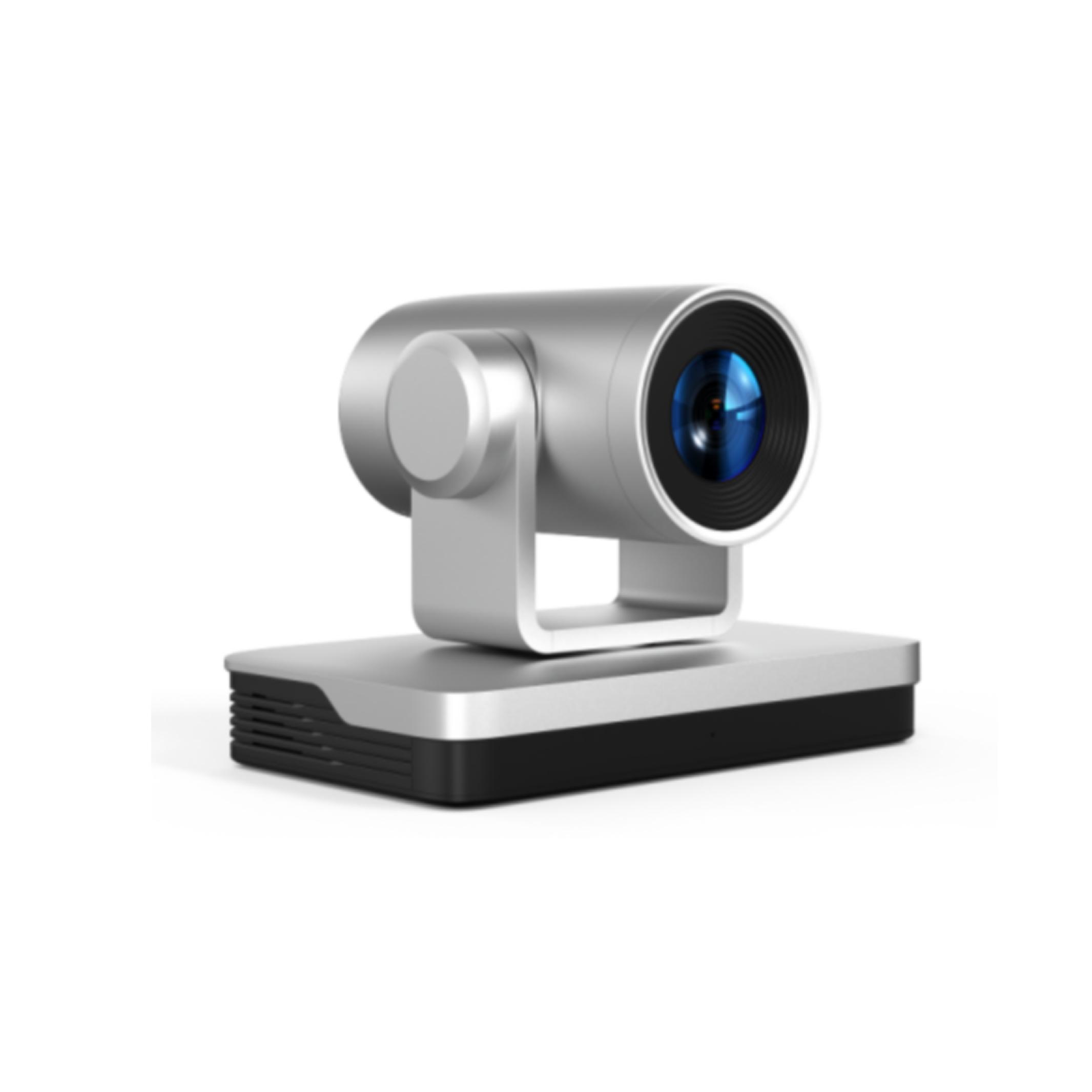

4K Ultra HD Camera FT-W31-HB

This UHD 4K camera features a 31x optical zoom lens and supports 4K@60fps resolution with dual-stream output. It includes advanced AI humanoid tracking, multiple video/audio compression formats, and a wide range of connectivity options, making it suitable for various professional applications such as conferences and broadcasting.
Categories:
Get Quote
Category Tags , , , ,
Description

  • 4K ultra-high definition: using SONY high-quality CMOS image sensor, the highest resolution supports 4K@60fps, and the output frame rate is up to 60 frames per second; presenting clear and realistic ultra-high-definition video, vividly showing the expressions and movements of the characters, and providing superb clarity and resolution image quality
  • Dual stream: USB can support the simultaneous output of the main stream and sub-stream, which can meet the needs of the near end and the far end at the same time
  • Optical zoom lens: 31X optical zoom 59° wide-angle lens
  • Rich and complete interfaces: support HDMI2.0, SDI, USB 2.0, LAN (POE, NDI optional., HDMI, USB, LAN can output 4K audio and video at the same time
  • Autofocus technology: Advanced autofocus algorithm enables the lens to complete autofocus quickly, accurately and stably
  • Low noise and high signal-to-noise ratio: Low noise CMOS effectively guarantees the ultra-high signal-to-noise ratio of the picture. The use of advanced 3D noise reduction technology further reduces noise while ensuring image clarity
  • Multiple audio and video compression standards: LAN interface supports H.265/H.264 video compression; USB2.0 interface supports MJPG, H.264, YUY2, NV12, H.265; A-IN interface supports AAC audio compression encoding
  • Audio input interface: supports 48000 sampling frequency and AAC audio encoding
  • Multiple network protocols: support ONVIF, GB/T28181, RTSP, RTMP, SRT, NDI (optional., Dante AV-H (optional. protocols; support RTMP push mode, easily connect to streaming media servers (Wowza, FMS.; support RTP multicast mode, support network full command VISCA control protocol
  • Control interface: RS422 (compatible with RS485. output, RS232 input\output; RS232 supports cascading, which is convenient for engineering installation and use
  • Multiple control protocols: support VISCA, PELCO-D, PELCO-P protocols, and support automatic identification protocols
  • Multiple preset positions: support up to 255 preset positions (remote control setting call is 10.
  • AI humanoid tracking, built-in high-speed processor and exclusive advanced image processing and analysis algorithms, users can choose real-time tracking and regional tracking according to the use environment
  • Multiple application places: conference, education, medical, government affairs, cloud video, collaborative office, multimedia integration, emergency command, broadcasting, justice, public security, military and other system applications
    • Parameter
    Optical zoom 31x optical zoom
    Focal range f=6.91 mm～ 214.21 mm ±5%
    Field of view Horizontal: 1.98˚ (narrow angle)～ 59˚ (wide angle) Vertical: 1.12˚ (narrow angle)～ 34.14˚ (wide angle)
    Aperture coefficient F1.35～F4.6±5%
    Image sensor 1/1.8 inch SONY CMOS image sensor
    Effective pixels 8.29M effective pixels 16:9
    Video signal HDMI output Supported video formats: 3840*2160P60/50/25/59.94/29.97; 1080P60/50/ 30/25/59.94/29.97; 1080I60/50/59.94; 720P60/50/59.94
    SDI output supports video formats 1080P60/50/30/25/59.94/29.97; 1080I60/50/59.94; 720P60/50/59.94
    USB2.0 output supports video formats
    MJPG 3840*2160/1920*1080/1280*720 /1024*768 /1024*576/800*600/720*576/720*480/704*576/640*480 /640*360 /352*288/320*240P30; H.264: 3840*2160/1920*1080/1280*720 /1024*768 /1024*576/800*600/720*576/720*480/704*576/640*480 /640*360 /35 2*288/320*240P30; H.265: 1920*1080/1280*720 /1024*768 /1024*576/800*600/720*576/720*480/704*576/640*480 /640*360 /352*288/320*240P30
    YUY2 800*448 /720*480P25; 640*360 /432*240P30
    NV12 800*448P25; 640*480 /640*360 /432*240P30
    Minimum illumination 0.05Lux (F1.8, AGC ON)
    Digital noise reduction 3D digital noise reduction
    White balance mode  automatic/manual/one-button white balance/specified color temperature
    Focus mode automatic/manual/one-button focus
    Exposure mode automatic, manual, shutter priority, aperture priority, brightness priority
    Aperture parameter F1.8 ~ F11, CLOSE
    Shutter speed 1/25～1/10000
    Backlight compensation on/off
    Dynamic range off/dynamic level adjustment
    Video adjustment brightness, chroma, saturation, contrast, sharpness, black and white mode
    Signal-to-noise ratio ≥50dB
    AI function performance parameters
    Real-time tracking The maximum tracking distance can reach 6 to 7 meters, and the speaker can walk at a speed of 5 to 6 miles per hour
    Regional tracking Supports setting 4 tracking areas, supports horizontal -110°～+110°, vertical -30°～+30° setting area
    Interface function performance
    Product interface HDMI, SDI, LAN (support POE+), USB2.0, A-IN, RS232-IN, RS232-OUT, RS422 (compatible with RS485), rotary dial, DC12V power supply, HDI丨HX3 (optional), Dante (optional), power switch
    Video compression format LAN interface supports: H.264, H.265
    USB 2.0 interface supports MJPG, H.264, H.265, YUY2, NV12
    Audio input interface dual-channel 3.5mm linear input
    Audio output interface HDMI, LAN, USB2.0, SDI
    Audio compression format AAC
    Network interface 10M/100M/1000M adaptive Ethernet port, supports POE+ ((802.3at) power supply, supports audio and video output
    Network protocol RTSP, RTMP, ONVIF, GB/T28181, SRT, NDI (optional), Dante AV-H (optional); supports network VISCA control protocol
    Control interface RS232-IN, RS232-OUT, RS422 compatible with RS485
    Serial communication protocol VISCA/Pelco-D/Pelco-P; supports baud rate 115200/38400/9600/4800/2400
    USB communication protocol UVC (video communication protocol), UAC (audio communication protocol)
    Power interface HEC3800 power socket (DC12V)
    Power adapter input AC110V~AC220V; output DC12V/2.5A
    Input voltage DC12V±10%
    Input current <1A
    Total power consumption <12W
    Dante AV-H
    Codec H.264 codec by SoC
    Video format 1920*1080/1280*720P60/50/30/25
    Video stream unicast or multicast
    Delay ≤120ms at 1080p60
    Bandwidth 4-8Mbps at 1080p60
    PTZ parameters
    Horizontal rotation -110°～+110°
    Tilt rotation -30°～+30° :-27°～+27°
    Horizontal control speed 0.1°/s～100°/s
    Tilt control speed 0.1°/s～70°/s
    Preset speed horizontal: 78.8°/s, pitch: 31.7°/s
    Number of presets Users can set up to 255 presets (10 for remote control)
    Other parameters
    Storage temperature -10℃～+60℃
    Storage humidity 20%～95%
    Working temperature -10℃～+50℃
    Working humidity 20%～80%
    Dimensions 220 (length) mm×144 mm (width)×159 mm (height)
    Weight (approx.) about 1.7 kg
    Donwload
    FT-W31-HB
