| Image Sensor |
| Parameter |
Specification |
| Sensor Type |
1/1.8" CMOS |
| Effective Pixels |
8.3 MP |
| Optical Zoom |
20X |
| Digital Zoom |
12X |
| Video Resolution |
2160P60/59.94/50/29.97/25; 1080P60/59.94/50/30/29.97/25; 1080i60/59.94/50; 720P60/59.94/50 |
| Focal Length |
f = 7.1 ~ 141.3 mm |
| Horizontal Field of View |
3.6°(T) ~ 59.2°(W) |
| Aperture Range |
F1.61 ~ F5.19 |
| Minimum Illumination |
0.05 lux (F1.61) |
| Digital Noise Reduction |
2D & 3D Digital NR |
| White Balance |
Manual / Auto / Indoor / Outdoor / One-Push WB / 3000K / 4000K / 5000K / 6500K |
| Focus Mode |
Manual / Auto |
| Iris Mode |
Manual / Auto |
| Backlight Compensation |
Levels 1-7 / Off |
| Image Adjustments |
Brightness, Chroma, Saturation, Contrast, Sharpness |

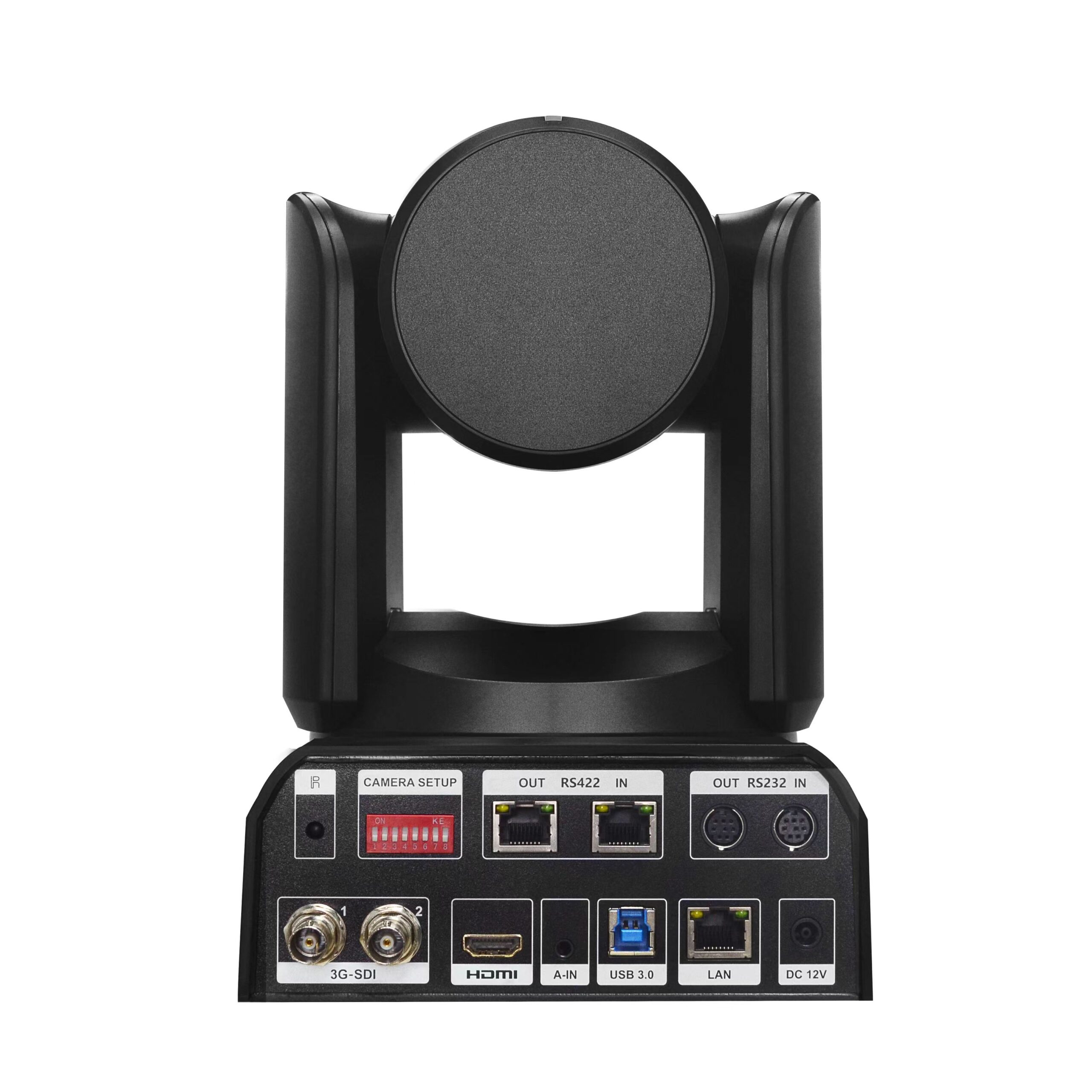

| Interfaces |
| Parameter |
Specification |
| Video Interfaces |
HDMI 2.0, 3G-SDI ×2 or 12G-SDI ×2, RJ45, USB 3.0, SDVoE (Optional) |
| Video Compression |
H.264, H.265, MJPEG |
| Control Interfaces |
RS-232 (with RS232 loop-out), RS-422 (with RS422 loop-out), RJ45 (UDP) |
| Control Protocols |
VISCA / PELCO-D / PELCO-P / VISCA Over IP / ONVIF / UVC (USB only) |
| Communication Baud Rate |
2400/4800/9600/19200/38400 bps |
| Audio Input |
Dual-channel 3.5mm Line-in |
| Audio Compression |
AAC, G711A, G711U |
| Network Interface |
1000M Ethernet (10/100BASE-TX) |
| Network Protocols |
RTSP, RTMP, ONVIF, NDI |
| Power Interface |
DC-038 Power Socket (DC 12V) |
| Pan-Tilt Parameters |
| Parameter |
Specification |
| Pan Rotation Range |
-173° ~ +173° |
| Tilt Rotation Range |
-30° ~ +90° |
| Pan Rotation Speed |
0.1 ~ 100°/s |
| Tilt Rotation Speed |
0.1 ~ 80°/s |
| Preset Positions |
Up to 255 |
| Other Specifications |
| Parameter |
Specification |
| Power Adapter |
Input: AC 100V~240V / Output: DC 12V / 2A |
| Input Voltage |
DC 12V |
| Power Consumption |
15W (Max) |
| Storage Temperature & Humidity |
-10°C ~ +60°C / 20% ~ 95% |
| Operating Temperature & Humidity |
-10°C ~ +50°C / 20% ~ 80% |
