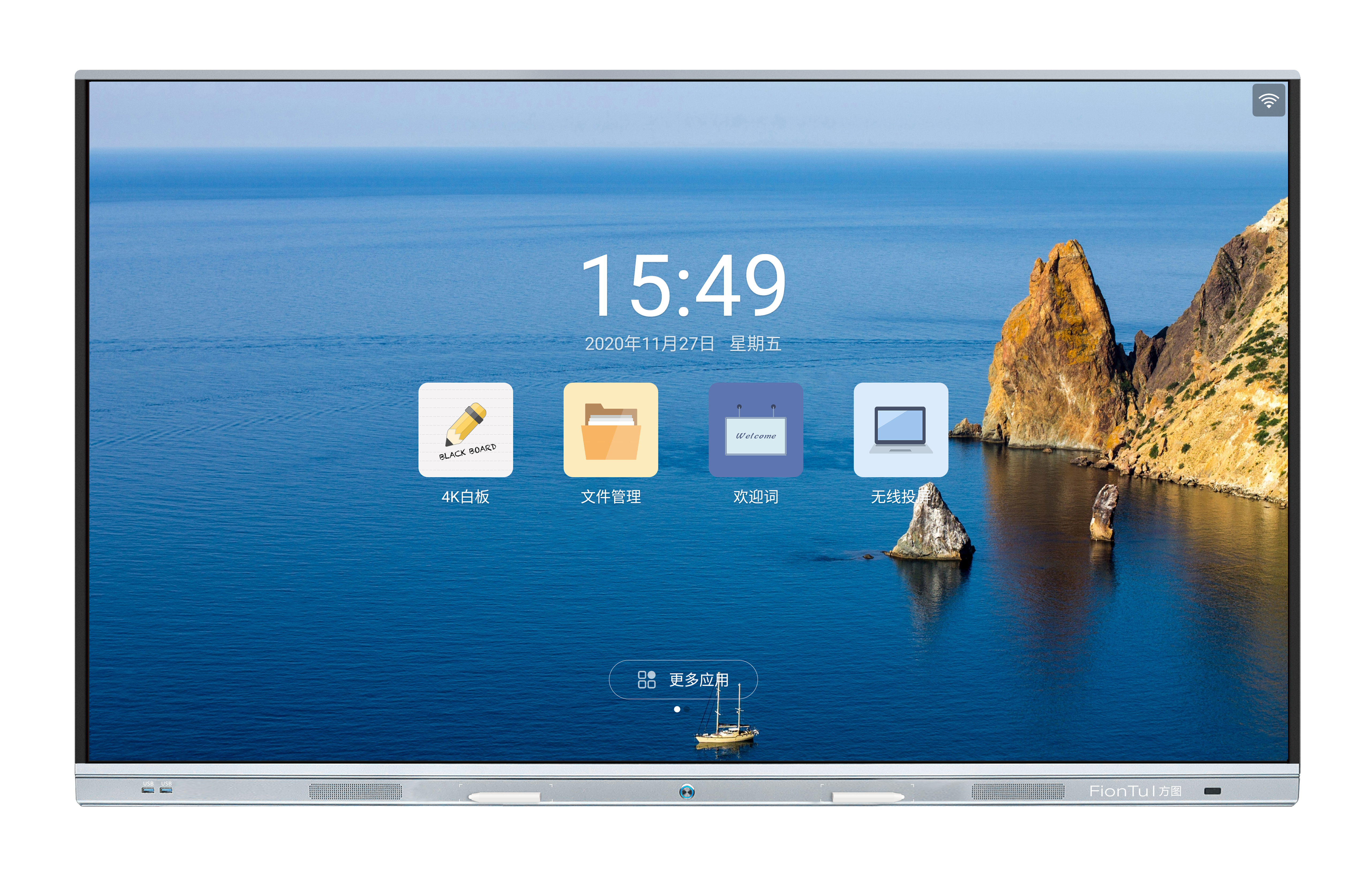

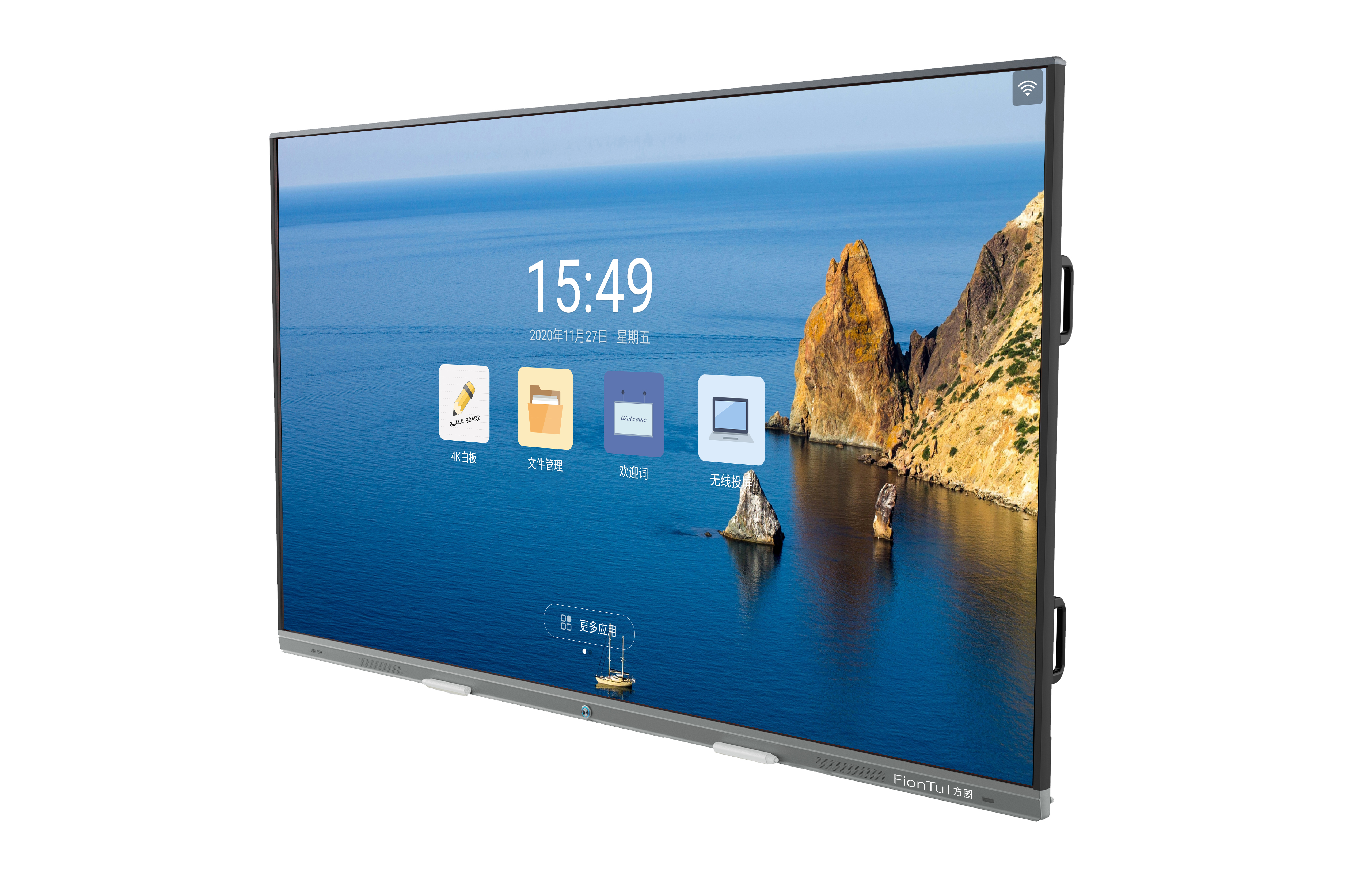

65-inch touch all-in-one computer FT-7101-65T

This dual-system smart electronic whiteboard features a 65-inch 4K display with an ultra-narrow frame and integrated touch technology, supporting up to 20 touch points and various interactive functions. It runs on an Amlogic T982 motherboard with a quad-core A55 CPU and includes multiple connectivity options, allowing for seamless integration in educational and professional settings. The device offers advanced features like wireless screen sharing, ambient light sensing, and an intuitive UI designed for enhanced human-computer interaction.
Categories:
Get Quote
Category Tags , , , ,
Description
Product Description
Feature Details
Product Series PC + Android dual system smart electronic whiteboard
Mainboard Amlogic T982 with Quad-core A55 CPU & Dual-core G52 GPU
Operating System Android 11.0 Embedded OS
UI System Industry-customized human-machine interaction system
Touch Interaction Full-featured interactive touch operation
Applications Suitable for teaching, training, and meeting applications

Product Features
Feature Details
Design Ultra-narrow bezel, rounded corners, dual magnetic pen holder at the bottom, business-oriented design
Display 4K high-definition, precise color reproduction
Glass Mohs 7-level anti-glare tempered glass, extremely durable
Smart Meeting Whiteboard Meets various meeting needs, free and smooth writing
QR Code Function Easy sharing, scan QR code for quick document sharing
Control Panel Simplified control panel with USB full channel follow and one-button 3-in-1 switch
Conference Homepage Scientifically structured layout with common shortcuts to enhance user experience
Wireless Screen Sharing Multi-screen interaction, one-click screen sharing, bi-directional control for content sharing between devices
Annotation Write freely anytime and anywhere
Welcome Module Customizable meeting welcome module, supports meeting sign-in
Sound Quality Front-facing sound port design, cinema-level audio experience
Integration Integrated design, supports third-party video conferencing hardware/software, seamless communication with no latency
Zero-Glue Writing Experience Near-zero distance writing experience with zero-glue bonding technology
Ambient Light Sensor Auto-adjusts screen brightness based on ambient light, protects eyesight and saves energy
App Split-Screen Support Supports whiteboard and browser app split-screen operation in Android system
Parameter
Display Specifications
Specification Details
Screen Size 65 inches
Dimensions (Bare Machine) 1492.7 x 87.2 x 907.6 mm
Packaging Dimensions 1660 x 220 x 1045 mm
Display Area 1428.48 mm (H) × 803.52 mm (V)
Pixel Pitch 0.372 mm x 0.372 mm
Best Resolution 3840 (H) × 2160 (V) (UHD)
Brightness 350 cd/㎡
Contrast Ratio 1200:1 (Typ.)
Viewing Angle 178°, 178°
Response Time 8 ms
Display Colors 8 bit/16.7 Million
Backlight Type DLED
Screen Lifespan 50,000 hours
Speakers 2 x 8Ω 15W
Power Consumption ≤190W
Operating Voltage 100V-240VAC, 50/60Hz
Net Weight/Gross Weight 40 kg / 51 kg
Touch Specifications
Specification Details
Touch Integration Built-in, integrated design (non-external)
Writing Methods Finger, touch pen, or any non-transparent object with a diameter ≥ 5 mm
Touch Points 20 points
Touch Accuracy <1mm in the center, <3mm at the edges
Touch Height 2 mm
Response Speed <10 ms
Touch Resolution 32768 x 32768
Touch Life Cycle Theoretical unlimited touches
Transmission Speed 480 Mbps
Scan Frequency >100 Hz/S
Interface Type A-type USB male + UART
Driver System auto-recognition, no driver required
Supported OS Windows 7/10, Android, Mac OS, Linux
Operating Voltage 4.75V ~ 5.25V
Operating Current ≤300mA
Operating Temperature -10℃ ~ 50℃
Android Mainboard Specifications
Specification Details
CPU A55 * 4, 1.5 GHz, Max. 1.9 GHz
GPU Mali-G52 MP2 (2EE)
RAM 4 GB
Memory 32 GB
System Version Android 11.0
Front Ports 3 x USB3.0 (Public), 1 x HDMI IN, 1 x TOUCH USB-B, 1 x TYPE-C (15W)
Rear Ports 2 x HDMI IN, 1 x TOUCH USB-B, 1 x Android USB2.0, 1 x Public USB3.0, 1 x TF Card
Rear Bottom Ports 1 x COAX, 1 x RS232, 1 x MINI AV IN, 1 x MINI AV OUT, 1 x EARPHONE, 1 x MIC IN, 1 x RJ45 IN, 1 x RJ45 OUT
WiFi 2.4G (WiFi), 5G (Hotspot), BT 5.0
Audio Formats Supported MPEG1/2 layer I/II, AAC-Lc, WMA, etc.
Video Formats Supported MPEG-2/4, AVS, H.264, H.265, TS, Realmedia, etc.
Image Formats Supported JPG, BMP, PNG, etc.
Donwload
FT-7101-65T
