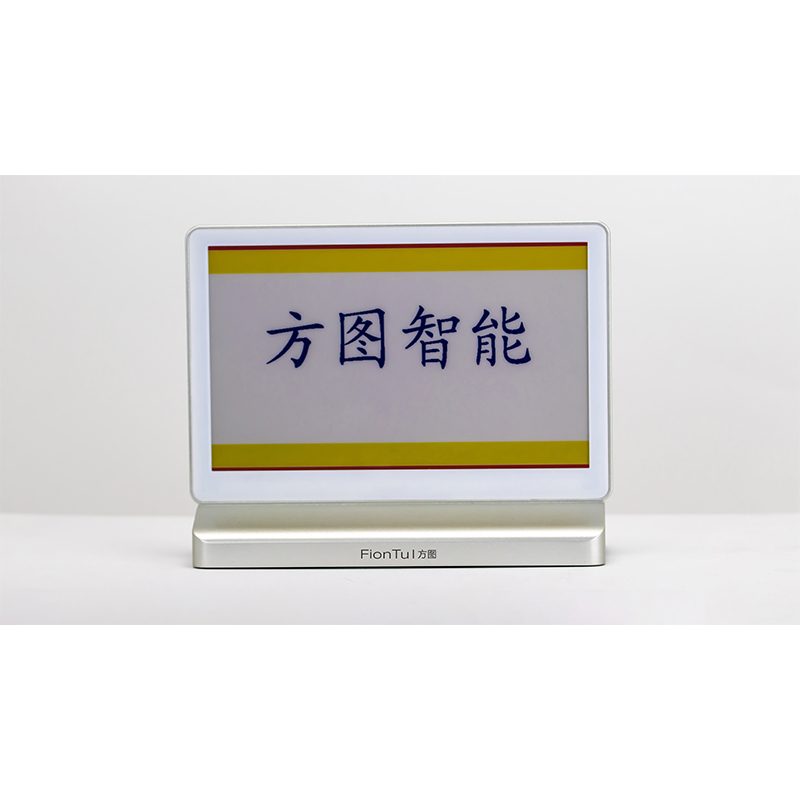

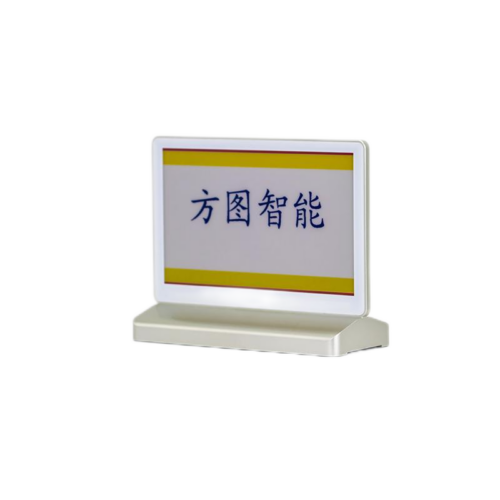

7.5-inch seven-color ink screen dual-screen smart electronic conference table sign FT-MZR

The ink screen electronic conference table sign is a modern, paperless solution that utilizes wireless technology for efficient information display in high-end conference settings. Featuring a 7.5-inch double-sided E-Ink screen with a nearly 180-degree viewing angle, it offers a glare-free and eye-friendly experience, enhancing the technological atmosphere of meeting venues. Its long battery life of up to 24 months and customizable features make it a sustainable alternative to traditional paper table signs.
Categories:
Get Quote
Category Tags , , , ,
Description
  • The ink screen electronic conference table sign is an intelligent paperless conference device that transmits display information to the terminal through wireless technology, combined with mobile phones and cloud management systems. It is suitable for conference rooms such as high-end hotels, government agencies, large enterprises and companies.
  • Low-carbon and environmentally friendly, simple to operate, replaces traditional paper table signs, reduces paper printing, and arranges the venue in advance. The venue is full of high-end atmosphere, increases the sense of technology and atmosphere of the venue, and is the best choice for the information upgrade of major conference venues.
  • Compared with traditional electronic table signs, it has the characteristics of no reflection when taking pictures, no glare when watching for a long time, no black screen when power off, and strong battery life.
  • The screen adopts E-Inkink screen technology, which is easy to read, flicker-free, radiation-free, and does not hurt the eyes when watching for a long time. The reading angle can be close to 180°, and full-angle reading can bring a better reading experience.
  • Energy saving and power saving, the display is static, power failure does not affect the display content, no refresh and no power consumption, extremely low power consumption, using two No. 5 dry battery, fully charged for more than 24 months (based on laboratory data: refresh the screen once a day).
  • Support the screen to remain unchanged when the battery is out of power.
  • Adopt advanced Bluetooth + NFC technology, wireless control, one-click refresh, fast and efficient, flashing not only relies on NFC, but also supports any Android and Hongmeng system mobile phones with Bluetooth to modify the table card display information.
  • Both sides can display different information and names, the background can be customized, built-in multiple background skins, support custom image import, and the software supports intelligent conversion of image display.
  • Support computer cloud server, management of personnel information, grouping, template background, etc. (need to be equipped with a dedicated base station).
    • Parameter
    Screen size 7.5 inches double-sided
    Visual area 161.0 mm ×96.0mm
    Resolution 800*480
    DPI 125
    Grayscale black, white, red, yellow, orange, green, blue 2 grayscales
    Product size 141.8 × 171×70 mm
    Product weight 258±5g
    Display type bistable electronic ink screen
    Orientation horizontal screen
    Viewing angle nearly 180 degrees
    Working temperature 15℃ ~ 35℃
    Storage temperature -25℃ ~ 60℃
    Power supply 2 No. 5 alkaline dry batteries
    Working voltage 2.5V ~ 3.6V
    Working current 50mA for screen refresh, 0.2mA for standby current
    Battery life 24 months of use with full charge (based on laboratory data)
    Bluetooth version compatible with BLE 5.0
    NFC ISO/IEC14443-A
    Working mode 1 through NFC in the center of the display Transmit images.
    Working mode 2 Transmit images via mobile phone Bluetooth. Transmission radius is more than 15 meters (unobstructed).
    Working mode 3 Computer  control, transmit  images via  Bluetooth  base  station,  transmission radius is more than 15 meters (unobstructed).
    Mobile phone operating system Android (Android 7.0 and above), Apple (9.0 and above), Hongmeng
    Server system Windows 7, Linux
    Cloud server Support
    Offline mobile phone version Support Android phones
    System docking Support docking with third-party systems
    Donwload
    FT-MZR
