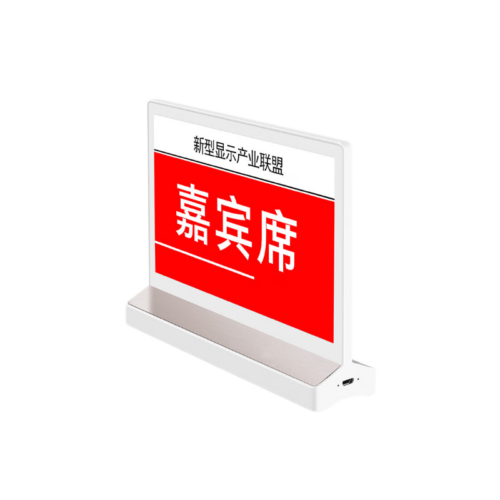

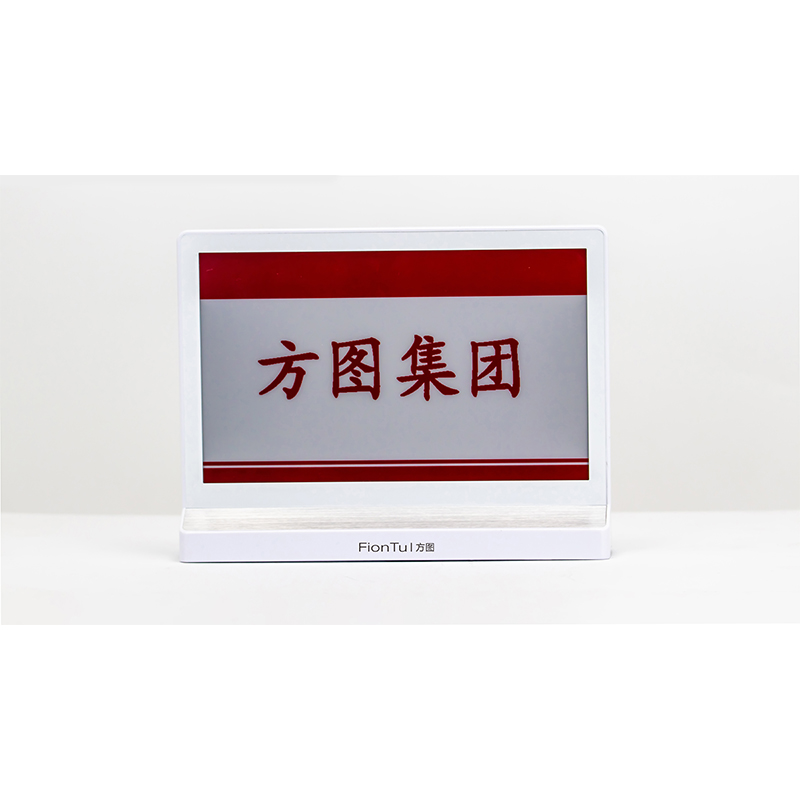

7.5-inch three-color ink screen dual-screen smart electronic conference table sign FT-MZA

The ink screen electronic conference table sign is a smart, eco-friendly solution designed for modern conference environments, utilizing wireless technology for easy management and display of information. Featuring a 7.5-inch double-sided E-Ink screen with a nearly 180-degree viewing angle, it offers a flicker-free and glare-free experience, ensuring comfort during long meetings. Its long battery life and support for customizable backgrounds and information make it an ideal upgrade for high-end venues, reducing reliance on traditional paper signs.
Categories:
Get Quote
Category Tags , , , ,
Description
  • The ink screen electronic conference table sign is an intelligent paperless conference device that transmits display information to the terminal through wireless technology, combined with mobile phones and cloud management systems. It is suitable for conference rooms such as high-end hotels, government agencies, large enterprises and companies.
  • Low-carbon and environmentally friendly, simple to operate, replaces traditional paper table signs, reduces paper printing, and arranges the venue in advance. The venue is full of high-end atmosphere, increases the sense of technology and atmosphere of the venue, and is the best choice for the information upgrade of major conference venues.
  • Compared with traditional electronic table signs, it has the characteristics of no reflection when taking pictures, no glare when watching for a long time, no black screen when power off, and strong battery life.
  • The screen adopts E-Inkink screen technology, which is easy to read, flicker-free, radiation-free, and does not hurt the eyes when watching for a long time. The reading angle can be close to 180°, and full-angle reading can bring a better reading experience.
  • Energy saving and power saving, the display is static, power failure does not affect the display content, no refresh and no power consumption, the power consumption is extremely low, and the power supply adopts Rechargeable lithium battery, fully charged for more than one year (laboratory data, screen refresh once a day).
  • Supports the screen to remain unchanged when the battery is out of power, and the screen will not be turned off.
  • Adopts advanced Bluetooth + NFC technology, wireless control, one-click refresh, fast and efficient, flashing not only relies on NFC, but also supports any Android and Hongmeng system mobile phones with Bluetooth to modify the table card display information.
  • Both sides can display different information and names, the background can be customized, built-in multiple background skins, support custom image import, and the software supports intelligent conversion of image display.
  • Supports computer cloud server, management of personnel information, grouping, template background, etc. (needs to be equipped with a dedicated base station).
    • Parameter
    Screen size 7.5 inches double-sided
    Visual area 161.0 mm ×96.0mm
    Resolution 800*480
    DPI 125
    Grayscale black, white, red 2 grayscale
    Product size 134.0 ×209.2 ×35.2 mm; display surface thickness is only 8.5mm
    Product weight 250±5 g
    Frame material aluminum alloy + acrylic
    Display type bistable electronic ink screen
    Orientation horizontal screen
    Viewing angle nearly 180 degrees
    Working temperature 0℃ ~ 40℃
    Storage temperature -25℃ ~ 60℃
    Power supply built-in 1800mAH lithium battery, micro usb charging
    Working voltage 2.5V ~ 3.6V
    Working current refresh current 50mA, standby current 0.2mA
    Battery life more than 12 months of use after a full charge (based on laboratory data)
    Bluetooth version compatible with BLE 5.0
    NFC ISO/IEC14443-A
    Data rate support 1Mbps, 2Mbps
    Channel spacing 2MHz
    Wireless frequency band 2.402~2.480GHz
    Working mode 1 Transmit images through NFC in the center of the display.
    Working mode 2 Transmit images through mobile phone Bluetooth. Transmission radius is more than 15 meters (unobstructed).
    Working mode 3 Computer   control,   transmit    images   through    Bluetooth    base    station, transmission radius is more than 15 meters (unobstructed).
    Mobile operating system Android (android7.0 and above), Apple (9.0 and above), Hongmeng
    Server system Windows 7, Linux
    Cloud server support
    docking with third-party platforms support
    Donwload
    FT-MZA
