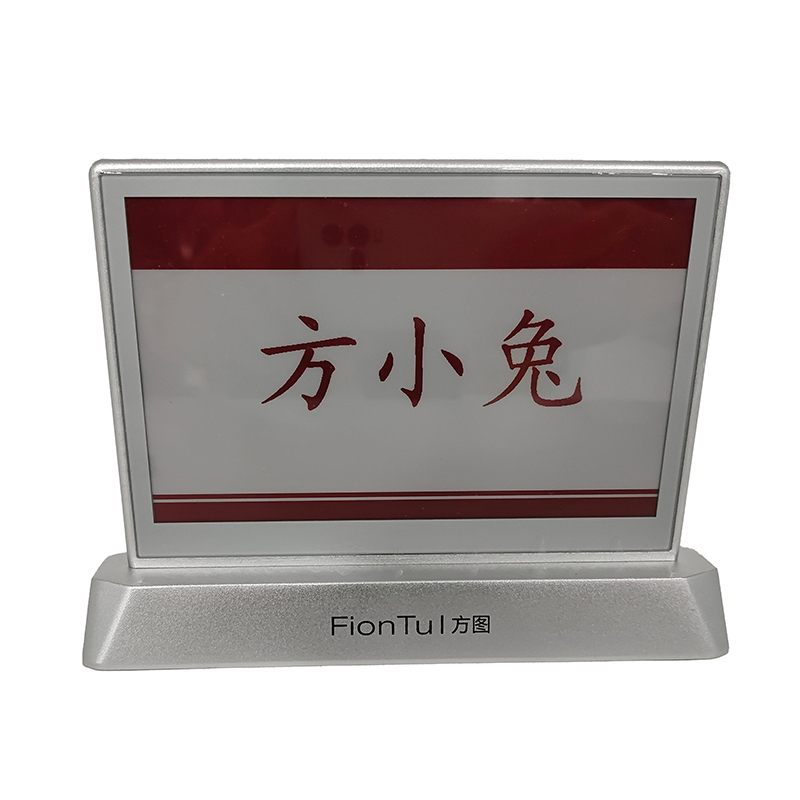

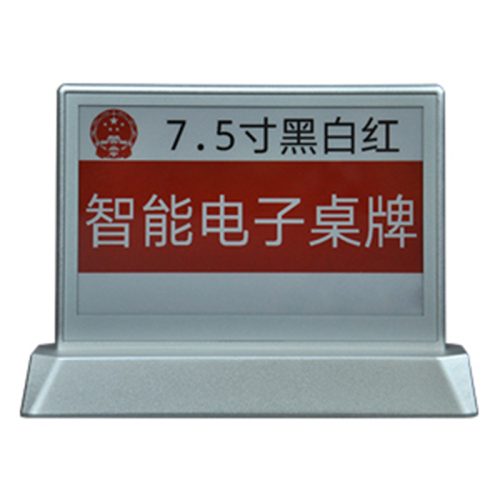

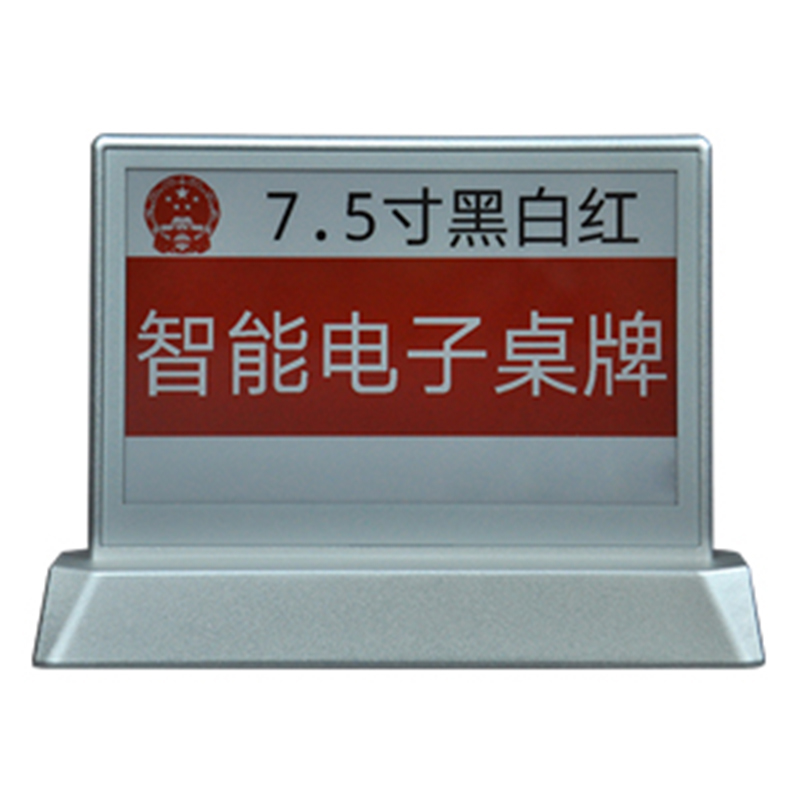

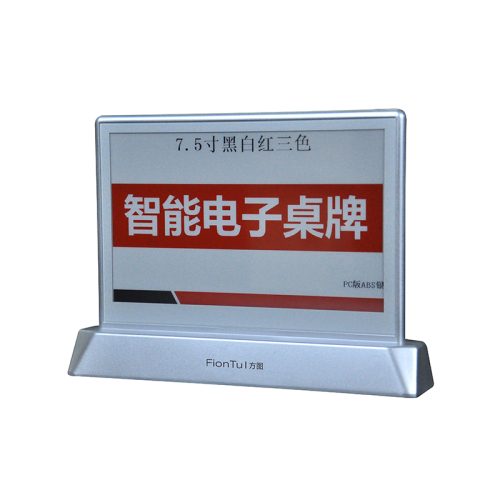

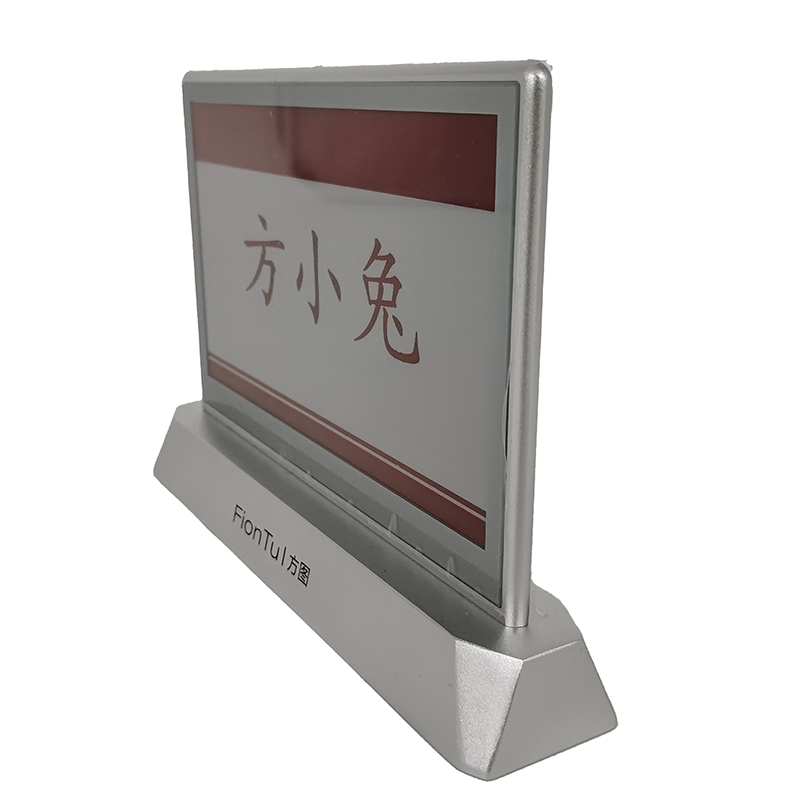

7.5-inch three-color ink screen dual-screen smart electronic conference table sign FT-MZD

The ink screen electronic conference table is a smart, eco-friendly device designed to replace traditional paper signs in conference settings, leveraging wireless technology, including Bluetooth and NFC, for seamless information display. With a 7.5-inch E-Ink screen, it offers high visibility, customizable backgrounds, and a long battery life of over a year on standard alkaline batteries. This innovative solution enhances the conference experience while reducing environmental impact.
Categories:
Get Quote
Category Tags , , , ,
Description
  • The ink screen electronic conference table is an intelligent paperless conference device that transmits display information to the terminal through wireless technology, combined with mobile phones and cloud management systems. Applicable to conference rooms of high-end hotels, government agencies, large enterprises and companies.
  • Low-carbon and environmentally friendly, simple to operate, replaces traditional paper table signs, reduces paper printing, and arranges the venue in advance. It is the best choice for the information upgrade of major conference venues.
  • CNC precision-carved integrated body, beautiful appearance, high-end atmosphere and high-end.
  • Compared with traditional electronic table signs, it has the characteristics of no reflection when taking pictures, no glare when watching for a long time, no black screen when power off, and strong battery life.
  • The screen adopts E-Inkink screen technology, which is easy to read, flicker-free, radiation-free, and does not hurt the eyes when watching for a long time. The reading angle can be close to 180°, and full-angle reading can bring a better reading experience.
  • Energy saving and power saving, the display is static, power failure does not affect the display content, no refresh and no power consumption, extremely low power consumption, built-in 2 built-in No. 5 Nanfu alkaline batteries, the power is enough to support no less than 2000 times to modify the display information, can be used for more than 1 year, and ultra- long standby.
  • Using advanced Bluetooth + NFC technology, wireless control, one-click refresh, fast and efficient, flashing not only relies on NFC, but also supports any Android and Hongmeng system mobile phones with Bluetooth to modify the table card display information.
  • Different information and names can be displayed on both sides, the background can be customized, multiple background skins are built-in, and custom image import is supported.
  • Support computer cloud server, management of personnel information, grouping, template background, etc.
    • Parameter
    Screen size 7.5 inches
    Product size 208*44*149.4mm (length × width × height)
    Screen color black, white and red three-color screen display
    Screen resolution 800*480
    Visible area 163.20 (H) * 97.92 (V) mm
    DPI 127
    Grayscale black, white and red 2 grayscale
    Craftsmanship aluminum alloy metal shell
    Display content support name, position, meeting theme, unit, etc.
    Working environment working temperature ：0～35 °C
    Storage temperature -25～60 °C
    Relative humidity 5%～95% (no condensation)
    Background template customize various fonts, font sizes, and adjust background templates
    12 Power consumption 50mA for screen refresh, and 0.2mA or less for standby
    Communication method NFC, Bluetooth
    Product weight 528.9g
    Installation method desktop, ready to use
    Battery life Built-in No. 5 Nanfu alkaline battery, fully charged can be used for 1 year
    Operating system Android and Hongmeng system phones, do not support Apple phones without IOS
    Power supply battery power
    NFC recognition distance <1cm
    Display horizontal screen display
    Cooling method natural air cooling
    Structure upright double-sided display, base integrated
    Data upload time <5s
    Image transmission mode 1 Image transmission through NFC in the center of the display
    Image transmission mode 2 Image transmission through mobile phone Bluetooth, keep the transmission range of 0-5m for best
    Donwload
    FT-MZD
