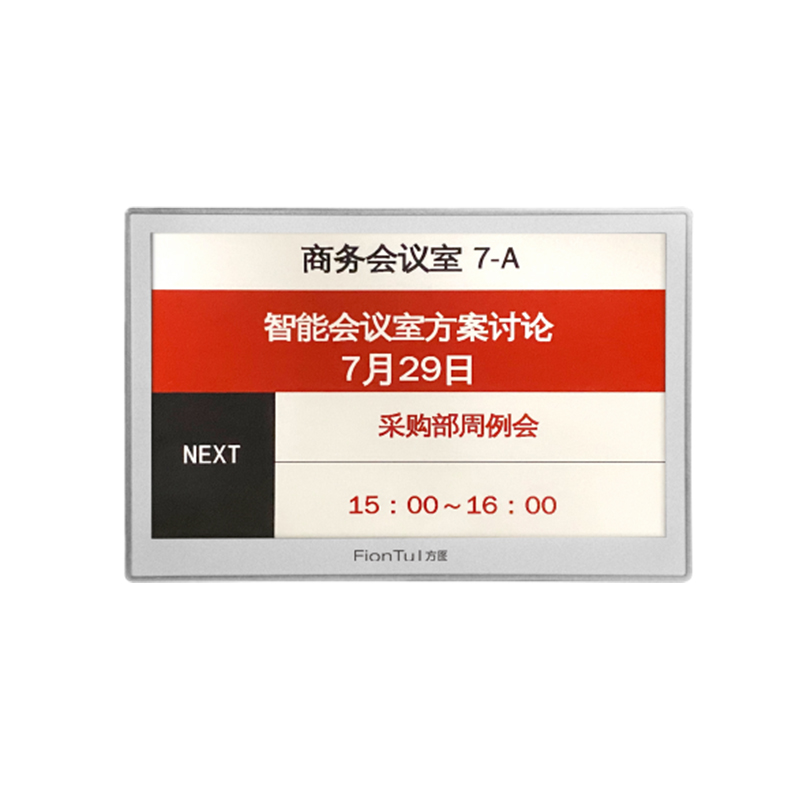

7.5-inch three-color ink screen dual-screen smart electronic conference table sign WIFI version FT-MZ2

This ink screen electronic conference table sign is a paperless, environmentally friendly solution using wireless 2.4G WIFI technology, ideal for high-end venues. It features a double-sided E-Ink display with long battery life (3-5 years) and customizable content via a web-based interface. The device ensures clear, flicker-free viewing, even when powered off, and supports cloud or LAN server management.
Categories:
Get Quote
Category Tags , , , ,
Description
  • The ink screen electronic conference table is an intelligent paperless conference device that transmits display information to the terminal through wireless W IF I V6 routing technology combined with a PC management system. Applicable to conference rooms of high-end hotels, government agencies, large enterprises and companies.
  • Low-carbon and environmentally friendly, simple to operate, replaces traditional paper table signs, reduces paper printing, and arranges the venue in advance. It is the best choice for the information upgrade of major conference venues.
  • Made of aluminum alloy, beautiful appearance, high-end atmosphere.
  • Compared with traditional electronic table signs, it has the characteristics of no reflection when taking photos, no glare when watching for a long time, no black screen when power off, and strong battery life.
  • The screen adopts E-Inkink screen technology, which is easy to read, flicker-free, radiation-free, and does not hurt the eyes when watching for a long time. The reading angle can be close to 180°, and full-angle reading can bring a better reading experience.
  • Energy saving and power saving, the display is static, power off does not affect the display content, no refresh and no power consumption, extremely low power consumption, built-in six CR2450 electronics, full power is updated twice a day, can be used for 3-5 years, ultra-long standby.
  • Adopts advanced wireless WI FI 2.4G communication technology, wireless control, one-key refresh, fast and efficient, simple operation interface, no need to learn, quick to get started, wireless communication distance 25m.
  • Double-sided display (supports double-sided display), beautiful, simple and generous.
  • Web-based application interface, supports cross-platform operation.
  • Wireless communication rate 200/50kbps, custom two-way communication protocol, data software and hardware verification, safe and reliable.
  • System software supports cloud and LAN private server deployment, ① Click the link to log in to the conference table system ② Add a meeting ③ Add a conference table ④ Select a template ⑤ Modify the content directly on the page ⑥ Update the content of the conference table card (large quantities of applications can also export excel tables to modify the edited content and then import the table).
    • Parameter
    Screen size 7.5 inches
    Product size 208*44*150mm (length × width × height)
    Screen color black, white and red three-color screen display
    Screen resolution 800*480
    Visible area 163.20 (H) * 97.92 (V) mm
    DPI 124
    Grayscale black, white and red 2 grayscale
    Process aluminum alloy metal shell/ABS
    Display content support name, position, meeting theme, unit, etc.
    Working temperature 0~40 °C
    Storage temperature -25~60 °C
    Relative humidity 5%~95% (no condensation)
    Background template customize various fonts and font sizes, adjust background template
    Working voltage 3.0V (minimum 2.2V)
    Communication mode 2.4G
    Product weight 528.9g
    Installation mode desktop, ready to use
    Battery life built-in six CR2450 electronics, fully charged and updated twice a day, can be used for 3-5 years
    Transmission power 5DB
    Power supply mode six CR2450 electronics
    Transmission distance radius 25M
    Display horizontal screen display
    Heat dissipation method natural air cooling
    Structure upright double-sided display, base local integration
    Communication rate 200/50Kbps
    Receiving sensitivity -100DB
    Working frequency band 2402-2483MHZ (private protocol)
    Appearance color silver, gray
