70m HDBT network receiver FT-HDBT70-R

The FT-HDBT70-R is an HDBaseT receiver designed for uncompressed, lossless HDMI signal transmission over distances of up to 70 meters with CAT5e/6/7 cables. It supports 4K60Hz resolution, bidirectional IR, RS232 communication, and power over cable (POC), along with audio embedding/de-embedding and EDID management. This device is ideal for high-definition long-distance transmission in multimedia environments such as conference rooms and cinemas.
Categories:
Get Quote
Category Tags , , , ,
Description
  • FT-HDBT70-R transmitter is a transmitter integrating HDBaseT technology. This product is an uncompressed, lossless and delay-free HDMI signal transmission device, which is suitable for various requirements of high-definition long-distance transmission. It can be used with other HDBaseT products. The signal can be transmitted up to 70 meters through a single CAT5E/CAT6/CAT7 network cable. It is compatible with all HDTV resolutions, supports HDMI2.0 protocol, and supports a maximum resolution of 4K60Hz. This product has two-way RS232 communication function and two-way infrared transmission and reception function, which can realize long-distance remote control signal transmission, support remote POC power supply, support audio embedding and de-embedding function, and support EDID intelligent management. This product has a wide range of uses and can be applied to multimedia conference rooms, multimedia classrooms, cinemas and other occasions
  • Transmission distance (using Cat5e/6/7 cable) 3.HDMI HDBaseT, transmission distance 70 meters (1080p), 35 meters (4K60 4:4:4)
  • Support ultra-clear 4K Signal transmission, bandwidth up to 10.2Gbps, supports HDMI2.0
  • Supports audio embedding function (transmitter) and audio de-embedding function (receiver)
  • Supports EDID management function (transmitter)
  • Transmits bidirectional IR signals and bidirectional RS232 control signals
  • Bidirectional power transmission POC (Power over Cable), 12v power supply (transmitter to receiver or receiver to transmitter)
  • Visual LED indicator lights indicate power working status, device operation status, and network cable connection status
  • The network cable adopts the standard IEEE-568B line sequence
  • Supports transmitting loop-out and receiving dual HDMI port output
    • Parameter
    Interface parameters 1XHDBaseT, 2XHDMI, 1X3.5MM audio, 1XRS232, 1XIR_TX, 1XIR_RX
    Protocol standard Support HDMI2.0 and HDCP protocols, support EDID intelligent management
    Resolution 480i, 576i, 480p, 576p, 720p, 1080i, 1920x1080p60Hz, 3840x2160/30Hz, 3840X2160/60
    Support color space 1080p: 36Bit Deep Color 4K: 24Bit True Color, 4:2:2
    Data rate 10Gbps
    Transmission distance CAT6 cable: 1080p60Hz transmission distance 70 meters 4K30Hz, 4K60HZ transmission distance 35 meters
    Dimensions 152×100×27 (mm)
    Weight 200g (excluding packaging and power supply)
    Power supply AC: 100-240V 50/60Hz 1.5A Max DC: 12V 1500mA
    Power consumption ≤11W
    Working humidity 10%-90%
    Working temperature 0℃-50℃
    Donwload
    FT-HDBT70-R
    Get Quote

    Your email address will notbe published, Required fields are marked

    Product Related

    Seamless Switcher FT-41ASK

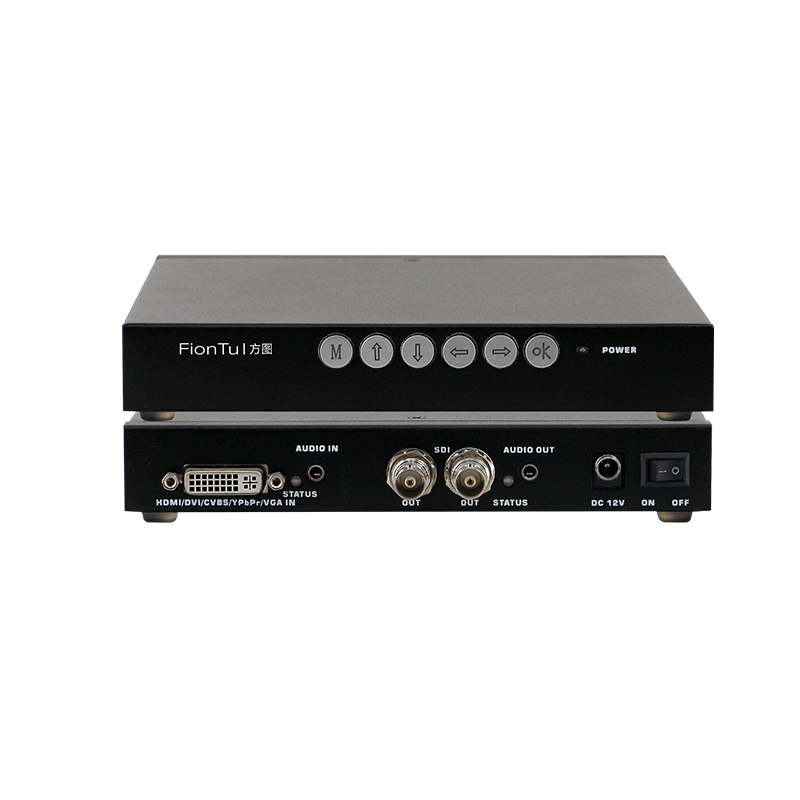

    Signal Converter FT-SDI-O
