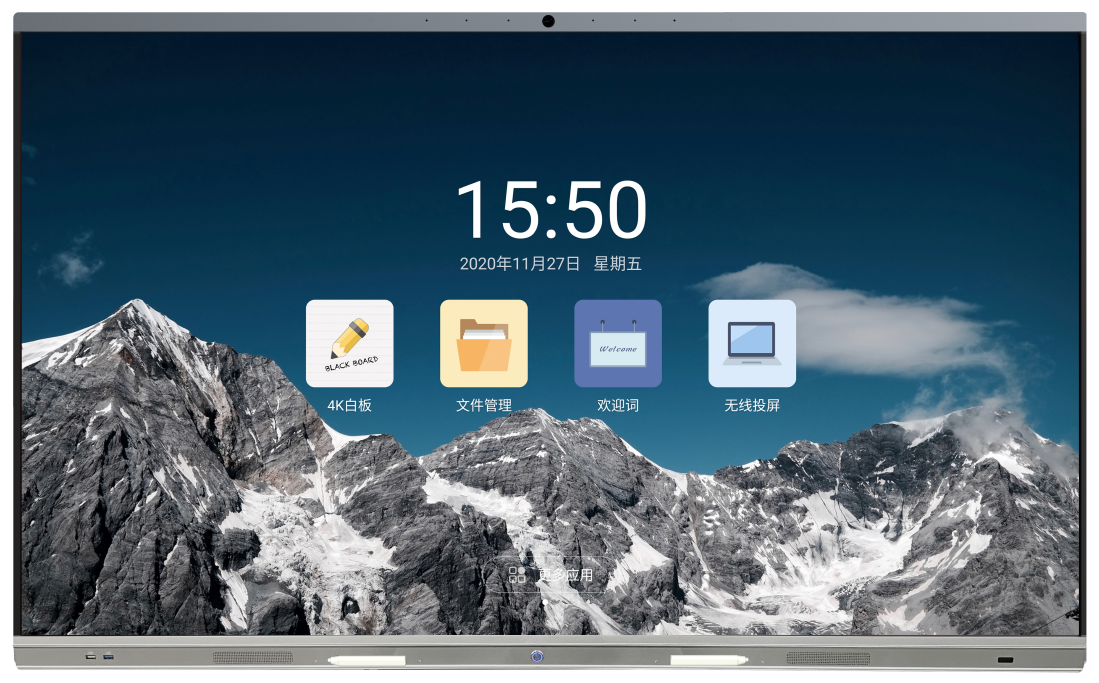

98-inch touch screen all-in-one computer (built-in camera and microphone) FT-7101-98C

The 98-inch dual-system smart electronic whiteboard features a 4K display powered by the MSD848 motherboard, equipped with dual-core A73 and A53 CPUs and Android 8.0, designed for interactive use in educational and conference environments. It supports multi-device sharing, offers a user-friendly interface, and includes built-in audio-visual capabilities for enhanced communication. The device ensures seamless operation with various applications and real-time data sharing for efficient meetings.
Categories:
Get Quote
Category Tags , , , ,
Description
Product Features
Feature Description
Ultra-Narrow Bezel Rounded corners and anodized surface finish, reflecting business elegance.
Ultra-HD 4K Resolution Accurate color reproduction and high-definition clarity.
Mohs 7-Level High-Transparency Explosion-Proof Glass Toughened glass for durability, ensuring crystal-clear vision.
Smart Meeting Whiteboard Meets diverse meeting needs with easy writing functionality.
Meeting QR Code Scanning Quick sharing of documents with a simple QR code scan.
Simplified Control Panel USB full-channel tracking with a metal button for a one-touch switch.
Scientific Meeting Homepage Layout Includes commonly used shortcut applications for an enhanced user experience.
Wireless Screen Transmission Multi-screen interaction with one-click casting and bi-directional control.
Anytime Annotations Write and annotate anytime and anywhere for flexible interaction.
Customizable Meeting Welcome Module Supports meeting sign-in features for organized conferences.
Front-Facing Audio Port Design High-quality sound effects, providing a cinematic auditory experience.
Integrated Design Fully integrated with third-party video conferencing software and hardware.
Integrated Camera and Microphone Modular design for integrated camera and array microphone, ensuring high-quality video and audio.
Parameter
Technical Parameters
Item Specification
Size 98”
Physical Dimensions 2216.8*99.3*1331.6 mm
Package Dimensions 2443*260*1518 mm
Display Area 2160.5mm(H) × 1217.3mm(V)
Pixel Pitch 0.5622 mm × 0.5622 mm
Best Resolution 3840(H) × 2160(V) (UHD)
Brightness 400 cd/m²
Contrast Ratio 1200:1 (Typ.) transmissive
Viewing Angle 178°, 178°
Response Time 8 ms
Display Colors 10-bit / 1.07 billion colors
Backlight Source DLED
Screen Lifespan ≥ 50,000 hours
Speakers 2 × 8Ω 10W
Power Consumption ≤ 516W
Working Voltage 100V-240VAC, 50/60Hz
Net Weight / Gross Weight 93 kg / 115 kg ± 5 kg
Touch Parameters
Item Specification
Touch Integration Built-in, non-external
Writing Method Finger, stylus, or any non-transparent object ≥ 5 mm in diameter
Touch Points 10-point / 20-point (optional)
Touch Accuracy ± 2 mm (90% area)
Response Speed ≤ 12 ms
Touch Resolution 32768 × 32768
Touch Lifetime Unlimited theoretical number of touches
Data Transfer Speed USB 2.0 full speed
Scan Frequency > 100 Hz/S
Interface Type Type-A USB male + UART
Driver System auto-recognition, no driver required
Supported OS Windows 7/10, Android, Mac OS, Linux
Operating Voltage DC 5V
Operating Current ≤ 400 mA
Operating Temperature -10°C ~ 50°C
Android Mainboard Parameters
Item Specification
CPU Cortex A732, A532, 1.5 GHz
RAM 3 GB
Memory 32 GB
System Version Android 8.0
Front Ports 2 × USB 2.0
Rear Ports 2 × HDMI IN, 1 × Touch USB-B, 1 × RJ45 IN, 1 × Earphone, 1 × AV IN, 1 × MIC IN, 1 × VGA IN, 1 × VGA Audio IN, 1 × RS232, 1 × SPDIF OUT, 2 × USB 2.0, 1 × TF Card, 1 × HDMI OUT
Wi-Fi 2.4G (WiFi), 5G (Hotspot), BT 4.2
Audio Formats MPEG1/2 layer I/II, AAC-Lc, WMA, etc.
Video Formats MPEG-2/4, AVS, H.264, H.265, TS, Realmedia, etc.
Image Formats JPG, BMP, PNG, etc.
Built-in Camera and Microphone Parameters

Item Specification
Camera Resolution 800W
Field of View (Diagonal) 100.6° (D)/92.4° (H)/61° (V) ±3%
Microphone 6-array omnidirectional microphones
Pickup Distance 10 meters
Donwload
FT-7101-98C
Get Quote
