Amplifier FT-2C1100

This Class H amplifier features a 2.4-inch TFT screen for real-time gain and temperature monitoring, delivering up to 2200W of power with low distortion and a high signal-to-noise ratio. It supports stereo, parallel, and bridge modes with balanced XLR interfaces and robust protection circuits for stable and professional performance. Designed for high-standard conferences, it combines power, reliability, and efficiency.
Categories:
Description

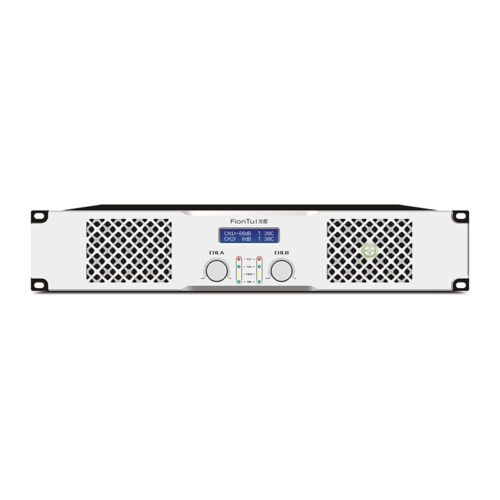

  • Built-in 2.4-inch TFT color screen, displaying real-time gain and temperature, and the use status is clear at a glance
  • Reasonable and optimized structure, high signal-to-noise ratio, extremely quiet, suitable for high-standard conference design requirements.
  • The sound is natural and real, with multiple protection circuits such as AC/voltage limit/short circuit/DC/overload/overheating.
  • appearance,mainly used in high-end conferences and other professional occasions
Parameter
Stereo mode output power 8Ω  1100W
Stereo mode output power 4Ω  1900W
Bridge output power 8Ω  2200W
Signal-to-noise ratio  98dB
Distortion THD( @8Ω1KHz)  <0.5%
Input impedance  20KΩ
Frequency response  20Hz-20KHz@1w
Line  Class H
Damping factor  >200@

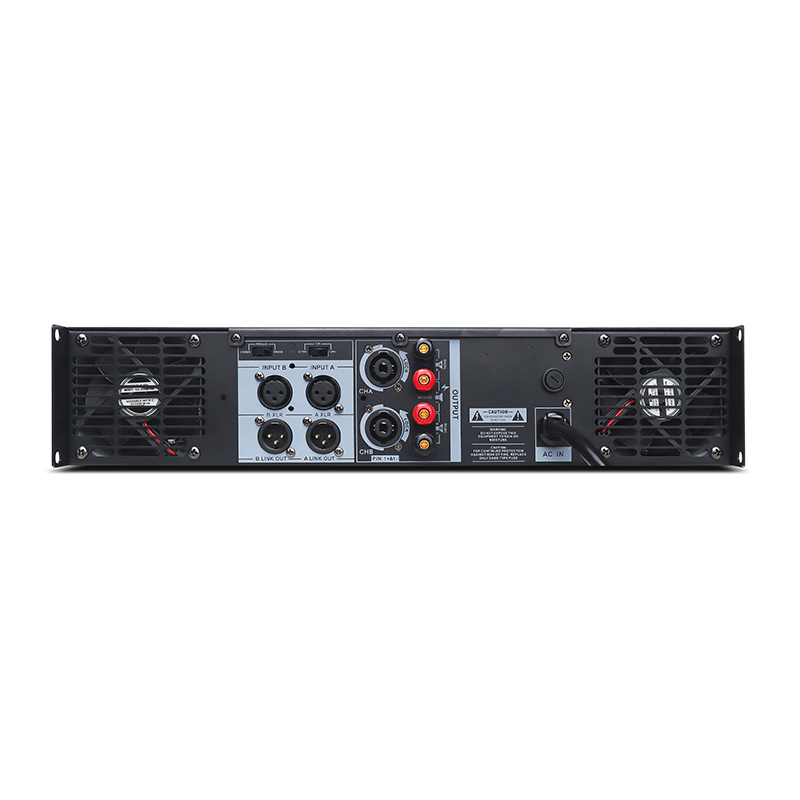

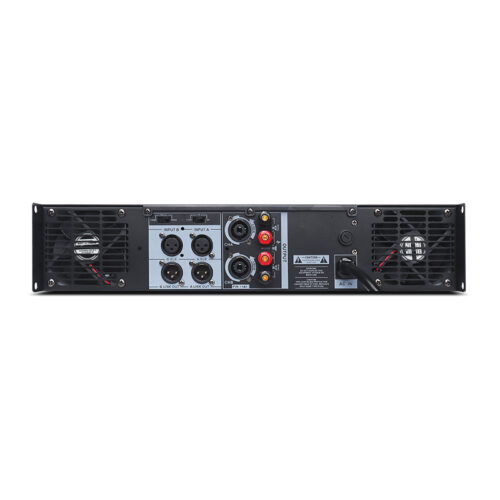

Audio interface  Input balanced XLR, output LINK balanced XLR
Amplifier interface  Red and black binding posts and NL4 sockets
Mode  Stereo/parallel/bridge
Sensitivity  0.775V, 1.0V, 1.44V
Power supply  220V, 50Hz
Dimensions (WxDxH)  480*450*90mm
Weight  22KG
