Amplifier FT-2C600

This Class H amplifier features a 2.4-inch TFT screen for real-time gain and temperature monitoring, delivering up to 1200W power with high signal-to-noise ratio and low distortion. It supports stereo, parallel, and bridged modes, with balanced XLR interfaces and comprehensive protection circuits for reliable operation. Robust and efficient, it is designed for professional conference systems.
Categories:
Get Quote
Category Tags , , , ,
Description

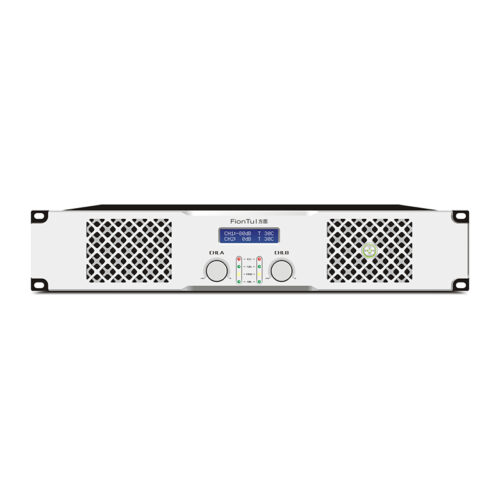

  • Built-in 2.4-inch TFT color screen, displaying real-time gain and temperature, and the use status is clear at a glance
  • Reasonable and optimized structure, high signal-to-noise ratio, extremely quiet, suitable for high-standard conference design requirements.
  • The sound is natural and real, with multiple protection circuits such as AC/voltage limit/short circuit/DC/overload/overheating.
  • appearance,mainly used in high-end conferences and other professional occasions
Parameter
Stereo mode output power 8Ω  600W
Stereo mode output power 4Ω  900W
Bridge output power 8Ω  1200W
Signal-to-noise ratio  98dB
Distortion THD( @8Ω1KHz)  <0.5%
Input impedance  20KΩ
Frequency response  20Hz-20KHz@1w
Line  Class H
Damping factor  >200

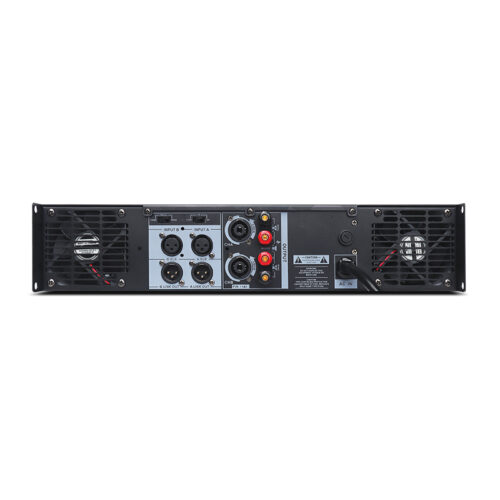

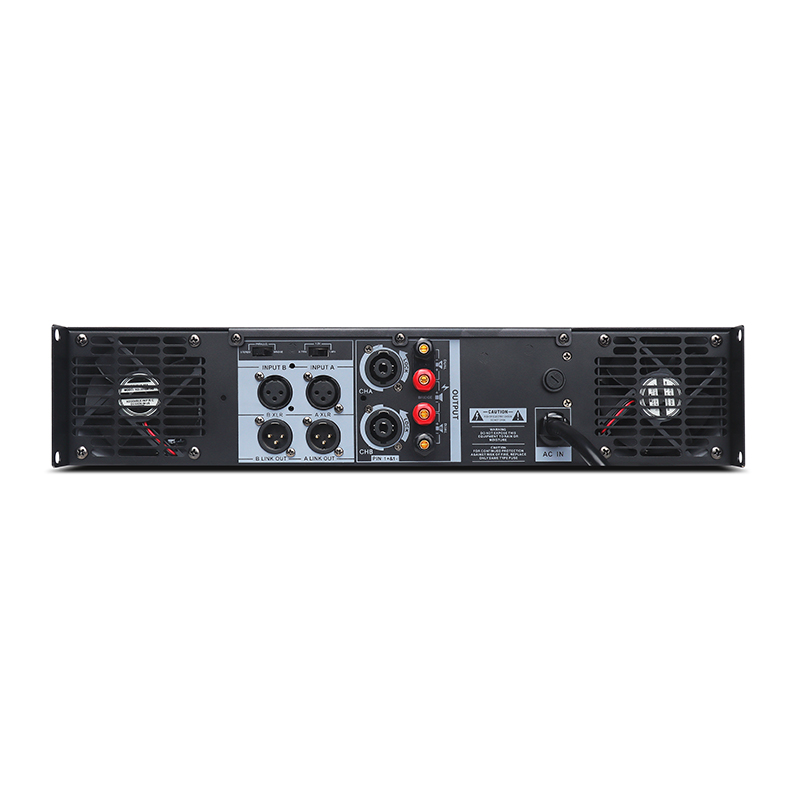

Audio interface  Input balanced XLR, output LINK balanced XLR
Amplifier interface  Red and black binding posts and NL4 sockets
Mode  Stereo/parallel/bridge
Sensitivity  0.775V, 1.0V, 1.44V
Power supply  220V, 50Hz
Dimensions (WxDxH)  480*450*90mm
Weight  19KG
Donwload
FT-2C600
