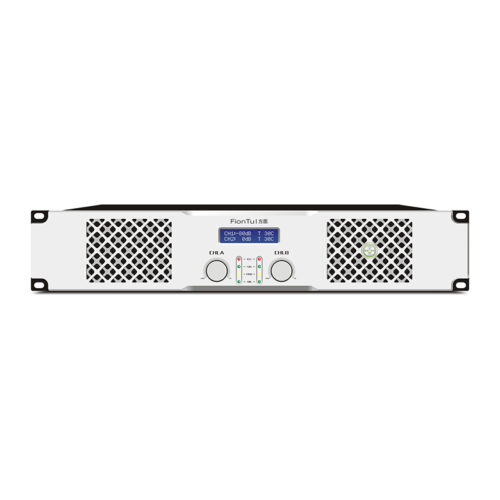

Amplifier FT-2C800

This Class H amplifier, equipped with a 2.4-inch TFT display for real-time monitoring, delivers up to 1600W power with low distortion and a high signal-to-noise ratio. It supports stereo, parallel, and bridge modes, featuring balanced XLR connections and comprehensive protection circuits for professional-grade reliability. Compact and powerful, it meets the demands of high-standard conference applications.
Categories:
Get Quote
Category Tags , , , ,
Description
  • Built-in 2.4-inch TFT color screen, displaying real-time gain and temperature, and the use status is clear at a glance.
  • Reasonable and optimized structure, high signal-to-noise ratio, extremely quiet, suitable for high-standard conference design requirements.
  • The sound is natural and real, with multiple protection circuits such as AC/voltage limit/short circuit/DC/overload/overheating. 4.appearance,mainly used in high-end conferences and other professional occasions
    • Parameter
    Stereo mode output power 8Ω  800W
    Stereo mode output power 4Ω  1400W
    Bridge output power 8Ω  1600W
    Signal-to-noise ratio  98dB
    Distortion THD( @8Ω1KHz)  <0.5%
    Input impedance  20KΩ
    Frequency response  20Hz-20KHz@1w
    Line  Class H
    Damping factor  >200

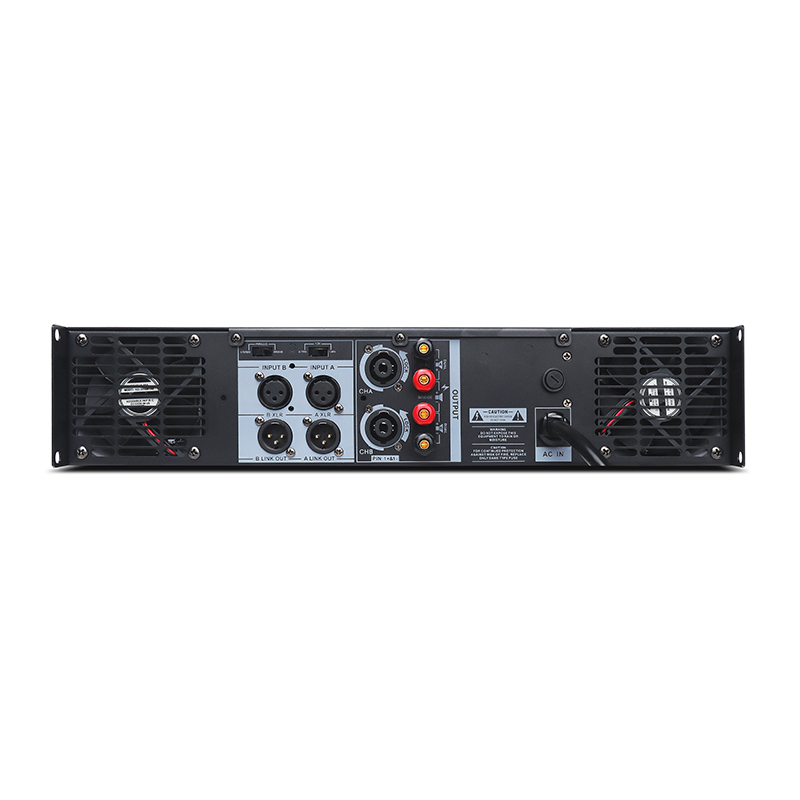

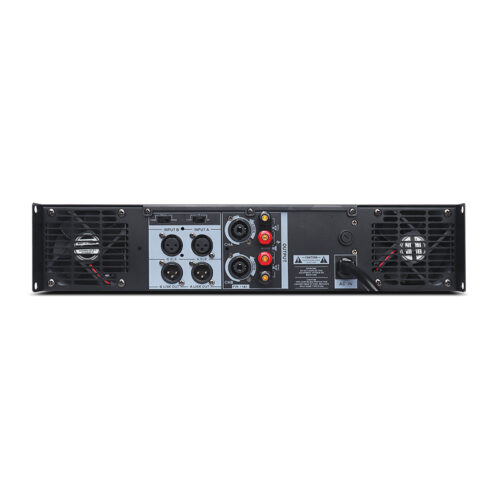

    Audio interface  Input balanced XLR, output LINK balanced XLR
    Amplifier interface  Red and black binding posts and NL4 sockets
    Mode  Stereo/parallel/bridge
    Sensitivity  0.775V, 1.0V, 1.44V
    Power supply  220V, 50Hz
    Dimensions (WxDxH)  480*450*90mm
    Weight  20KG
    Donwload
    FT-2C800
