Amplifier FT-4800

This high-performance 4-channel Class D amplifier delivers up to 1200W per channel at 4Ω and 1600W in bridge mode at 8Ω, with low distortion (<0.5%) and a damping factor >600. It features efficient cooling, comprehensive protection systems, and supports XLR inputs and NL4 outputs. Compact yet robust, it operates on 110V/220V and is designed for professional applications.
Categories:
Get Quote
Category Tags , , , ,
Description
Parameter
Stereo mode (four-channel drive) average continuous output power per channel 8 Ω /FTC 20Hz - 20KHz @ 0.5% THD: 4*800W 4 Ω /FTC 20Hz - 20KHz @ 0.5% THD: 4*1200W
Bridge  8 Ω/FTC20HZ-20KHZ/0.1%THD：2*1600W
Signal-to-noise ratio S/N (20Hz - 20KHz) 8 Ω  98DB
Distortion THD (@ 8 Ω 1KHz)  < 0.5%
Input impedance  20KΩ
Frequency response  20HZ-20KHZ@1w
Output circuit  D Class
Damping factor  >600@8Ω
Cooling system  4 continuous fans, airflow is sucked out from back to front
Terminals  Input：XLR, Output：NL4 socket

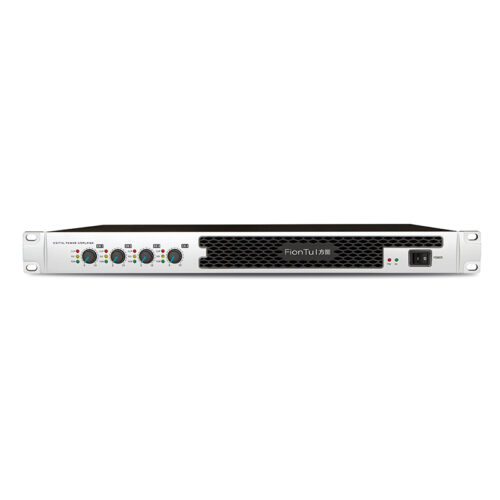

Front panel  AC power switch, channel individual gain control

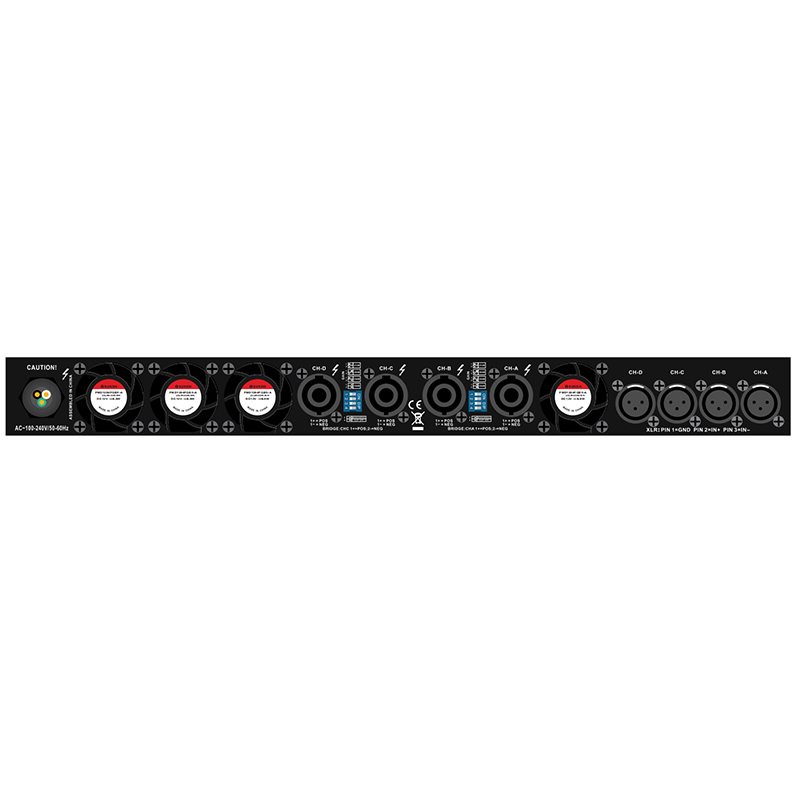

Rear panel  stereo/parallel/bridge modulation, sensitivity adjustment
Circuit protection  with output short circuit, overheating, automatic limiting, long-term output power, DC/AC protection device
Power supply requirements  110V/220V (modulated according to customer requirements)
Dimensions (WxDxH)  483x410x45mm
Net weight  10KG
Static power consumption of the product  78
Dynamic power consumption of the product  1170
Donwload
FT-4800
