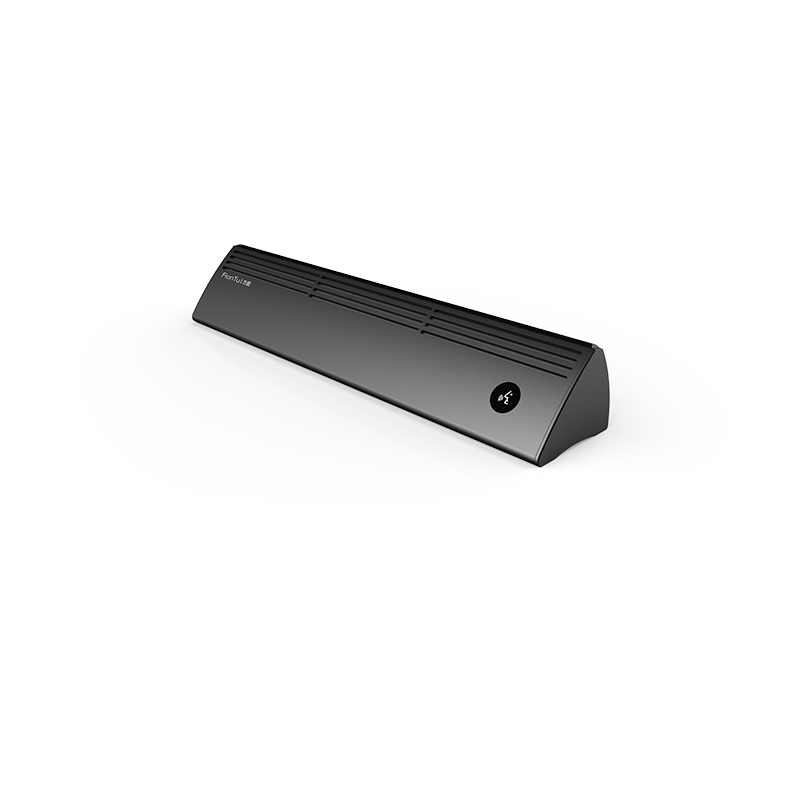

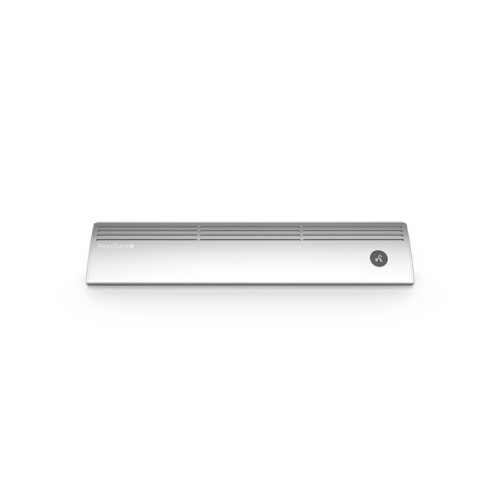

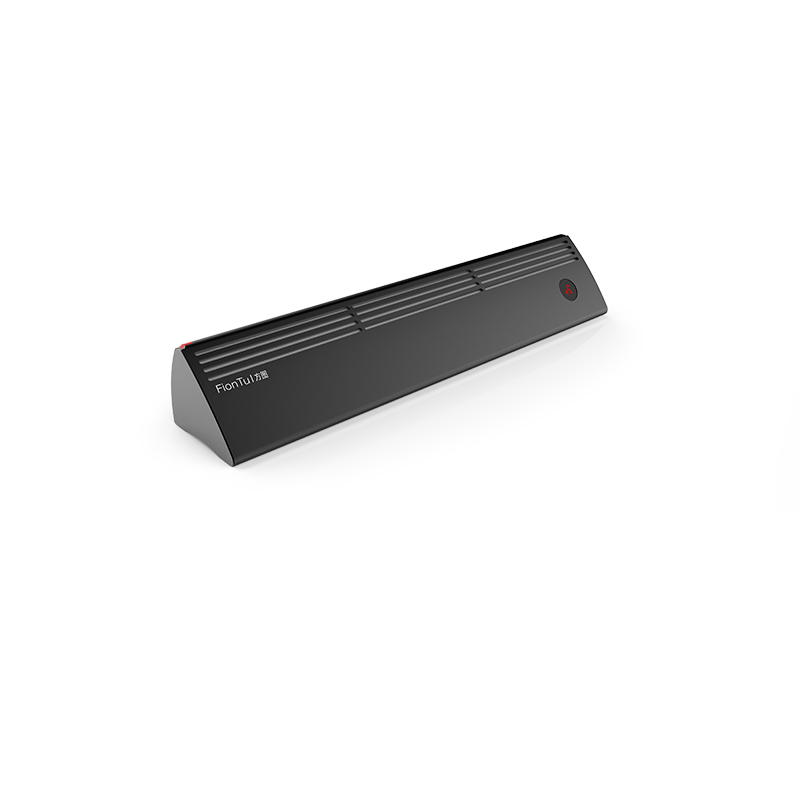

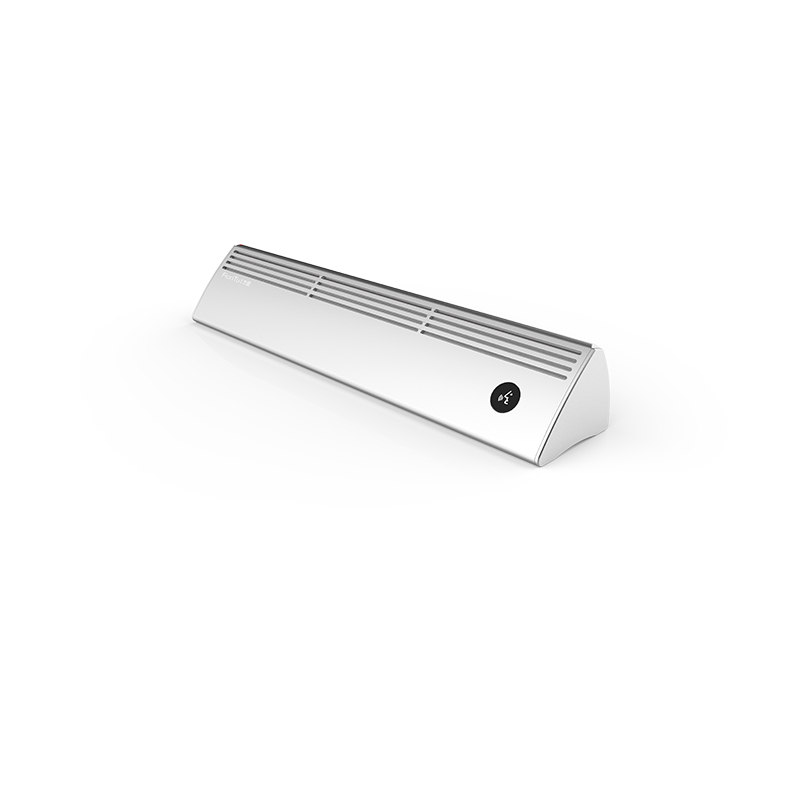

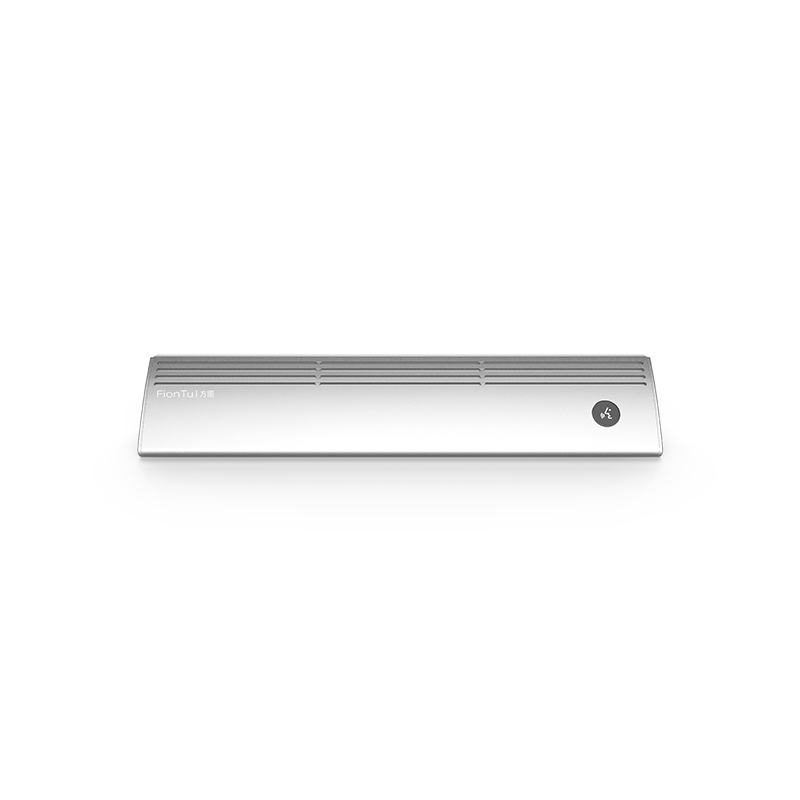

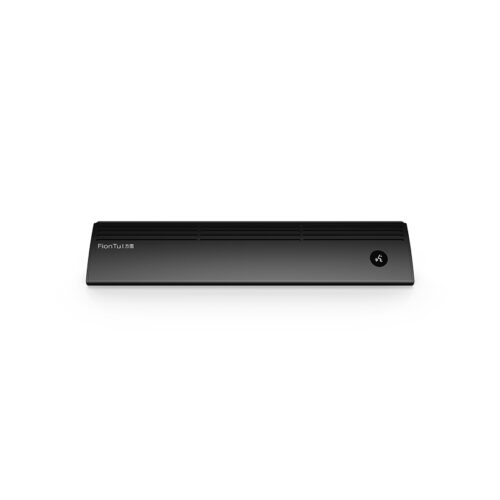

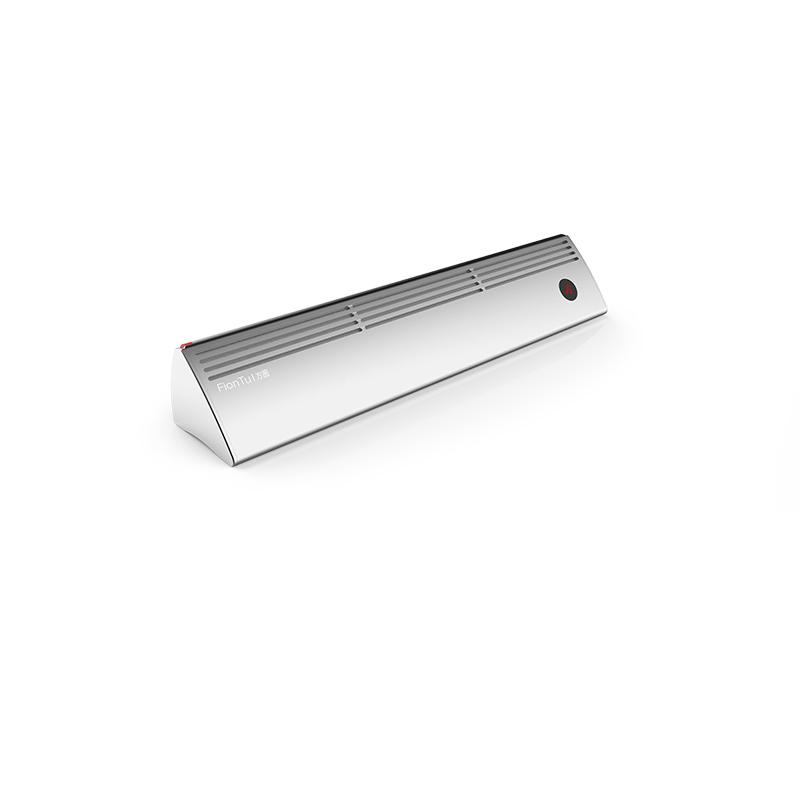

Analog conference unit F2

This microphone utilizes FionTu’s DMA digital microphone array technology with 21 built-in microphone heads for broad, high-quality sound pickup and excellent directivity. It offers flexible configuration for chairman units, has a simple touch-type speaking switch, and supports hot plug functionality. It is designed for integration with conference control software, enabling a variety of management functions.
Categories:
Get Quote
Category Tags , , , ,
Description
  • Gooseneck-free design, using FionTu's original DMA digital microphone array technology
  • Built-in 21 microphone heads, broadband pickup, long pickup distance, good directivity, excellent sound quality
  • Any unit can be flexibly configured as a chairman unit or an executive chairman unit, and there is no limit on the number of chairman units
  • The shell adopts one-piece molding and CNC machine tool precision processing technology, touch-type speaking switch, simple and convenient
  • The system has automatic repair function and supports hot plug of lines
  • According to the conference control software purchased by the user, a variety of conference management functions can be realized
    • Parameter
    Technical parameters of the whole machine
    Pickup technology Array microphone pickup
    Number of microphone heads 21
    Frequency response  30Hz-18kHz
    Signal-to-noise ratio >80 dB
    Dynamic range >95dB
    Total harmonic distortion <0.05%
    Maximum power consumption 1W
    Color  Black, Silver
    Weight 0.6kg
    Connection method FionTu conference six-core dedicated connection cable
    Shell material Aluminum alloy
    Dimensions (mm) length * width * height 284 * 57 * 48
    Microphone parameters
    Pickup microphone 9.7mm diameter gold-plated capacitor
    Directional characteristics Directional broadband
    Sensitivity -38 dB
    Frequency response 20Hz-20KHz
    Input impedance 2.2KΩ
    Maximum sound pressure level 110 dB (THD<3%)
    Donwload
    F2
