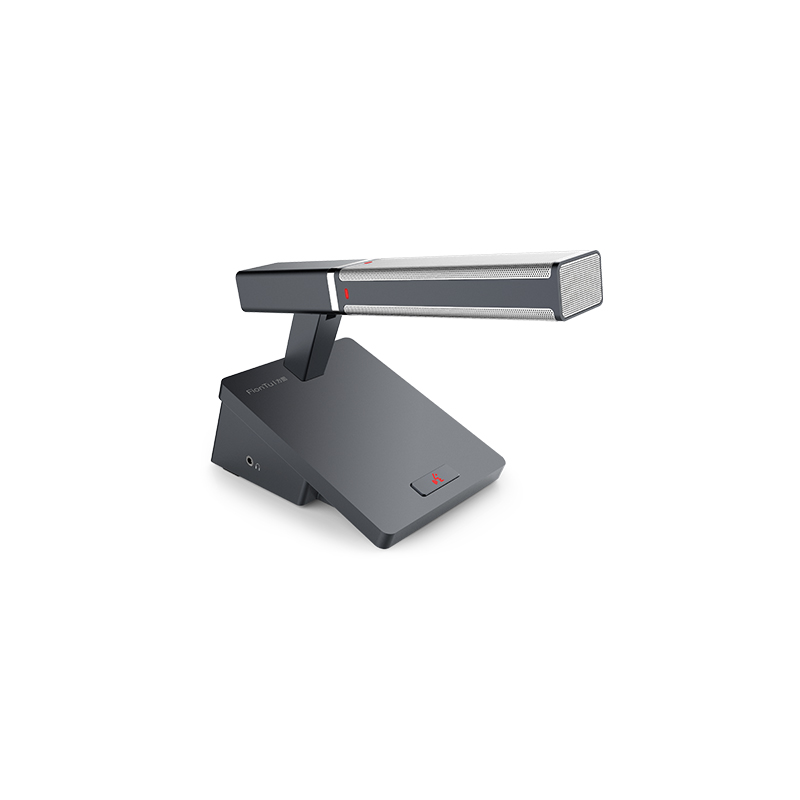

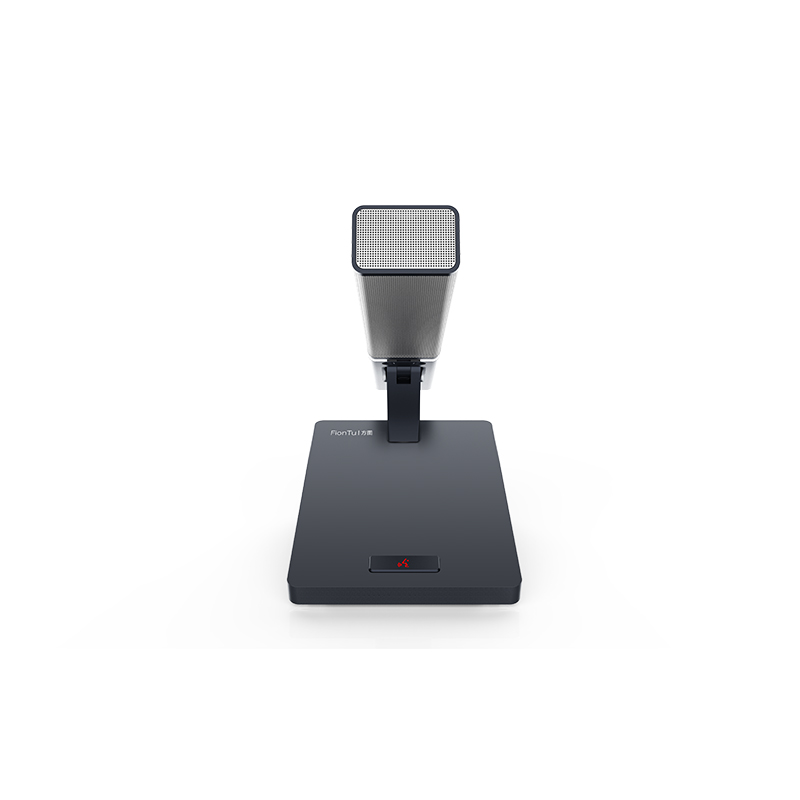

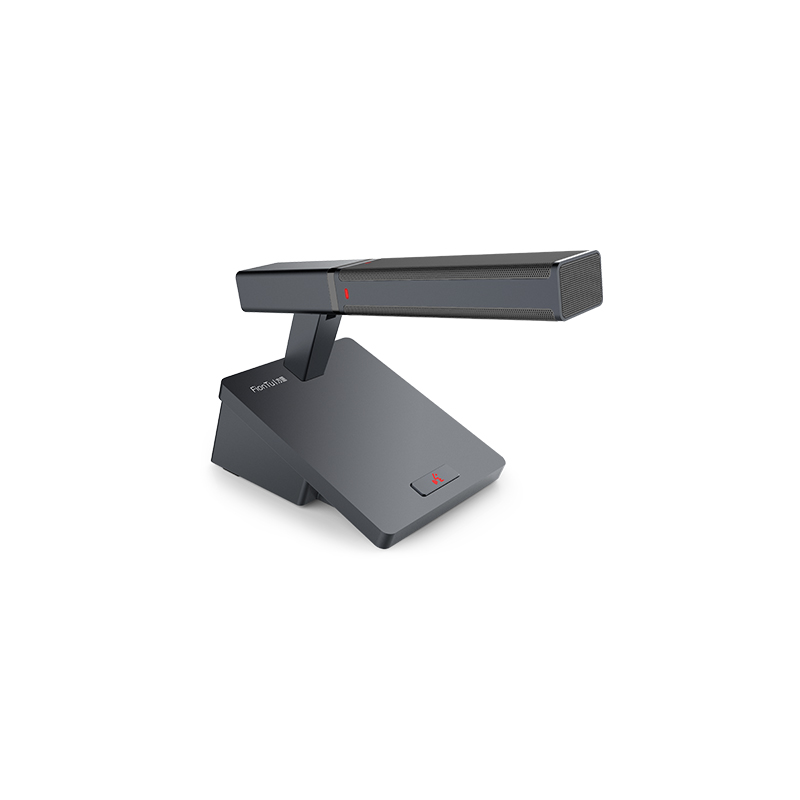

Analog conference unit G20 MD-L

This microphone system features dual backup design for high reliability with both phantom-powered and hand-in-hand systems. It offers customizable chairman unit configuration, ergonomic design, and adjustable microphone positioning. The system is optimized for clear sound with high performance, low distortion, and extensive connectivity.
Categories:
Get Quote
Category Tags , , , ,
Description
  • Adopting the dual backup design concept, it has a hand-in-hand conference system and a phantom-powered microphone dual system. The two links work independently to ensure the high reliability of the system
  • Built-in high-performance CPU, faster processing speed and better sound quality
  • Customized chairman unit configuration function, you can temporarily define any unit as a chairman unit according to on-site needs, and there is no limit on the number of chairman units
  • With the video switcher and camera, the camera can be automatically tracked after using the computer preset
  • The microphone can be adjusted from -50° to 45° (horizontal)
  • Exquisite and elegant tabletop structure, ergonomic, and very modern
    • Parameter
    Output frequency response 40Hz-16KHz
    Signal-to-noise ratio >74 dB
    Dynamic range >108 dB(1 KHz)
    Total harmonic distortion <0.05%
    Maximum power consumption 1.8W
    Phantom power supply 48V DC
    Headphone volume 10mW
    Headphone load >16 Ω
    Headphone output interface  Ø 3.5 mm stereo jack
    Shell material Zinc/aluminum alloy
    Connection method 6-core special + 2-core shielded composite cable
    Weight 1kg
    Color Brown
    Dimensions (mm)Length * Width * Height Microphone rod:200*34.5*23, base:138*98*54
    Microphone parameters
    Pickup microphone 14mm diameter gold-plated condenser microphone * 2
    Directional characteristics Supercardioid
    Sensitivity -28 dB
    Frequency response 30Hz-18KHz
    Input impedance  2.2KΩ
    Maximum sound pressure level 130 dB (THD<3%)
    Equivalent noise 25 dB-A
    Donwload
    G20 MD-L
