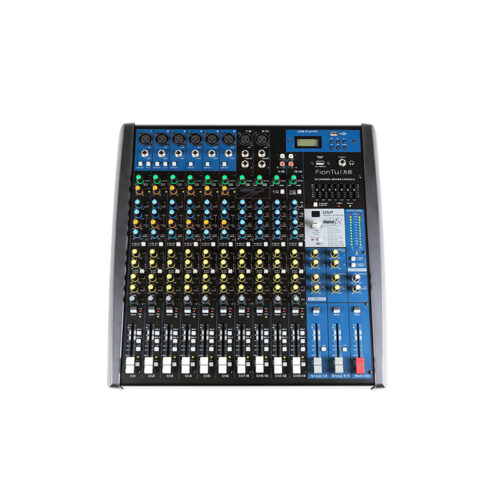

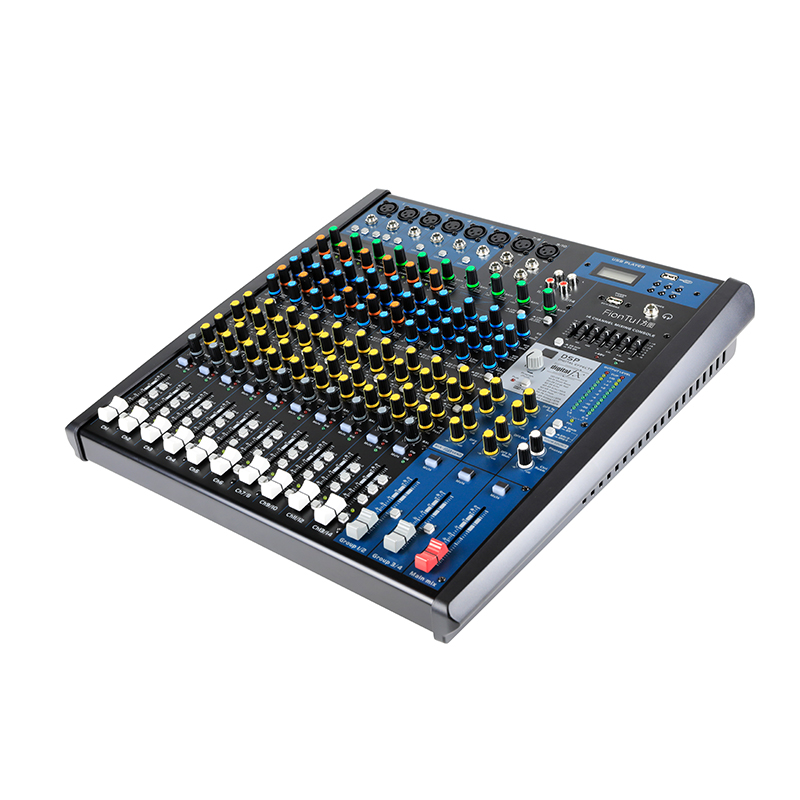

Analog Mixing Console FT-1404FB

This audio mixer features 8 XLR balanced microphone inputs, 6 line inputs, a 24-bit DSP effector with 99 preset modes, and a 3-band EQ per channel. It also offers 48V phantom power, a high-pass filter, compressor function, and precise attenuation faders. The mixer supports MP3 playback, and has a low total harmonic distortion (<0.005%) and excellent noise reduction (-100 dBu).
Categories:
Get Quote
Category Tags , , , ,
Description

  • Each channel has 3-band EQ control that can be switched on and off, 1-6 channels with intermediate frequency sweep, and peak LED indicator.
  • 1-2 channel input has HI-Z impedance switching function, which can be selected as needed.
  • 1-6 channel input has compressor function, which effectively protects the subsequent equipment.
  • 1-6 channel input has high-pass filter (low cut).
  • Built-in 24bit DSP digital effects, 99 modes to choose from.
  • 12-bit LED level indicator.
  • With four group outputs.
  • With reverse interface.
  • High-precision logarithmic attenuation fader, fader with dustproof net.
  • With MP3 player.
    • Parameter
    Input interface 8 gold-plated XLR balanced MIC input + 6 6.3mm line LINE inputs
    Gain Input channels with gain adjustment
    Phantom power 48V
    stereo input channels 4 lotus ports, 2 groups of stereo input channels
    Frequency response range 20Hz-50KHz
    Total harmonic distortion <0.005% @+4 dBu
    Noise -100 dBu
    Sensitivity 15 dB±3dB
    Crosstalk -90 dB@1 kHz
    Equalizer (mono) Treble：+/-15 dB@12 kHz Midrange：+/-15 dB@100Hz-3 kHz Bass： +/-15 dB@80 Hz
    Equalizer (stereo) Treble：+/-15 dB@12 kHz Mid-treble：+/-15 dB@3 kHz Mid-bass：+/-15 dB@500Hz Bass：+/-15 dB@80 Hz Maximum output level：+22 dBu Maximum input level：+30 dBu, Gain @+10 dB
    Input impedance Mic：2.6KΩ, balanced Stereo：20KΩ, balanced Auxiliary：20KΩ, balanced Recording：24KΩ, balanced
    Output impedance Main output：240Ω, balanced, 120Ω, unbalanced Auxiliary：120Ω, balanced Recording：1KΩ, balanced Headphone：25Ω, balanced
    DSP effects Yes
    D/A converter 24bit
    Preset mode 99
    Power supply 100-240 VAC, 50 Hz
    Actual dimensions (depth × width × height) 431 × 438 × 86mm
    Net weight 4.5Kg
    Donwload
    FT-1404FB
