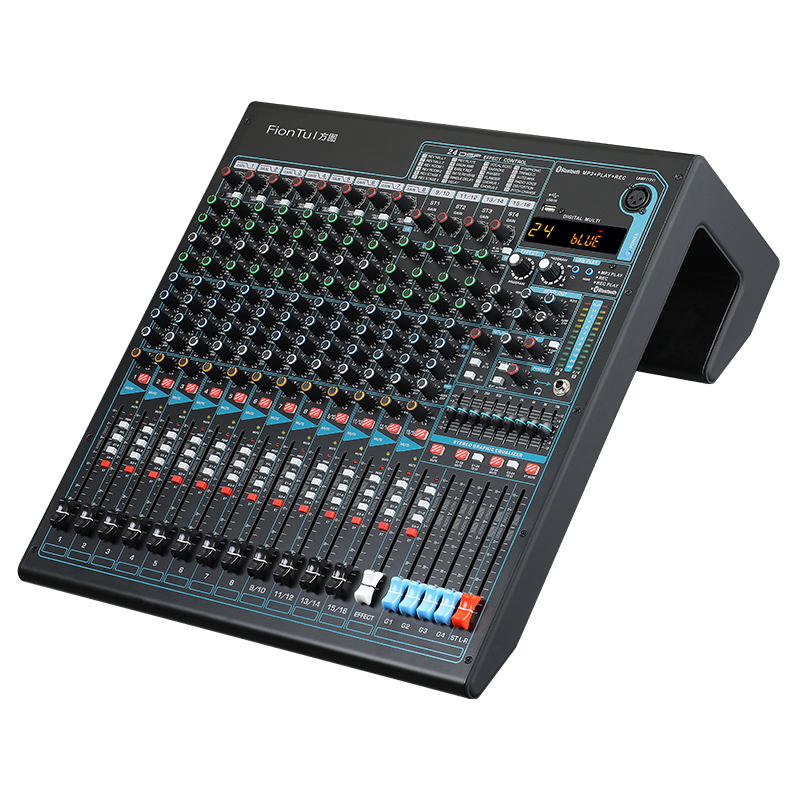

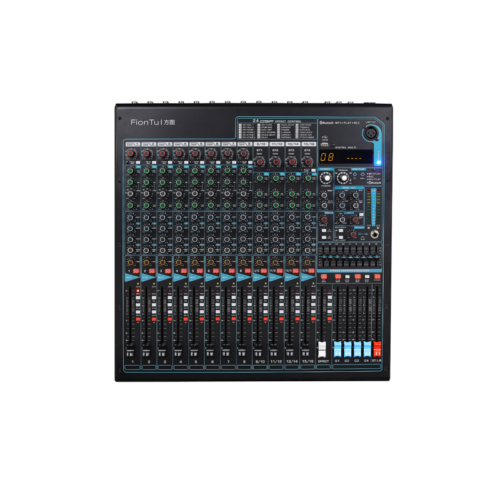

Analog Mixing Console FT-1604FA

This mixer features 12 MIC mono channels, 4 stereo inputs, and 24 DSP digital effects, with USB MP3 playback and recording. It includes 4 AUX outputs, built-in Bluetooth 5.0, a 9-band graphic equalizer, and a 48V phantom power supply with individual switches for each channel. The mixer also offers high-quality signal control with a 3-band parametric EQ, low-pass filter, and precise LED level lights.
Categories:
Get Quote
Category Tag
Description
  • 12 MIC mono channels, 4 stereo inputs
  • With 4 group outputs.
  • 4 AUX bus auxiliary outputs (including EFF).
  • 1 stereo return (assignable to main output or group output).
  • One set of monitor headphone outputs.
  • LPF low-pass filter output from stereo (60-150HZ adjustable).
  • Built-in 24 DSP digital effects.
  • Built-in USB player, MP3 playback, USB direct recording.
  • Built-in Bluetooth 5.0 receiving and playing.
  • USB audio sound card (connected to computer) transmits the sound played by the computer to the mixer.
  • Built-in 48V phantom power supply, each channel with independent switch.
  • Main output 9-band stereo graphic equalizer.
  • USB can be switched with one stereo, USB can be adjusted independently.
  • Mono channel 100HZ low-frequency attenuation switch (high-pass filter).
  • XLR input transistor dual differential microphone amplifier.
  • 3-band parametric equalization per channel, 80Hz..
  • Mono channel with (350Hz-3.5K mid-range sweep frequency). 12KHz.
  • MUTE switch for each input channel, PFL headphone switch.
  • Smooth 100MM travel fader.
  • 12-band precise three-color LED level light to display signal status.
  • 12V (LAMP) DJ light XLR interface.
  • Applicable to global power supply voltage, power 30 watts, flexible to use.

Parameter
Product size  465 x 500 x190MM
Packing size (inner box)  575x550x258MM
Outer box size  585x565x278MM
Gross weight  11.3KG
Net weight  8.3KG
Maximum output level  18dB
S/N signal-to-noise ratio  ≥83dB
Total harmonic distortion  ≤0.02% @ 0dB 1KHz
Frequency response  20Hz～20KHz±0.5dB
Channel crosstalk  <-75dB @ 1KHz
Input impedance  MIC:600Ω, LINE：10KΩ, output impedance: 100Ω
Microphone  MIC input:-60dB, Line input: -40dB
Stereo input impedance  10KΩ
Channel gain adjustment  -30dB
Three-band equalization adjustment range ±15dB
HI  12K Hz 15dB ±3dB
MID  2.5KHz 15dB ±3dB
LOW  80Hz 15dB ±3dB
Power output power  30W
Power voltage  100V-240V/50Hz
Donwload
FT-1604FA
