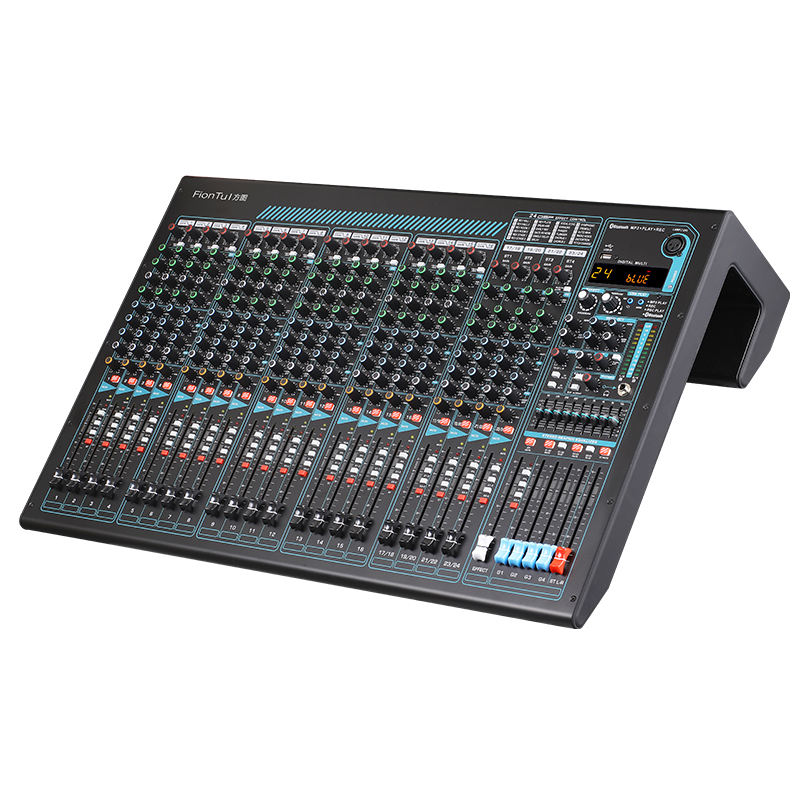

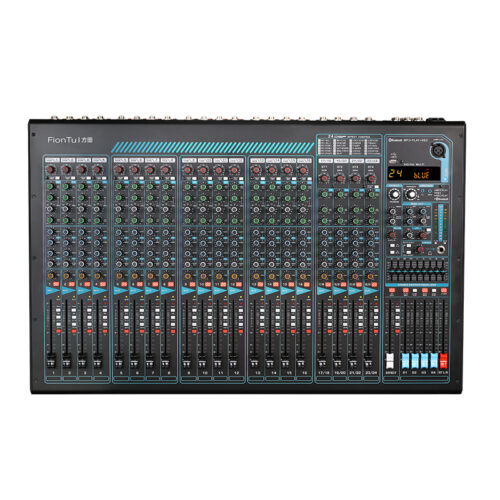

Analog Mixing Console FT-2404FA

This product is a versatile audio mixer with 20 mono channels, 4 stereo inputs, built-in DSP effects, Bluetooth 5.0, USB playback, and USB audio interface functionality. It offers a 48V phantom power supply, 3-band EQ per channel, and a 9-band stereo graphic equalizer. The device is equipped with high-quality components, including a low-noise, high-performance microphone amplifier and adjustable filters.
Categories:
Description
  • 20 MIC mono channels, 4 stereo inputs.
  • With 4 group outputs.
  • 4 AUX bus auxiliary outputs (including EFF).
  • 1 stereo return (assignable to main output or group output).
  • One set of monitor headphone outputs.
  • LPF low-pass filter output from stereo (60-150HZ adjustable).
  • Built-in 24 DSP digital effects.
  • Built-in USB player, MP3 playback, USB direct recording.
  • Built-in Bluetooth 5.0 receiving and playing.
  • USB audio sound card (connected to computer) transmits the sound played by the computer to the mixer.
  • Built-in 48V phantom power supply, each channel with independent switch.
  • Main output 9-band stereo graphic equalizer.
  • USB can be switched with one stereo, USB can be adjusted independently.
  • Mono channel 100HZ low-frequency attenuation switch (high-pass filter).
  • XLR input transistor dual differential microphone amplifier.
  • 3-band parametric equalization per channel, 80Hz.
  • Mono channel with (350Hz-3.5K mid-range sweep frequency). 12KHz.
  • MUTE switch for each input channel, PFL headphone switch.
  • Smooth 100MM travel fader.
  • 12-segment precise three-color LED level light to display signal status.
  • 12V (LAMP) DJ light XLR interface.
  • Applicable to global power supply voltage, power 30 watts, flexible to use.
  • Parameter
    Product size  750 x 500 x 190MM
    Packing size (inner box)  820 x 575 x 258MM
    Outer box size  835 x 590 x 278MM
    Net weight  12.5KG
    Gross weight  16.1KG
    Maximum output level  18dB
    S/N signal-to-noise ratio  ≥83dB
    Total harmonic distortion  ≤0.02% @ 0dB 1KHz
    Frequency response  20Hz~20KHz±0.5dB
    Channel crosstalk  <-75dB @ 1KHz
    Input impedance  MIC:600Ω, LINE:10KΩ, output impedance:100Ω
    Microphone  MIC input:-60dB, Line input:-40dB
    Stereo input impedance  10KΩ
    Channel gain adjustment  -30dB
    Three-band equalization adjustment range ±15dB
    HI  12K Hz 15dB ±3dB
    MID  2.5KHz 15dB ±3dB
    LOW  80Hz 15dB ±3dB
    Power output power  30W
    Power voltage  100V-240V/50Hz
