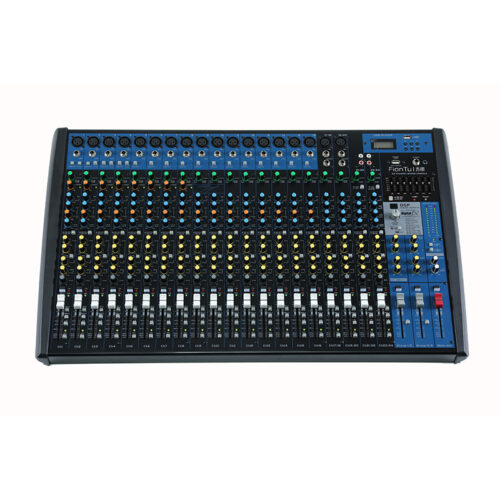

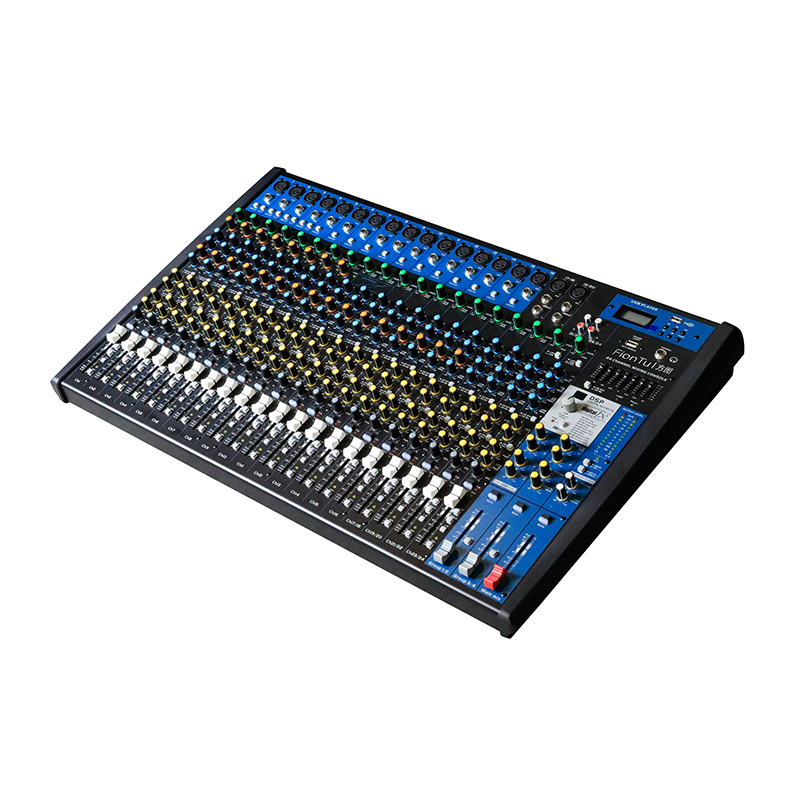

Analog Mixing Console FT-2404FB

This audio mixer offers 18 XLR mic inputs, 16 line inputs, and built-in 24-bit DSP with 99 preset effects. It features a 3-band EQ, compressor, high-pass filters, and 48V phantom power for versatile audio control. The mixer also provides low distortion, noise reduction, and MP3 playback capabilities.
Categories:
Get Quote
Category Tags , , , ,
Description
  • Each channel has 3-band EQ control that can be switched on and off, 1-16 channels with intermediate frequency sweep, and peak LED indicator.
  • 1-4 inputs have HI-Z impedance switching function, which can be selected as needed.
  • 1-8 inputs have compressor function to effectively protect the subsequent equipment.
  • 1-16 inputs have high-pass filter (low cut).
  • Built-in 24bit DSP digital effects, 99 modes to choose from. 6.12-bit LED level indicator. 7.Equipped with four group outputs. 8.Equipped with return interface. 9.High-precision logarithmic attenuation fader, fader with dustproof net. 10.With MP3 player.
    • Parameter
    Input interface 18 gold-plated XLR balanced MIC input + 16 6.3mm line LINE inputs
    Gain Input channels with gain adjustment
    Phantom power 48V
    stereo input channels 4 lotus ports, 2 groups of stereo input channels
    Frequency response range 10Hz-55KHz
    Total harmonic distortion <0.005% @+4 dBu
    Mono gain 0 dB to 50 dB (MIC), balanced
    Stereo gain +15 dBu to -35 dBu
    Noise -100 dBu
    Sensitivity 15 dB±3dB
    Crosstalk -90 dB@1 kHz
    Equalizer (mono) Treble:+/-15 dB@12 kHz Midrange:+/-15 dB@100Hz-3 kHz Bass:+/-15 dB@80 Hz
    Equalizer (stereo) Treble:+/-15 dB@12 kHz Mid-treble:+/-15 dB@3 kHz Mid-bass:+/-15 dB@500Hz Bass:+/-15 dB@80 Hz Maximum output level:+22 dBu Maximum input level:+30 dBu, Gain @+10 dB
    Input impedance Microphone:2.6KΩ, balanced Stereo:20KΩ, balanced Auxiliary:20KΩ, balanced Recording:24KΩ, balanced
    Output impedance Main output:240Ω, balanced, 120Ω, unbalanced Auxiliary:120Ω, balanced Recording:1KΩ, balanced Headphone:25Ω, balanced
    DSP effector Yes
    D/A converter 24bit
    Preset mode 99
    Power supply 100-240 VAC, 50 Hz
    Actual size (D×W×H) 431×718×86mm
    Net weight 5.5Kg
    Donwload
    FT-2404FB
