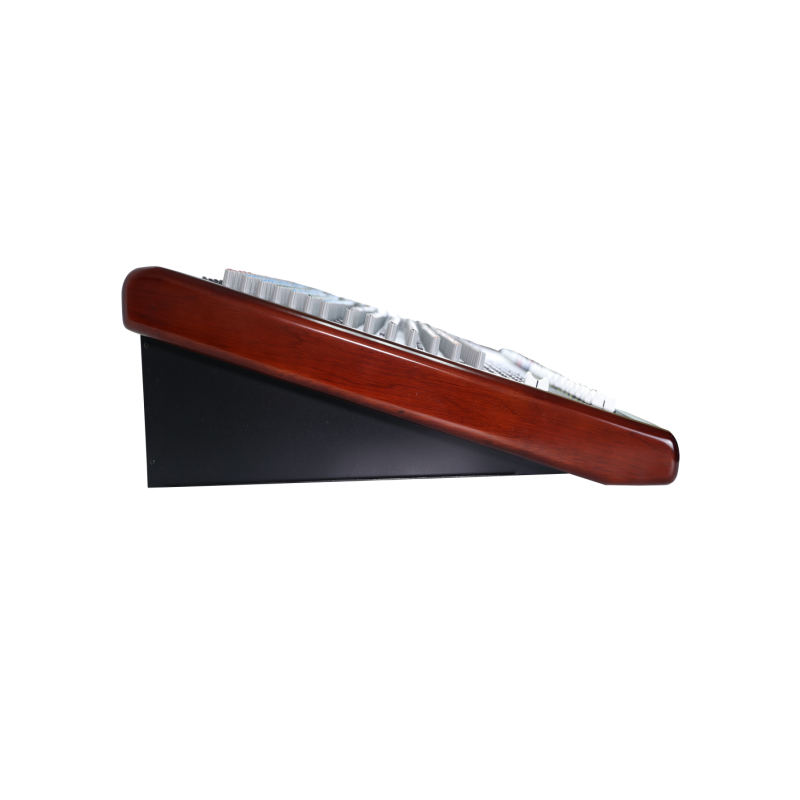

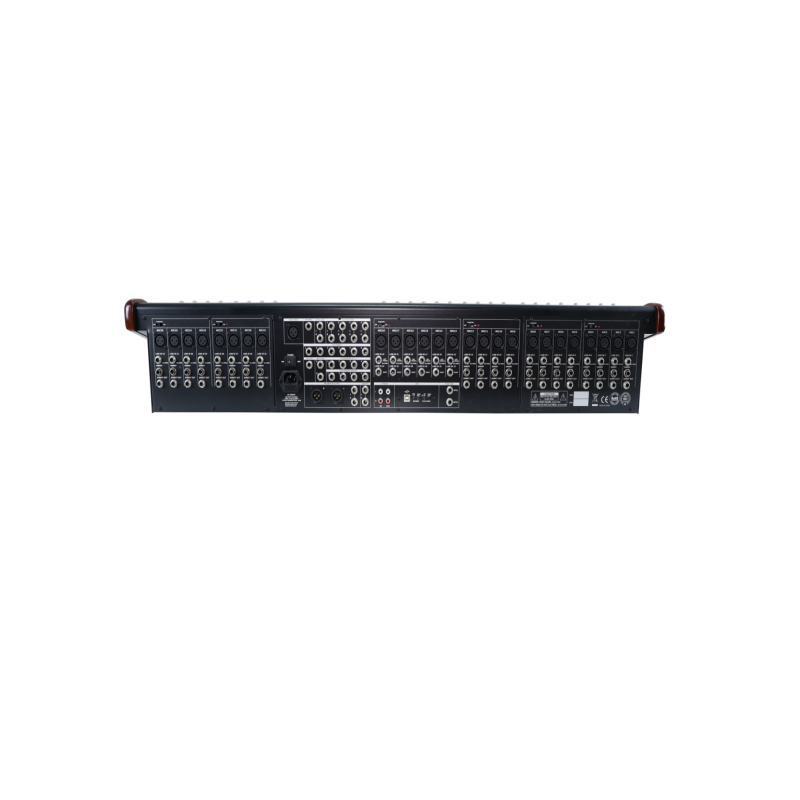

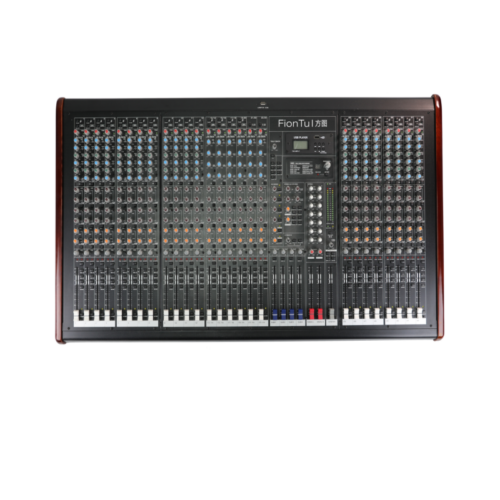

Analog Mixing Console FT-3204FX

This 32-channel audio mixer offers a variety of input options, including 26 XLR mic inputs, 20 single-channel 6.35mm inputs, and 6 balanced stereo inputs. It features high-quality phantom power, customizable digital effects, and precise EQ controls for both mono and stereo channels. Additional functions include USB sound card input, one-button mute, and optional digital modules.
Categories:
Get Quote
Category Tags , , , ,
Description
  • 1.32 channels: 26 XLR interfaces support MIC input + 20 single-channel 6.35MM input interfaces + 6 balanced 6.35MM stereo input channels 2.6 bus (stereo + 4 grouping) outputs, 6 AUX auxiliary outputs. 3.4 stereo AUX return channels.
  • Microphone provides high-quality +48V phantom power.
  • Microphone preamplifier and precise equalization circuit.
  • Mono input channel 6-band sweep EQ control, stereo input channel 4-band EQ control, with EQ effect switch button.
  • Input channel one-button mute function.
  • High-precision attenuation fader, with dustproof net.
  • 12-bit LED light level display, accurately display the size of the output signal level.
  • With low-cut function.
  • USB computer sound card input function.
  • Two default 24-bit digital effects.
  • The digital effect module is replaceable, optional modules: USB playback module, 9-band equalizer module, DSP effect module.
  • USB power supply interface, can power the lighting.

Parameter
Input interface 26-channel XLR interface supports MIC input + 20-channel single-channel 6.35MM input interface + 6 sets of balanced 6.35MM stereo input channels
Gain Gain on the mono/microphone input channel
Phantom power 48V
Noise -100 dBu
Frequency response range 10Hz——55KHz
Total harmonic distortion <0.005% @+4 dBu
Crosstalk -90 dB@1 kHz
Mono gain 0 dB to 50 dB (MIC), balanced
Stereo gain +15 dBu to -35 dBu
Sensitivity 15 dB±3dB
Maximum output level +22 dBu
Maximum input level +30 dBu, Gain @+10 dB
Input impedance Microphone:2.6KΩ, balanced Stereo:20KΩ, balanced Auxiliary:20KΩ, balanced Recording:24KΩ, balanced
Output impedance Main output:240Ω, balanced, 120Ω, unbalanced Auxiliary:120Ω, balanced Recording:1KΩ, balanced Headphone:25Ω, balanced
Equalizer (mono) Treble:+/-15 dB@12 kHz Midrange:+/-15 dB@100Hz-3 kHz Bass:+/-15 dB@80 Hz
Equalizer (stereo) Treble:+/-15 dB@12 kHz Mid-treble:+/-12 dB@3 kHz Mid-treble sweep:+/-12dB@100Hz - 8kHz Mid-bass:+/-15 dB@500Hz Bass:+/-15 dB@80 Hz
DSP effects Yes
D/A converter 24bit
Preset mode 99
Power supply 210-240 VAC, 50 Hz
Actual dimensions (D×W×H) 530×1020×190mm
Net weight 19.42Kg
Input interface 26-channel XLR interface supports MIC input + 20-channel single-channel 6.35MM input interface + 6 sets of balanced 6.35MM stereo input channels
Gain Gain on the mono/microphone input channel
Phantom power 48V
Noise -100 dBu
Frequency response range 10Hz——55KHz
Total harmonic distortion <0.005% @+4 dBu
Crosstalk -90 dB@1 kHz
Mono gain 0 dB to 50 dB (MIC), balanced
Stereo gain +15 dBu to -35 dBu
Sensitivity 15 dB±3dB
Maximum output level +22 dBu
Maximum input level +30 dBu, Gain @+10 dB
Input impedance Microphone:2.6KΩ, balanced Stereo:20KΩ, balanced Auxiliary:20KΩ, balanced Recording:24KΩ, balanced
Output impedance Main output:240Ω, balanced, 120Ω, unbalanced Auxiliary:120Ω, balanced Recording:1KΩ, balanced Headphone:25Ω, balanced
Equalizer (mono) Treble:+/-15 dB@12 kHz Midrange:+/-15 dB@100Hz-3 kHz Bass:+/-15 dB@80 Hz
Equalizer (stereo) Treble:+/-15 dB@12 kHz Mid-treble:+/-12 dB@3 kHz Mid-treble sweep:+/-12dB@100Hz - 8kHz Mid-bass:+/-15 dB@500Hz Bass:+/-15 dB@80 Hz
DSP effects Yes
D/A converter 24bit
Preset mode 99
Power supply 210-240 VAC, 50 Hz
Actual dimensions (D×W×H) 530×1020×190mm
