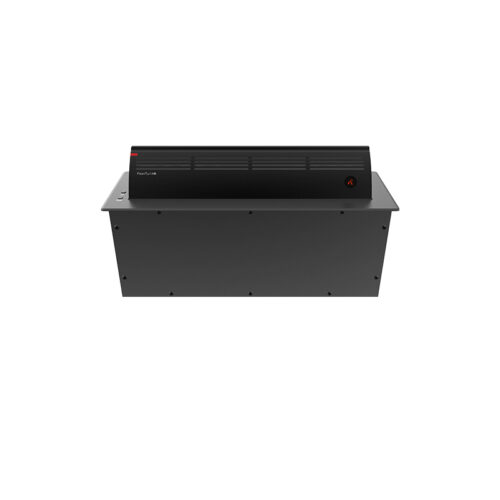

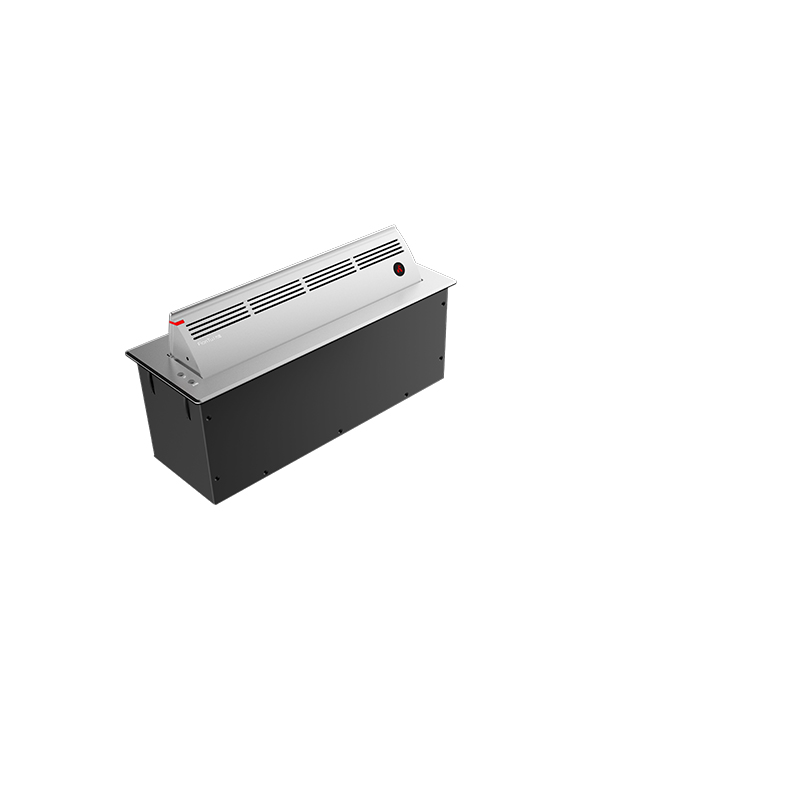

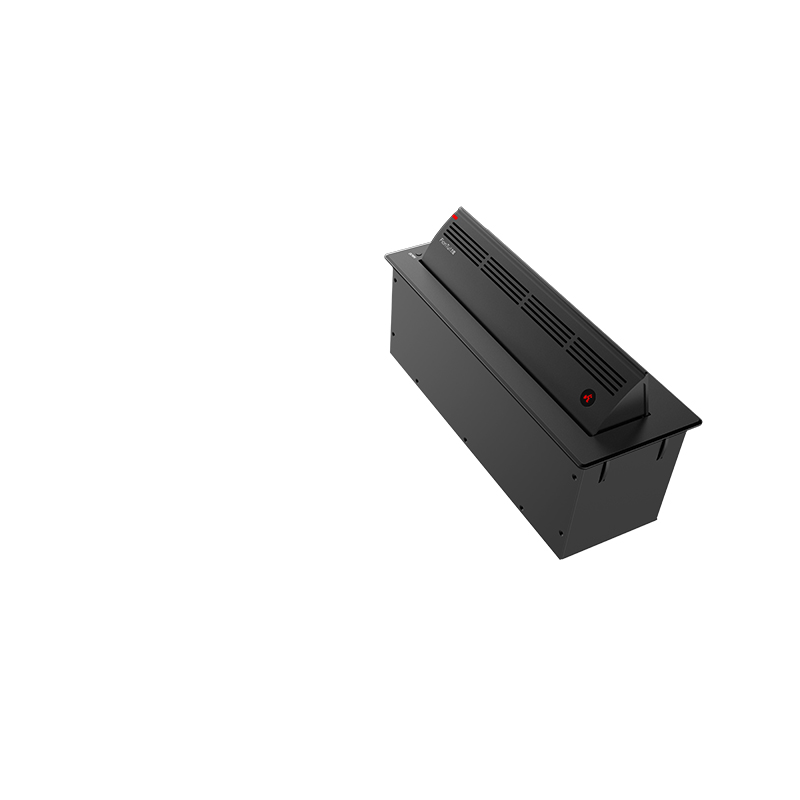

Array conference unit F6 D

This microphone features a gooseneck-free design with 21 array microphones for precise directional sound pickup. It uses IP network technology for low-latency, high-precision audio transmission and is powered by POE, integrating easily with Dante-based audio networks. The system offers adjustable gain, electric control flip for easy setup, and a sleek, embedded installation design with a touch-type switch.
Categories:
Get Quote
Category Tags , , , ,
Description
  • Gooseneck-free design, taking into account the sound quality of analog capacitors and the directional sound receiving characteristics of array DMA
  • Based on IP network technology, it provides low-latency, high-precision digital audio transmission for point-to-point audio connections
  • Smaller latency and high network compatibility
  • Stable and reliable, accurately restore audio signals
  • Powered by POE switch, connected to the Dante-based audio network, to achieve network connection between microphones and power amplifiers, mixers, and audio processors
  • The microphone can be placed at will, and the pickup range can be accurately controlled, effectively improving the sound transmission of the system
  • Built-in 21 microphone heads, broadband pickup, long pickup distance, good directivity, and excellent sound quality
  • Hidden adjustable gain knob, the entire system can be quickly set up according to the on-site sound reinforcement conditions
  • Speakers and participants can communicate without obstacles and have better visual effects
  • Embedded installation, electric control flip, easy operation, neat and beautiful desktop
  • The shell adopts one-piece molding and CNC machine tool precision processing technology
  • Touch-type speaking switch, simple and convenient
    • Parameter
    Pickup technology Array microphone pickup
    Number of microphones 21 pcs
    Pickup microphone 9.7mm diameter gold-plated capacitor
    Directional characteristics Directional broadband
    Sensitivity -38 dB
    Frequency response 20Hz-20KHz
    Signal-to-noise ratio >80 dB
    Dynamic range >95dB
    Total harmonic distortion <0.05%
    Power consumption 1.5W/10W (when flipped)
    Output impedance <200Ω
    Maximum sound pressure level 110 dB (THD<3%)
    Shell material Aluminum alloy + sheet metal
    Microphone power supply POE IEEE 802.3af ,IEEE 802.3a
    Control interface RJ45 network port, connected to POE switch
    Electric control power supply AC85-265V 50Hz
    Microphone connection method Standard network cable
    Color Black, Silver
    Weight 3kg
    Dimensions (mm) Length * Width * Height 340 * 123 * 130.5 (whole machine closed)
    Donwload
    F6 D
