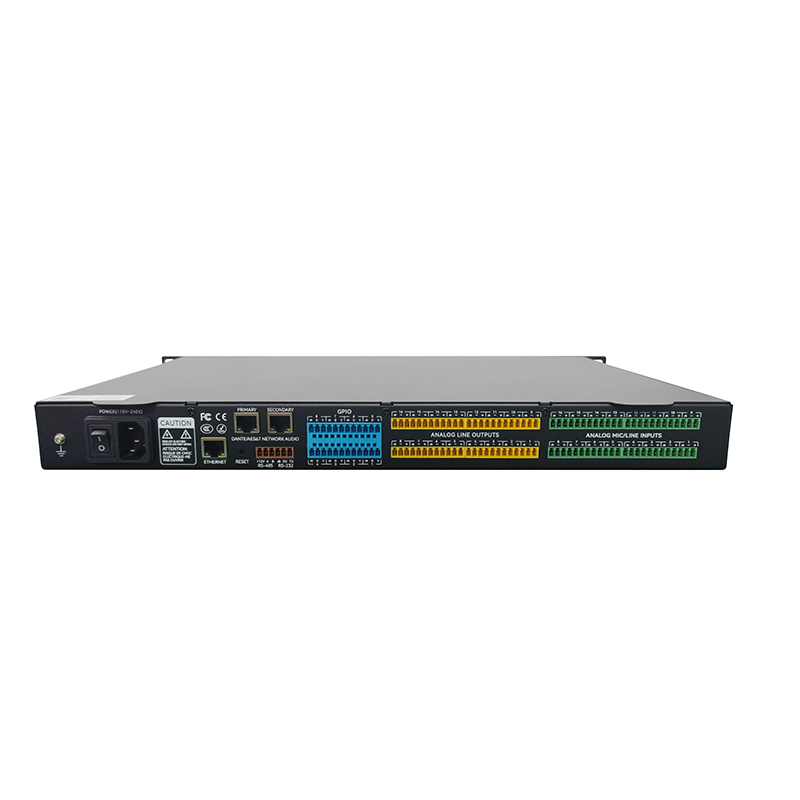

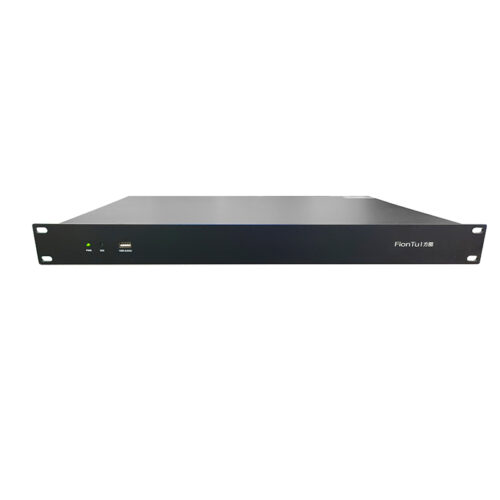

Audio Processor FT-DSP1616AD

This audio processor offers 16 analog and 16 Dante input/output channels, powered by dual ADI SHARC 21489 processors. It supports advanced audio processing features like echo cancellation, feedback suppression, and noise suppression, along with a 12-band parametric equalizer. The device also provides USB sound card functionality, customizable operation interface, and centralized control via RS232, RS485, and UDP.
Categories:
Get Quote
Category Tags , , , ,
Description
  • Analog input channels: 16
  • Analog output channels: 16
  • Dante input channels: 16
  • Dante output channels: 16
  • Processor: ADI SHARC 21489@450 MHz SIMDx2
  • DSP processing power: 400 MIPS, 1.6 GFLOPS
  • Sampling rate: 48 kHz, ± 100 ppm
  • THD+N: <-94dB @4dBu
  • Input dynamic range: 110dB
  • Output dynamic range: 112dB
  • The processing module is configurable and can be replaced freely according to needs
  • Provide 8 devices for simultaneous online operation
  • Built-in USB sound card, supports music playback, recording and soft video conferencing (such as: ZOOM, Tencent Conference, DingTalk Conference, etc.)
  • Bus-type AEC, tail time: 512ms, convergence rate: 60dB/S, Echo cancellation amplitude: 60dB
  • Independent channel AFC (feedback suppression), using notch algorithm, transmission gain improvement amplitude: 10dB
  • Noise suppression (ANS), signal-to-noise ratio improvement of 18dB
  • Ducker
  • Noise gain compensator (ANC)
  • Gain sharing automatic mixing (AMC), threshold automatic mixing (Gate Mixer)
  • 12-band British parametric equalization, providing 5 filter options: Parametric, Lowshelf, Highshelf, Lowpass, Highpass
  • Provide terminal users with customized operation interface, support up to 30 devices with the same interface management
  • Support camera tracking
  • With 8 GPIOs
  • With central control function, support RS232, RS485, UDP three control methods, can control the power supply, signal switching, environmental control, audio and other overall control in the system, and realize the functions required for one-click system opening
    • Parameter
    Processor ADI SHARC 21489 x2
    Sampling rate/quantization bit 48K/24bit
    Number of analog input and output channels 16 x 16
    Number of Dante input and output channels 16 x 16
    Input gain 0/3/6/9/12/15/18/21/24/27/30/33/36/39/42/45/48 dBu
    Phantom power +48V/10mA max
    Frequency response (20~20kHz) ±0.3dB
    Maximum level +18dBu
    THD+N <-94dB @4dBu
    Input dynamic range 110dB
    Output dynamic range 112dB
    Channel isolation @1kHz 108dB
    Input impedance (balanced connection) 5.4KΩ
    Output impedance (balanced connection) 600Ω
    System delay <6ms
    Working power supply AC110~240V, 50Hz/60Hz
    Dimensions (width x depth x height) 482 x 260 x 45mm
    Shipping weight 4KG
