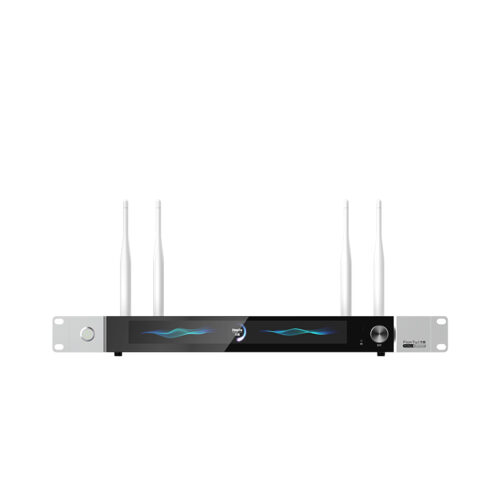

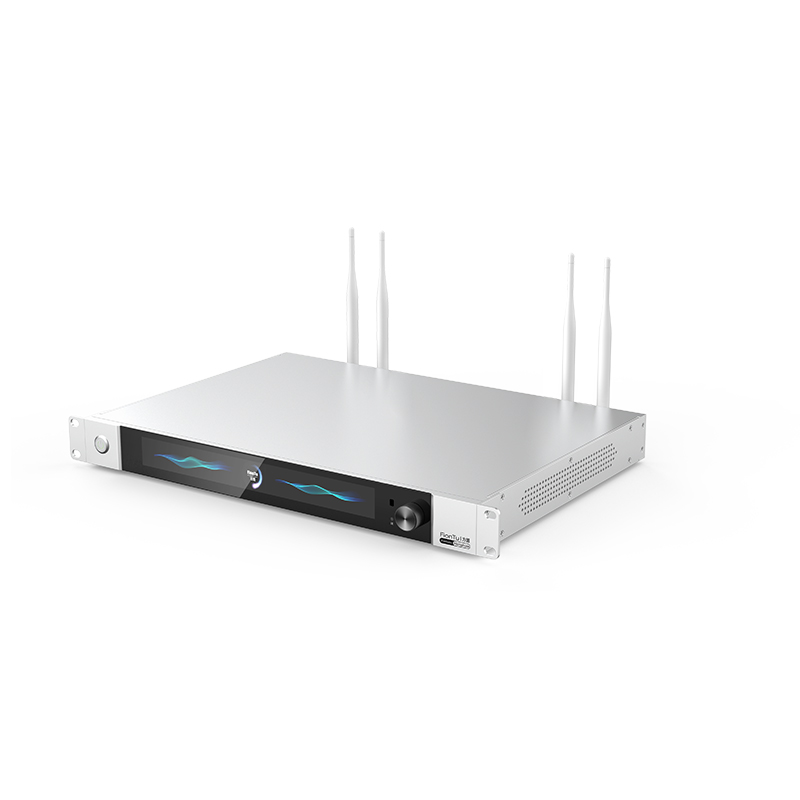

Beidou professional wireless receiver BD6-U2A

This wireless receiver features an all-aluminum 1U chassis with an 11-inch color LCD for enhanced user interaction. It employs advanced digital wireless technology and dual diversity reception to ensure stable signal transmission. The device also supports flexible power adjustments, intelligent mute, and real-time spectrum monitoring, ideal for professional audio environments.
Categories:
Get Quote
Category Tags , , , ,
Description
  • Made of integrated all-aluminum alloy material to build a 1U chassis, the overall structure is exquisite and detailed
  • For the first time in the industry, it is equipped with an 11-inch color LCD display, which can display product information in detail and enhance the overall user experience
  • Adopt new digital wireless communication technology, combined with independently developed e ncryption algorithms, to effectively prevent frequency channeling and improve anti-interference capabilities
  • Use advanced wireless frequency band management technology to rationally plan the use of frequency points and significantly reduce potential mutual interference between frequency points
  • Built-in high-quality switching power supply, wide voltage stabilization range, high efficiency, low energy consumption and anti-interference, ensuring stable operation of the equipment
  • Adopt a convenient and intuitive shuttle knob design to replace the traditional complex button operation mode and simplify the operation process
  • Supports a variety of gesture operations, enabling contactless operation and control of the receiver
  • True diversity receiving host system, each channel adopts the dual receiving mechanism of channel diversity and antenna diversity to maximize the elimination of receiving dead spots and ensure the continuous stability and reliability of signal reception
  • Supports one-click screen lock to prevent misoperation. The device will automatically enter the screen saver state after no operation, improving the aesthetics of the product
  • The antenna interface integrates 9V voltage supply capability, which can directly connect and drive the active high-gain antenna without additional power supply, improving signal capture performance
  • Supports infrared frequency binding and can be paired with handheld microphones, bodypack microphones, and wireless conference microphones
  • Supports the channel color label function and matches the color indicator light on the microphone. Users can intuitively identify the corresponding connected receiver channels through the indicator lights of different colors on the microphone, achieving simple and efficient channel identification and management
  • Supports the transmit power adjustment function, allowing users to flexibly adjust the transmit power of the transmitter according to actual application scenarios and distance requirements, ensuring the best balance between signal coverage and energy consumption
  • Clear sound quality transmission supports perfect restoration of speech: up to 96kHz sampling rate is supported, and 32kHz/48kHz/96kHz sampling rate is optional
  • Supports real-time spectrum display system, which can display frequency signal strength within the frequency band in real time
  • With automatic frequency scanning function, you can find clean and interference-free frequency points with one click
  • Audio effect adjustment function: reverberation effect mode and feedback suppression mode can be turned on
  • Support scene preset function: optional conference mode, singing mode, handheld mode and custom mode
  • Support intelligent mute mode: optionally turn on the channel mute after 0/5/10 seconds when there is no speech, and automatically turn off the mute function when speaking
  • The system interface supports bilingual display in Chinese and English
  • Support central control: volume adjustment, frequency switching, mode switching and other operations can be controlled
    • Parameter
    Modulation method pi/4 DQPSK digital wireless technology
    Diversity principle channel + antenna dual diversity reception, intelligent switching, no human intervention required
    Frequency range 660.05-685.05MHz
    Number of frequency points 51 (default), high-density mode can be customized, supporting more than 200 frequency points
    Signal-to-noise ratio ≥98dBA
    Frequency response 20-20KHz
    Total harmonic distortion ≤0.5%
    Output impedance 200 ohms (analog single/mixed output)

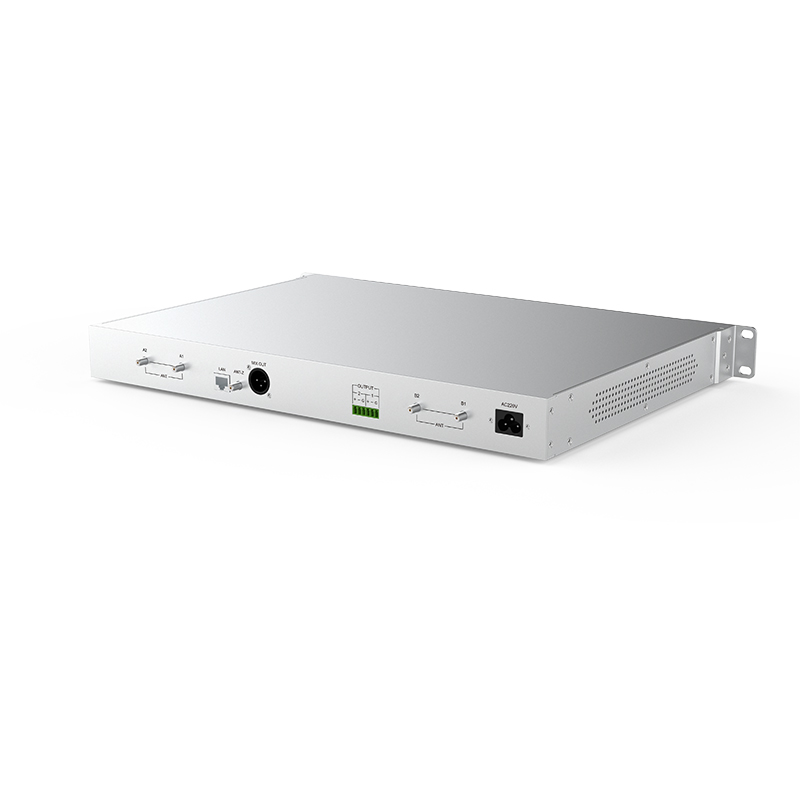

    Number of analog output interfaces 2 Phoenix terminal single output + 1 XLR mixed output
    Antenna interface SMA interface
    Number of antenna interfaces 5
    Antenna power supply voltage 9V
    Number of channel custom colors 8 (green, red, blue, orange, blue-green, lavender, dark purple, none)
    Number of scene modes 6 (3 factory presets + 3 customized)
    Sampling rate 32K/48K/96K optional
    Intelligent mute optional opening time 0S/5S/10S
    Display language Chinese/English
    Audio output interface XLR male (mixed analog output), Phoenix terminal (single analog output)
    Receiving distance 180m (open space without interference)
    Power input 100-240V~0.75A 50/60Hz
    Shell material aluminum alloy
    Size 440*313*44mm (length*width*height, excluding ear hooks)
    Donwload
    BD6-U2A
