column speaker FT-L813

This array sound column speaker is designed for medium to long-distance sound reinforcement in complex acoustic environments. It features 8x3-inch woofers, a neodymium tweeter, and advanced beam projection technology for precise, uniform sound with a 160° horizontal and 30° vertical diffusion angle. Its durable ABS and glass fiber construction is suitable for diverse architectural spaces.
Categories:
Get Quote
Category Tags , , , ,
Description
  • The array sound column speaker adopts a streamlined design, with a beautiful and practical appearance, suitable for sound reinforcement in various architectural spaces, and has beautiful sound quality.
  • It has precise beam projection pointing technology and unique acoustic performance advantages.
  • It provides an audio product that achieves a balance between performance and price for occasions where beam controllable guidance technology is applied.
  • The high-performance array sound column can provide good sound reinforcement for some complex environments with high natural reverberation coefficients, echoes, and architectural obstacles in the language and music listening space.
  • It has a precise 30-degree vertical diffusion angle, and the sound is linearly broadcasted through the comb coupling principle. 8 specially made 3-inch ferrite units combined with 1 1-inch high-performance neodymium metal high-frequency unit make this array sound column have a uniform and symmetrical 160-degree horizontal diffusion angle.
  • The front panel of the sound column is designed with 9 asymmetric circular waveguides and the damping of the cabinet to form a unique low-frequency heart-shaped diffusion, the sound performance is natural and thick, and the low frequency sinking is full and powerful.
  • It is particularly suitable for use in the environment of medium and long-distance sound reinforcement range, and can also be used with FT-L403/FT-L403G array sound column in various indoor architectural spaces.
Parameter
Woofer specifications  8x3
Tweeter  1x1 Neodymium tweeter, pre-compression equalizer device
Frequency response range  100Hz~20kHz
Impedance  4Ω
Rated power  300W
Maximum carrying power  1200W
Sensitivity (1W/1m)  96dB
Maximum sound pressure level in the specified frequency band (peak)  126dB
Diffusion angle (-6dB)  Vertical:30°, horizontal:160°
Box material  ABS mixed with glass fiber reinforced box
Guide system  9 asymmetric circular waveguide ducts in front
Box color  black/white (optional)
Aluminum mesh color  black/white (optional)
Iron mesh hole type  round hole
Lifting method  bracket-type adjustable angle wall mounting/embedded
Connection method  red and black wire clamp

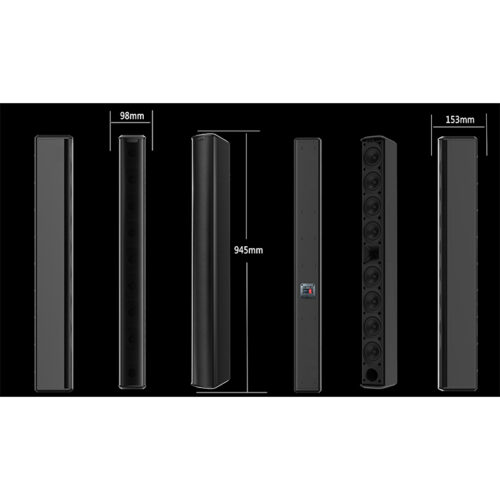

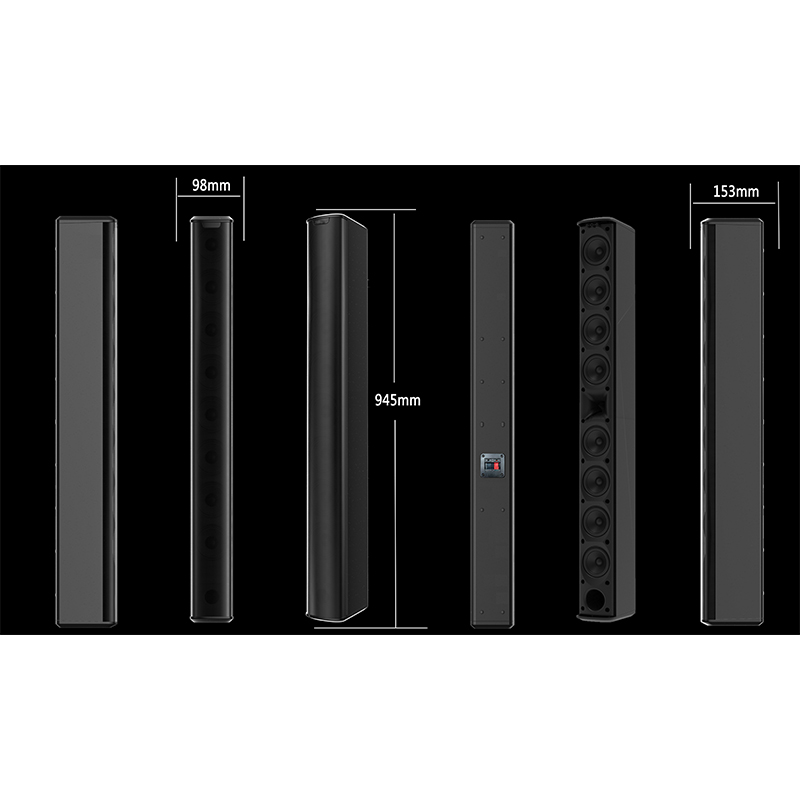

Dimensions (height x width x depth)  945x98x153mm
Donwload
FT-L813
