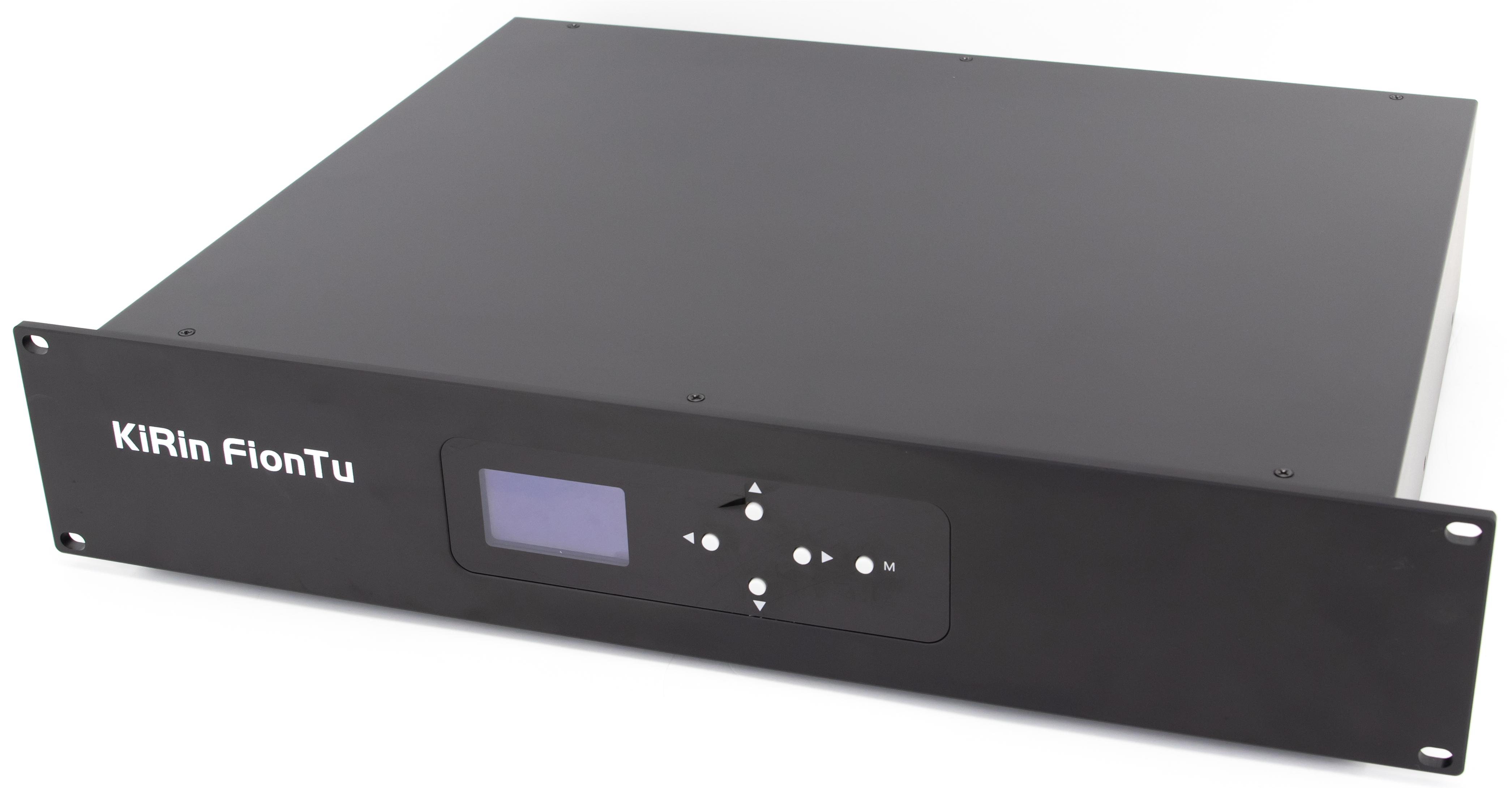

Conference Host T3-AL01M

A high-speed digital conference system with CD-quality audio processing, built-in video tracking for up to 6 PTZ cameras, and multiple microphone management modes. It uses TCP/IP for communication, supports RS232/RS485 for central control, and offers flexible expansion with XLR and Phoenix terminals. Ensures system stability, security, and automatic repair with hot-plugging support.
Categories: ,
Get Quote
Categories , Tags , , , ,
Description
Parameter
Microphone capacity  150 Frequency response  30Hz-20KHz
Signal-to-noise ratio  82 dB(A) Dynamic range  90 dB
Channel isolation  86 dB Total harmonic distortion  0.05%
Main power supply  AC100-240V 5A 50 - 60Hz Audio input  775mV balanced
Audio output  1V balanced Output load  1KΩ
Maximum power consumption  150 W Audio input interface  XLR *1
Audio output interface  XLR *2; Phoenix terminal *2 Control interface  RS232/RS485/ RJ45 network port
Unit interface  Large six-core DIN *4 Color  black
Host size length * width * height  483*360*100.5mm Weight  5.26kg
Donwload
T3-AL01M
