Conference recording host FT-810A

The FT-810A is a stable embedded conference recording and broadcasting device supporting 1080P@60fps video input, H.264/H.265 encoding, and multi-mode recording/live streaming. It features 4 HDMI inputs, dual video outputs, and versatile storage options, with remote and local operation capabilities. Designed for professional use, it supports picture-in-picture, split-screen, and network protocols for seamless integration.
Categories:
Get Quote
Category Tags , , , ,
Description
  • Purely embedded integrated architecture of software and hardware, stable and reliable
  • Video can support 1920*1080 resolution from acquisition, recording to output
  • H.264/H.265 advanced video compression technology
  • Support 4-channel 1080P video synchronous acquisition and recording, 2-channel 1080P video synchronous output
    • Parameter
    Specification:
  • System structure: Embedded Linux system

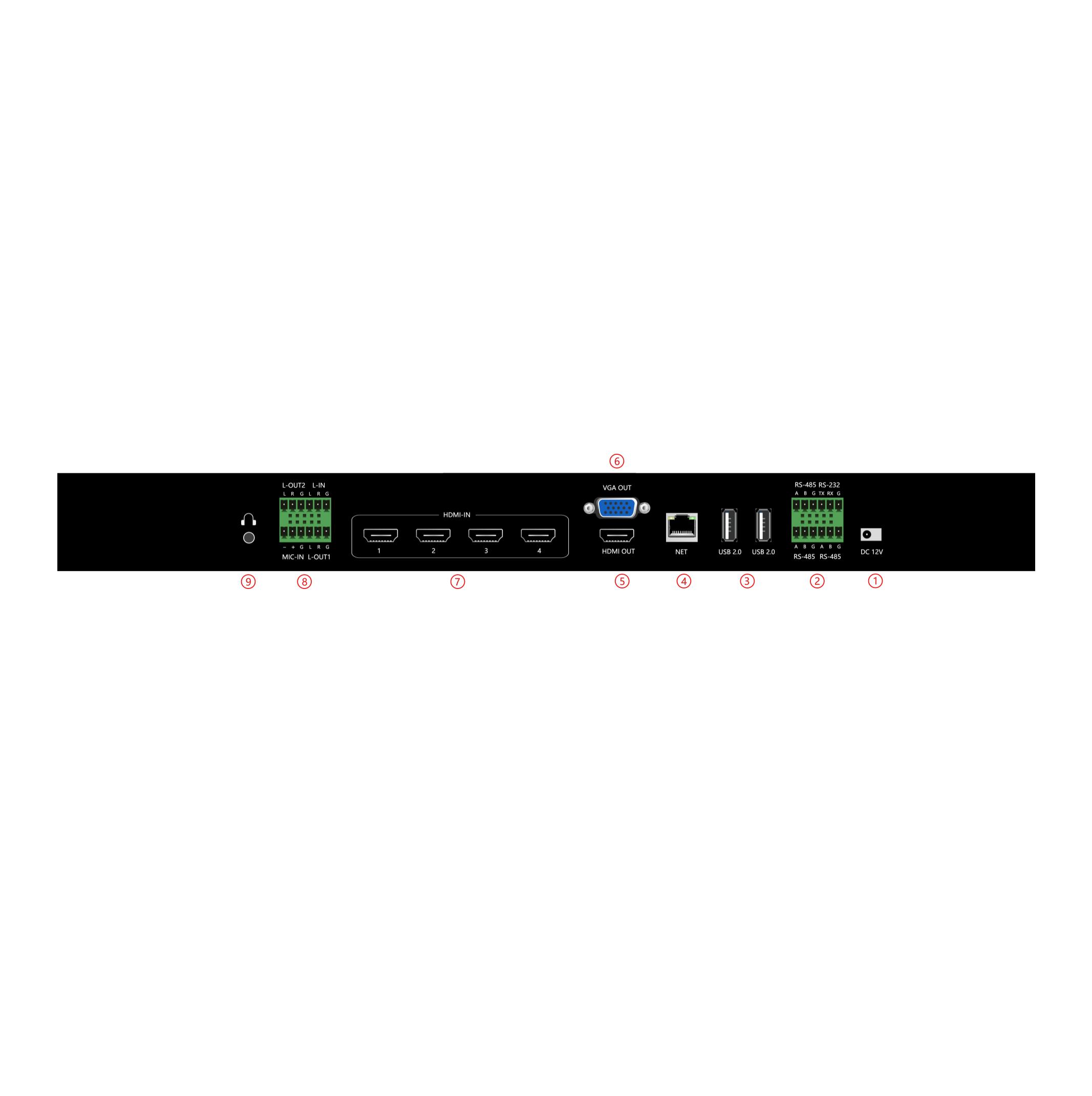

  • Video input: 4 HDMI inputs
  • Video output: 1 HDMI, 1 VGA
  • Maximum input resolution: 1080P@60fps
  • Audio input: 2 line in, 3pin Phoenix terminal interface
  • Audio output: 2 line-out, 3pin Phoenix terminal interface
  • 1 monitoring interface, 3.5mm headphone jack
  • Video encoding: H.264/H.265
  • Audio encoding: AAC
  • Video output format: MP4
  • Video encoding frame rate: 1~30fps
  • Video bit rate: 500kbps~40Mbps adjustable
  • Audio bit rate: 8~128KB adjustable
  • Data storage: built-in 1T hard disk, support expansion 15 .RS485: 3 groups, 3-pin Phoenix terminal interface 16.RS232: 1 group, 3-pin Phoenix terminal interface 17.Network: 1 1000M network port, RJ-45 18.USB interface: 2 USB2.0 19.Software upgrade: support network upgrade 20.Storage mode: support built-in hard disk, external USB storage, support USB export, support FTP download 21.Protocol support: RTMP, RTSP, UDP, TCP, FTP, DHCP, HTTP 22.Working power supply: DC 12V/3A 23.Equipment size: 1U rack
    • Donwload
    FT-810A
