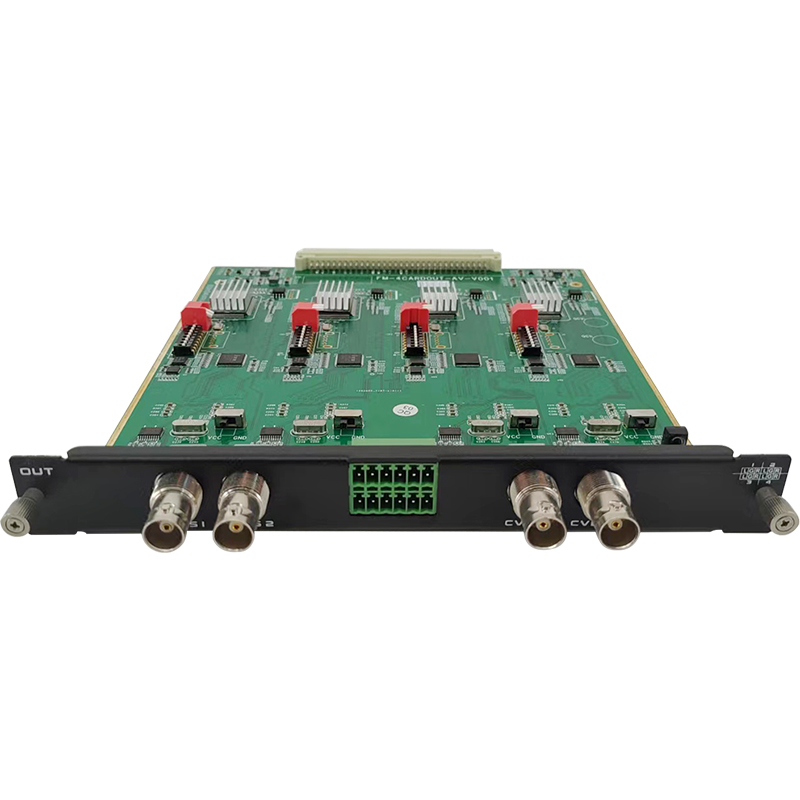

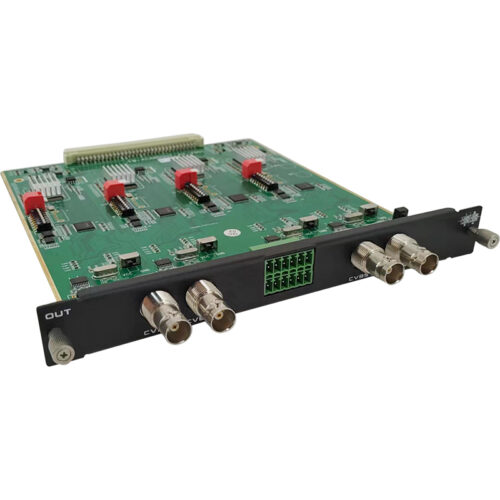

CVBS Output Board FT-4OCMUS

The FT-4OCMUS is a 4-channel CVBS board supporting analog audio and video output with 4 BNC interfaces. It offers features like adjustable resolution, line doubling, and video splicing, with a maximum output resolution of 1080P and a 20-meter long line output. It supports seamless switching and hot-plugging for convenience.
Categories:
Get Quote
Category Tags , , , ,
Description
  1. FT-4OCMUS is a 4-channel CVBS board that supports 4-channel CVBS interface and 4-channel analog audio signal interface; the highly integrated board design allows the number of boards to be selected as needed, which brings great convenience to application and maintenanc

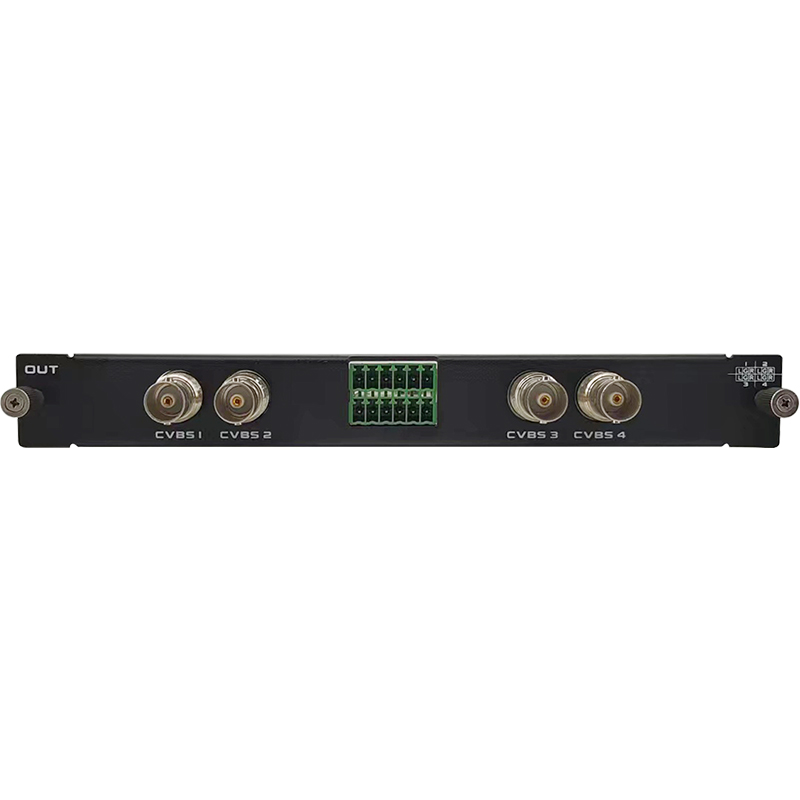

  2. Support 4-channel BNC interface and 3P Phoenix terminal audio socket;
  3. Support fast and seamless switching, no flicker, no black screen;
  4. Support power-off on-site switching memory protection function, unique ESD static protection function;
  5. Support analog audio and analog video output at the same time;
  6. With gain 20 meters long line, with independent audio output;
  7. Support adjustable output resolution, support image parameter modification;
  8. Support line doubling function, the highest resolution supports 1080P;
  9. All boards and motherboards use 10G imported professional high-speed connectors, not ordinary gold finger connections;
  10. Output supports high-definition CVBS
  11. Support hot-swap, plug and play, extremely convenient
  12. Support video splicing function
Parameter
Interface BNC interface, 3P Phoenix terminal audio socket
Signal type CVBS video
Gain 0 dB
Bandwidth 380 MHz
Signal strength 0.63V p-p to 0.9 V p-p
Minimum/maximum level RGB signal: 0V/1.0V HV signal: 0V/5.0V
Input impedance 75Ω
Return loss <-30dB@5MHz
Product weight about 0.5KG
Maximum power consumption 20W
