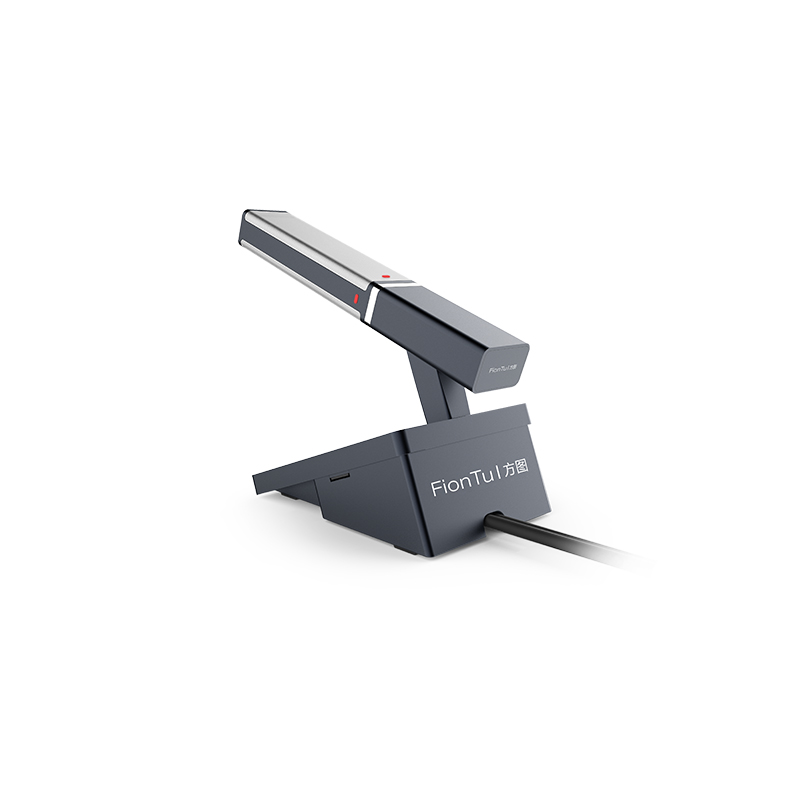

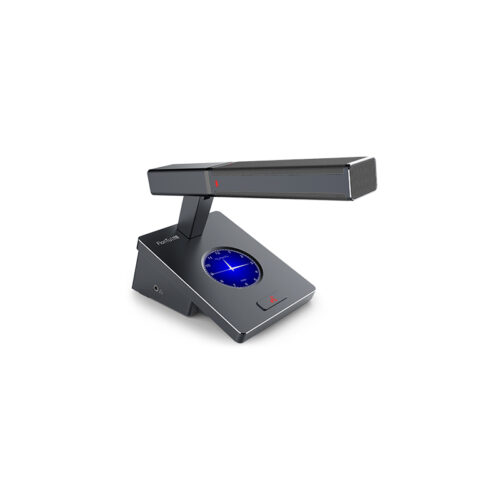

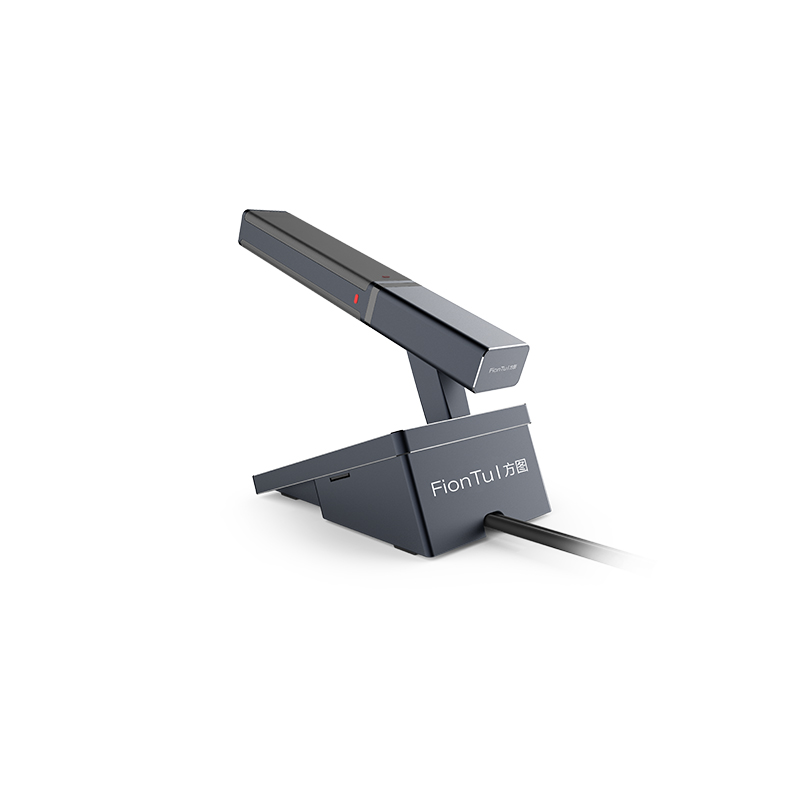

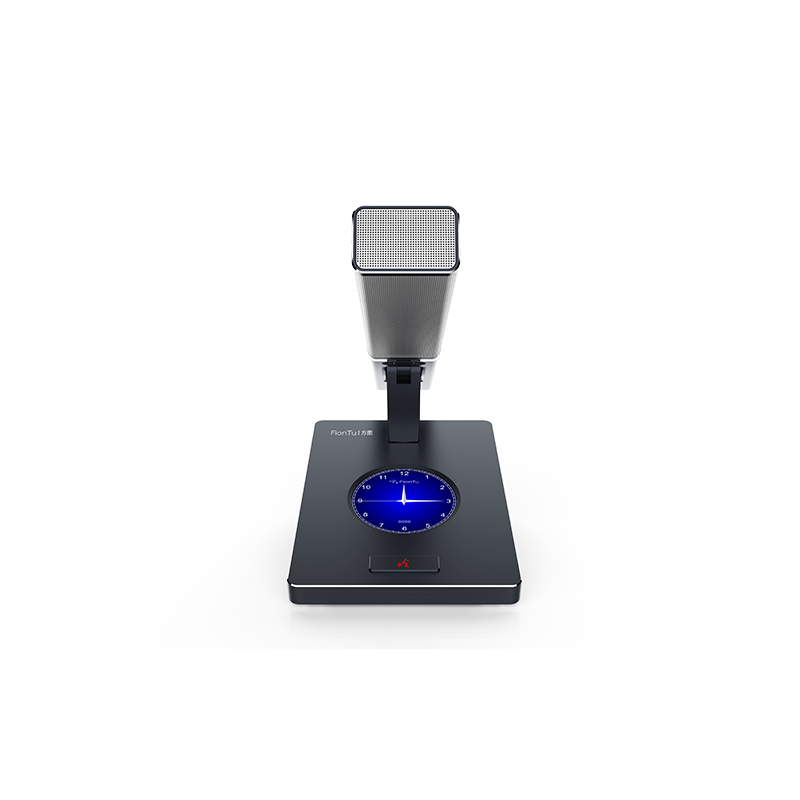

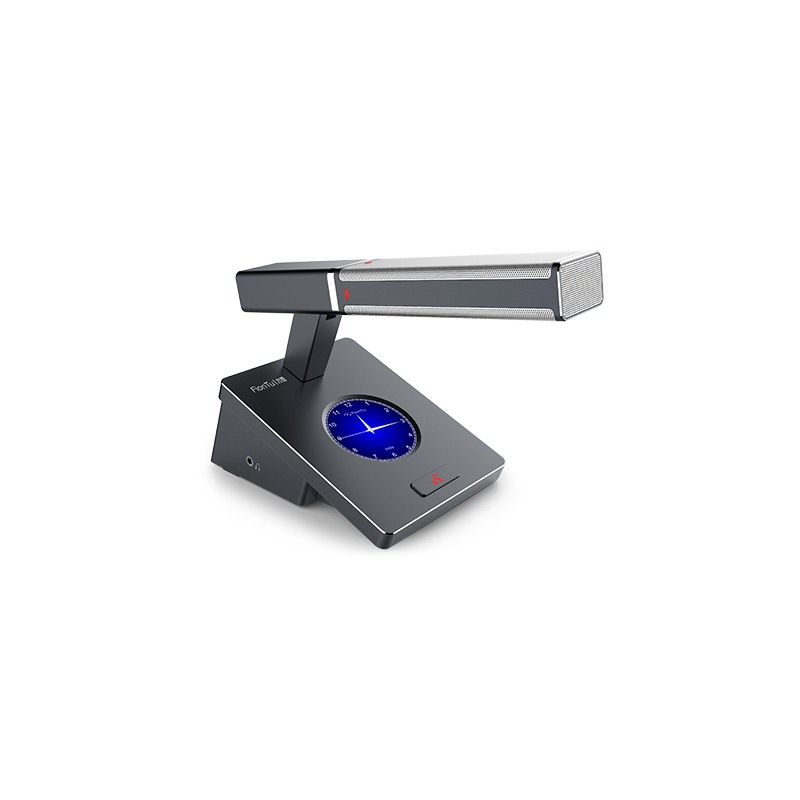

Digital and analog dual backup conference unit G20 PLUS

This advanced conference system features a double backup design for enhanced reliability, with a high-performance CPU for improved sound quality and faster processing. The microphone includes a gold film capsule for superior sound pickup, and the system integrates a customizable touch display for real-time functions like voting and scoring. It also supports camera tracking, hot plugging, and flexible chairman unit configurations.
Categories:
Get Quote
Category Tags , , , ,
Description
  • Double backup system design, seamless integration of hand-in-hand conference system and phantom powered microphone, ensuring higher system reliability
  • Built-in high-performance CPU, faster processing speed and better sound quality
  • Gold film high-fidelity microphone head, super directional sound pickup effect, better sound quality
  • Round high-resolution display touch screen: support dynamic clock display, call service, receive messages, display pictures, adjust volume, customize interface
  • Cooperate with management software to realize real-time check-in, voting, voting, election, scoring and other functions
  • Cooperate with video switching matrix and camera, after using computer preset, the camera automatic tracking function can be realized
  • Customized chairman machine configuration function, according to the needs of the site, any unit can be temporarily defined as the chairman unit, and there is no limit on the number of chairman units
  • The system has automatic repair function and supports hot plugging of lines
  • The microphone can be adjusted from -50° to 45° (horizontal)
  • Made of zinc/aluminum alloy, anodized process, CNC precision processing high-gloss edge, novel appearance, mainly used in high-end conferences and other professional occasions
    • Parameter
    Output frequency response 20Hz-20KHz
    Signal-to-noise ratio >74 dB
    Dynamic range >108 dB(1 KHz)
    Total harmonic distortion  <0.05%
    Maximum power consumption 2.6W
    Phantom power 48V DC
    Headphone volume 10mW
    Headphone load >16 Ω
    Screen Circular diameter 50mm capacitive touch screen
    Headphone output interface  Ø 3.5 mm stereo jack
    Screen resolution 480*480
    Storage TF card
    Shell material Zinc/aluminum alloy
    Connection method 6-core special + 2-core shielded cable
    Weight 1.04kg
    Color Base dark blue
    Microphone rod silver
    Dimensions (mm) length*width*height Mic rod:200*34.5*23, base:138*98*54
    Microphone parameters
    Microphone capsule 14mm diameter gold-plated condenser capsule*2
    Directional characteristics Supercardioid
    Sensitivity -28 dB
    Frequency response 20Hz-20KHz
    Input impedance  2.2KΩ
    Maximum sound pressure level 130 dB (THD<3%)
    Equivalent noise 25 dB-A
    Donwload
    G20 PLUS
