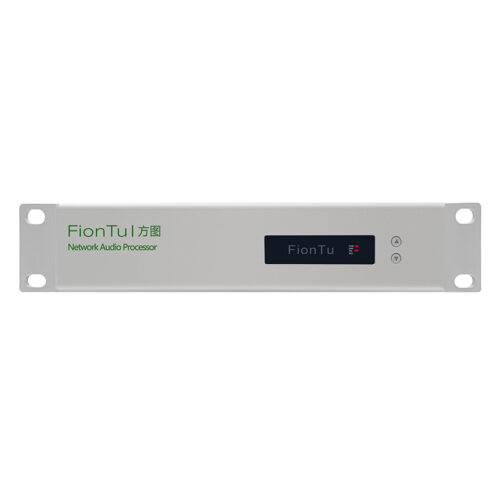

Digital Audio Central Processing System MBP300

This digital audio central processing system features an ARM-based Rockchip RK3588 processor, supporting 256x256 network audio channels, real-time processing, and low-latency audio transmission. It supports flexible modular configuration, Dante, AI acceleration, and dual redundant power and network backups. FT-Designer platform enables remote management and control.
Categories:
Get Quote
Category
Description
  • This product is a digital audio central processing system, using domestic ARM chips (domestic Rockchip RK3588 processor) architecture, using Linux operating system and high-performance FFT/IIR/FIR hardware acceleration function for audio processing
  • The new generation FT-Designer integrated management platform, FionTu various audio products, product matching adopts modularization to freely configure, support online and remote management, and can monitor and control the system audio processing part in real time through the FT-Deginer platform
  • The modular design scheme of audio processor algorithm can be designed freely and flexibly, and the software drag-and-drop interface is used to facilitate the tuner to operate network transmission
  • The F-LAN audio network transmission protocol designed by FionTu is adopted, and the audio delay is less than 3ms, and the transmission, monitoring and management of network audio are realized
  • This product adopts a plug-in design, flexibly configures 4 different interface boards, and supports the access of Dante boards, with a maximum of 256X256 audio transmission, processing, monitoring and other functions
  • Applicable occasions: sound reinforcement system of large and medium conference rooms or multi-function halls, background music system of churches and theaters, public broadcasting system of large places such as conference centers or hospitals
  • Adopting domestic Rockchip RK3588 processor (octa-core 64-bit, main frequency 2.4GHz)
  • Single-chip solution, network audio transmission, 256X256 audio processing, network monitoring and other functions
  • Built-in NPU, which can provide acceleration for audio AI algorithm
  • 8 slots support optional interface cards of different types
  • Support Dante function
  • Support 4 card slot boards
  • Interface card port number from 8 channels to 64+64 channels
  • Highly optimized embedded Linux operating system, suitable for low-latency applications
  • Complete and efficient audio algorithm library
  • Support drag-and-drop configuration design software and UCI supervision platform to build multi-channel audio recording and playback functions through the system
  • Support Lua script programming
  • Support GPIO and RS232/RS485 interface, central control interface
  • Support network dual backup
  • Support dual-machine redundant backup
  • Support dual power supply redundancy
Parameter
Donwload
MBP300
