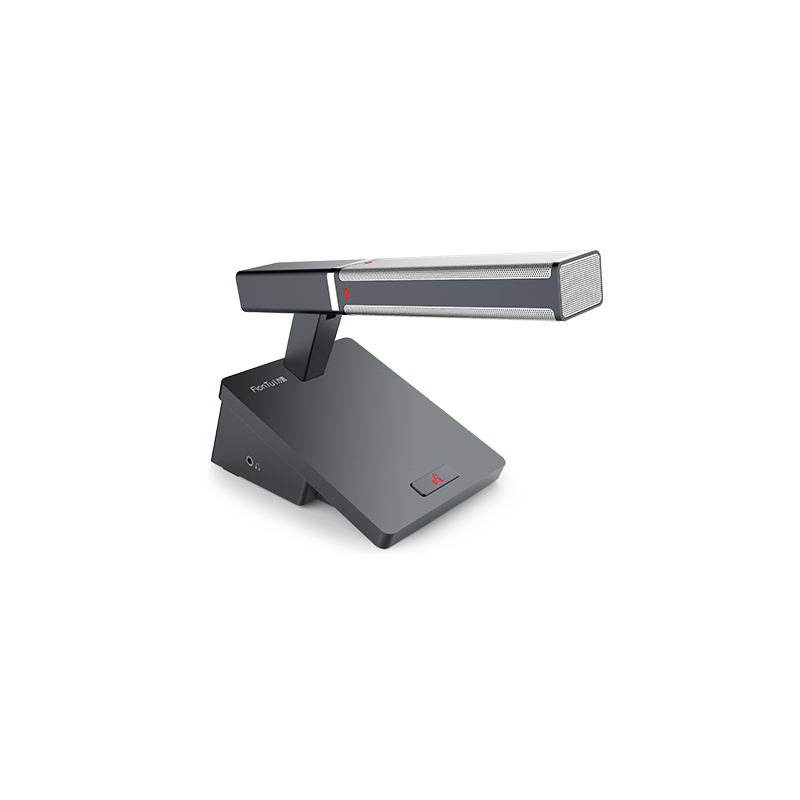

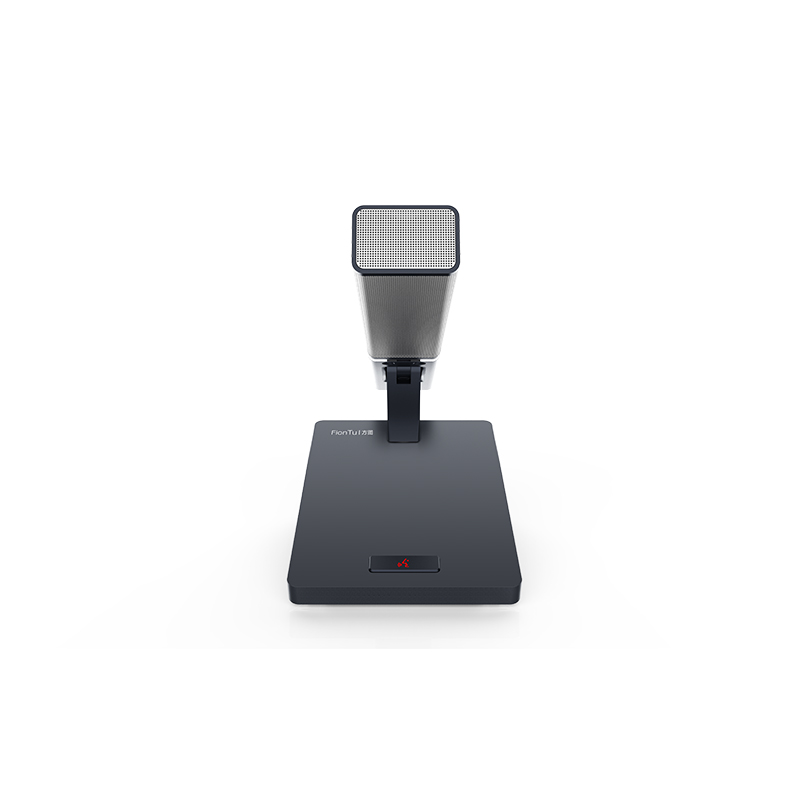

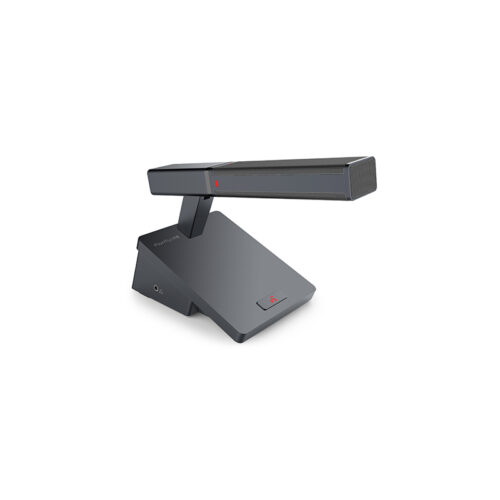

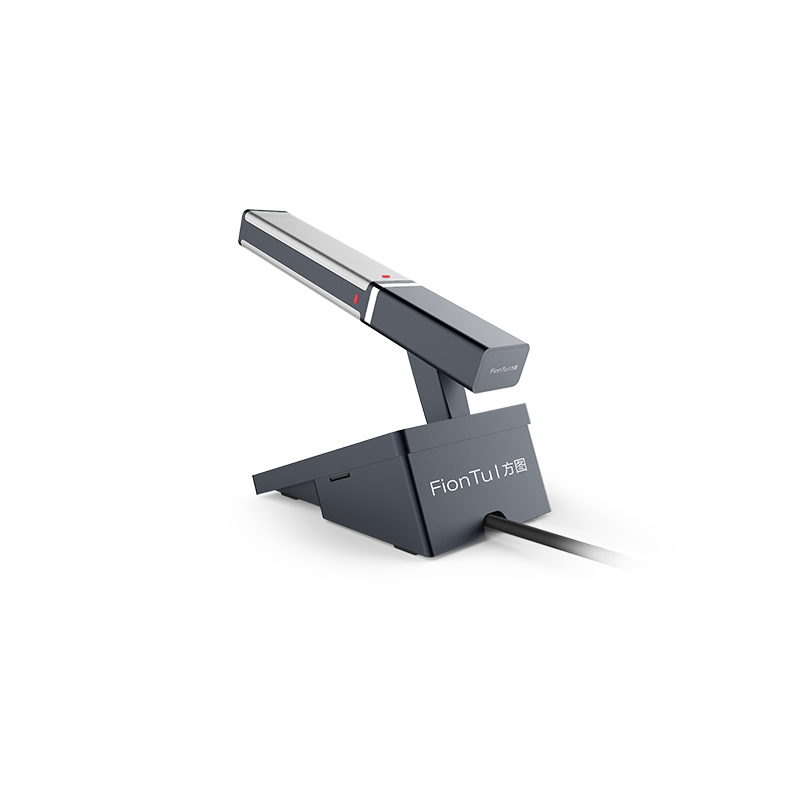

Digital Conference Unit G15 E-L

This microphone features a high-quality gold film condenser capsule for superior sound quality and a 100° directional pickup to minimize interference. It is powered by a built-in CPU for faster processing and supports flexible chairman unit configuration. The system includes automatic repair and hot-plugging functions, making it ideal for dynamic environments.
Categories:
Get Quote
Category Tags , , , ,
Description
  • Top-grade gold film high-fidelity microphone capsule, super-directional sound receiving effect, better sound quality.
  • Integrated microphone rod
  • Built-in high-performance CPU, faster processing speed, better sound quality
  • The effective sound receiving angle of 100° can prevent interference from adjacent microphones and suppress howling
  • With the video switcher and camera, the camera automatic tracking function can be realized after using the computer preset
  • Customized chairman unit configuration function, according to the needs of the site, any unit can be temporarily defined as the chairman unit, and there is no limit on the number of chairman units
  • The system has an automatic repair function and supports hot plugging of lines
    • Parameter
    Frequency response 40Hz-16KHz
    Signal-to-noise ratio >74 dB
    Dynamic range >108 dB(1 KHz)
    Total harmonic distortion  <0.05%
    Maximum power consumption 1.5W
    Headphone volume 10mW
    Headphone load >16 Ω
    Headphone output interface  Ø 3.5 mm stereo jack
    Shell material Zinc-aluminum alloy
    Connection method FionTu conference six-core dedicated connection cable
    Color Brown
    Dimensions (mm) length*width*height Microphone rod:200*34.5*23, base:138*98*54
    Microphone parameters
    Microphone head 14mm diameter gold-plated condenser microphone head
    Directional characteristics Supercardioid
    Sensitivity -28 dB
    Frequency response 30Hz-18KHz
    Input impedance  2.2KΩ
    Maximum sound pressure level 130 dB (THD<3%)
    Equivalent noise 25 dB-A
    Cable parameters
    Diameter  5.5mm
    Wire core  6 cores
    Shielding  winding + aluminum foil
    Wire length  2 meters + 1 meter
    Donwload
    G15 E-L
