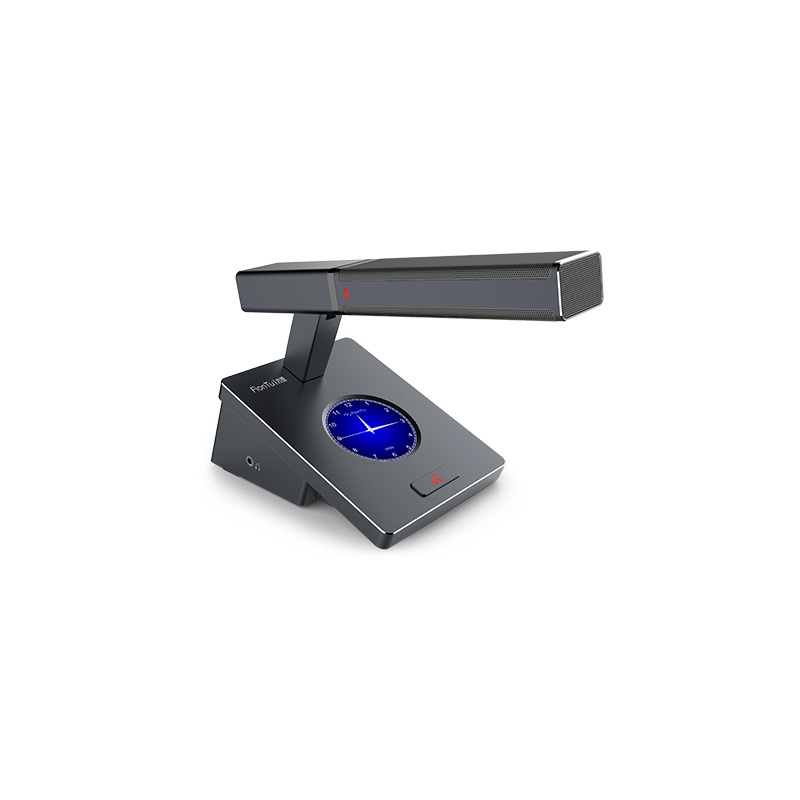

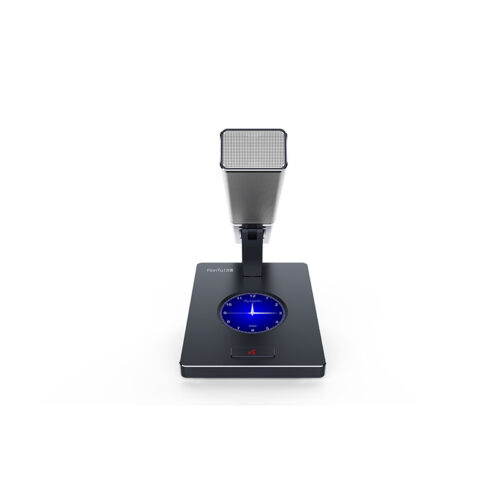

Digital Conference Unit G20 S

This high-performance conference microphone system features a gold film high-fidelity capsule for superior sound quality and a super-directional pickup effect. It includes a customizable, round touch display for real-time functions such as voting, sign-ins, and message notifications. The system also supports seamless integration with PC software and SDI switching matrix, with flexible chairman unit configurations and hot-plug support.
Categories:
Get Quote
Category Tags , , , ,
Description
  • Top-grade gold film high-fidelity microphone capsule, super-directional sound pickup effect, better sound quality
  • Built-in high-performance CPU, faster processing speed, better sound quality
  • Effective sound pickup angle of 100° can prevent interference from adjacent microphones and suppress howling
  • Round high-resolution display touch screen: supports dynamic clock display, call service, receive messages, display pictures, adjust volume, customize interface, sign-in, voting, voting, election, scoring and other functions
  • Add PC software function, optional 4-input 2-output 3G-SDI high-definition seamless switching matrix, support a variety of proprietary software modules
  • Customized chairman machine configuration function, according to the needs of the site, temporarily define any unit as the chairman unit, no limit on the number of chairman units
  • The system has an automatic repair function and supports hot plugging of the line
  • The microphone can be adjusted from -50° to 45° (horizontal)
  • Made of zinc/aluminum alloy, anodized process, CNC precision processing high-gloss edge, novel appearance, mainly used in high-end conferences and other professional occasions
    • Parameter
    Output frequency response 20Hz-20KHz
    Signal-to-noise ratio >74 dB
    Dynamic range >108 dB(1 KHz)
    Total harmonic distortion  <0.05%
    Maximum power consumption 2.3W
    Phantom power 48V DC
    Headphone volume 10mW
    Headphone load >16 Ω
    Screen Round 50mm diameter capacitive touch screen
    Headphone output interface  Ø 3.5 mm stereo jack
    Screen resolution 480*480
    Storage TF card
    Shell material Zinc/aluminum alloy
    Connection method FionTu conference six-core dedicated connection cable
    Weight 0.95kg
    Color Base brown
    Microphone rod silver
    Dimensions (mm) length*width*height Mic rod:200*34.5*23, base:138*98*54
    Microphone parameters
    Microphone capsule 14mm diameter gold-plated condenser capsule
    Directional characteristics Supercardioid
    Sensitivity -28 dB
    Frequency response 20Hz-20KHz
    Input impedance  2.2KΩ
    Maximum sound pressure level 130 dB (THD<3%)
    Equivalent noise 25 dB-A
    Donwload
    G20 S
