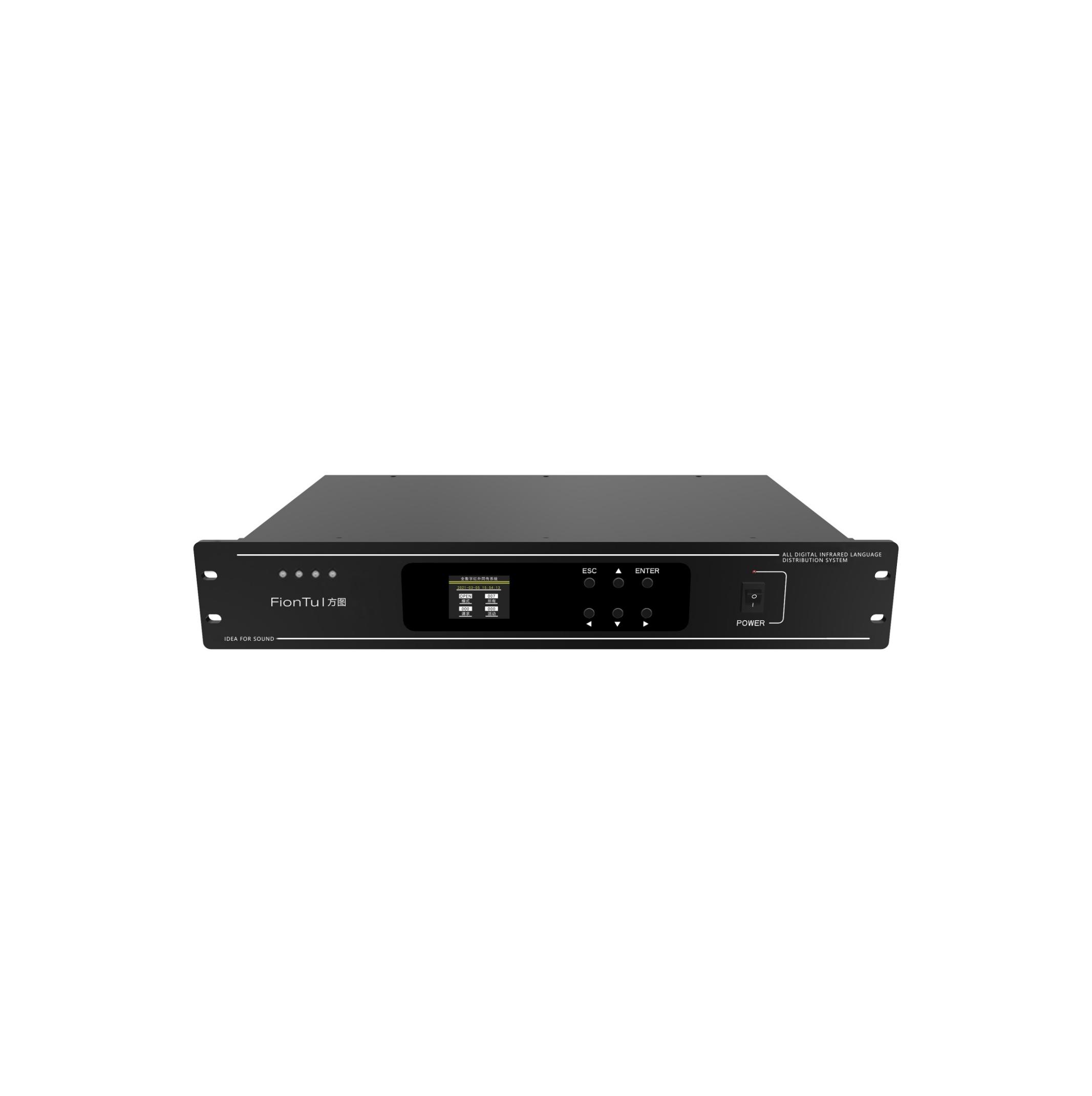

Digital infrared transmitter host FT-A-TSC4

This fully digital infrared interpretation system supports 4 audio channels and offers high-quality sound with improved anti-interference. It complies with international standards and ensures privacy by preventing infrared rays from penetrating walls. The system features easy setup, wider signal coverage, and is compatible with other IEC 61603-7 compliant systems.
Description
Parameter
Modulation frequency carrier 0 to 5: 2 MHz to 6 MHz, carrier 6 and 7: up to 8 MHz
 Protocol and modulation DQPSK
 Audio frequency response 20 Hz to 10 kHz (-3 dB) (standard quality)
 Total harmonic distortion at 1 kHz <0.05%
 Crosstalk attenuation at 1 kHz > 80 dB
 Dynamic range > 80 dB
 Weighted signal-to-noise ratio > 80 dB(A)
 Power consumption 100 W
 Unbalanced audio input Rated +3 dBV, maximum +6 dBV (± 6 dB)
 HF output 1 Vpp, 6 VDC, 50 ohms
 Interpreter desk interface 6P-DIN

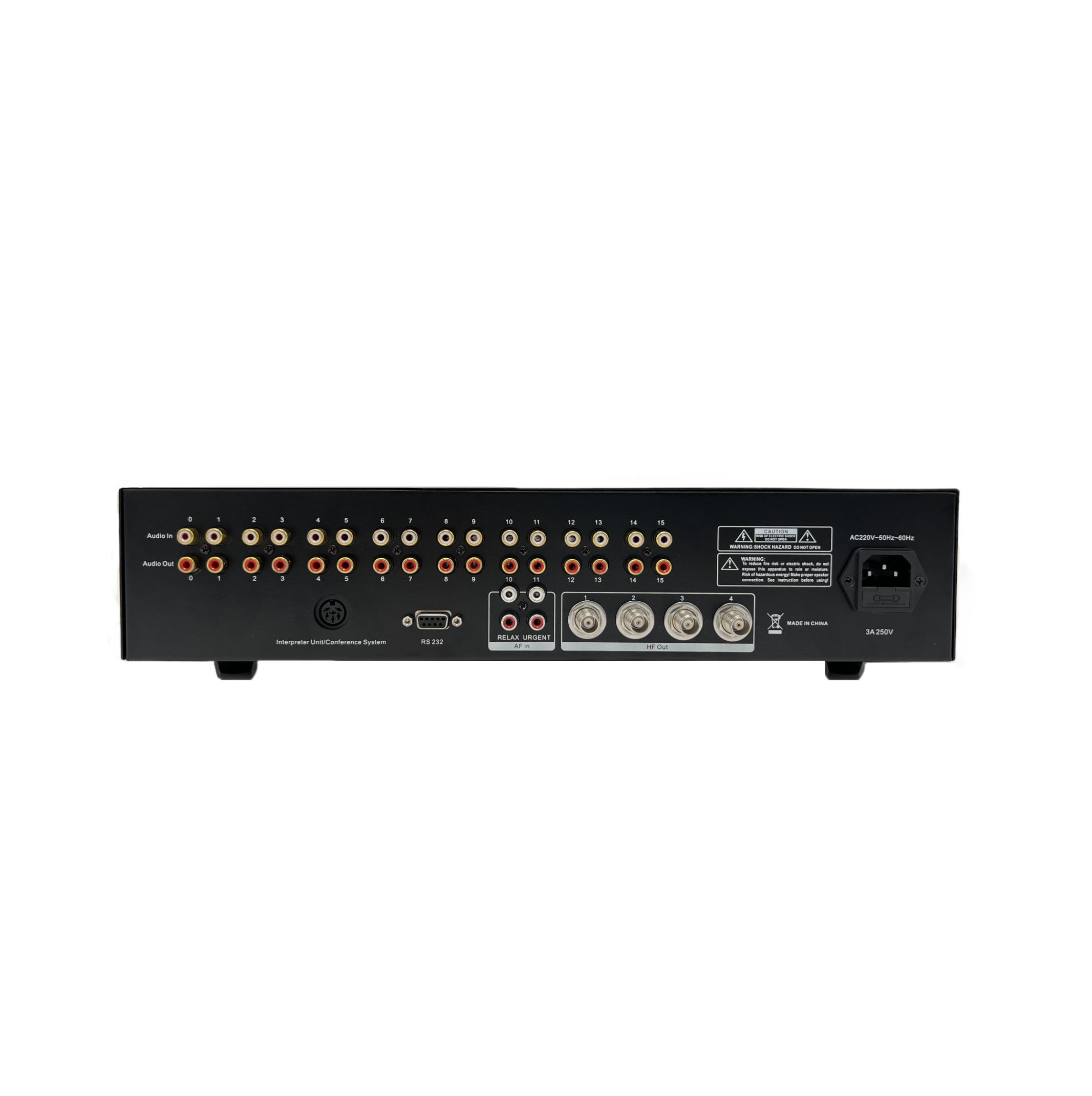

 Audio input RCA unbalanced × 4
 Audio output RCA unbalanced × 4
 RF output RF output BNC plug × 4
