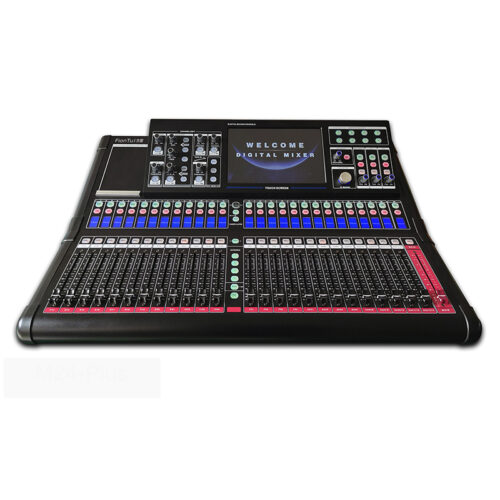

Digital Mixing Console FT-MIK2816

This professional audio mixer features a 10.1-inch capacitive touch screen, 26 electric faders, and 24 microphone/line inputs with advanced audio processing, including 13 DCA groups, 4 built-in DSP effects, and 31-band EQ. It supports seamless scene management, USB recording/playback, dual-system control, and wired/wireless network operation. Designed for precision, it offers versatile connectivity, user-defined customization, and integrated feedback suppression.
Categories:
Get Quote
Category Tags , , , ,
Description
  • Supports connection of two interface boxes.
  • 14-inch channel TFT LCD guide display, channel name and background color can be customized (supports Chinese).
  • MIC input gain adjustment (smooth digital gain, participate in saving to scene).
  • Mic input channel (Linked) odd-even or AB joint adjustment.
  • +48V phantom power (MIC channels can be turned on and off independently, participate in saving to scene).
  • Mic input channel independent PAD attenuation switch.
  • Each input channel has built-in compressor, noise gate, phase, high and low pass filter, 5-band parametric equalizer, delay, channel sound and image balance adjustment.
  • Channel parameter quick copy function.
  • Each channel has a multi-function menu, mute and monitoring.
  • Each channel is equipped with a 100MM electric fader (26 ALPS electric faders).
  • Independent physical fader control of input, output and effect channels.
  • Each channel fader supports user-defined layer function.
  • Two fader layer page turning buttons (input page turning, output and effect fixed faders, more convenient and quick operation).
  • 8 customizable physical buttons Keys.
  • 13 DCA groups, 13 mute groups.
  • Integrated feedback suppressor management.
  • Built-in signal generator (pink noise/sine wave/white noise), customizable output from any one or more output channels.
  • Built-in real-time spectrum RTA function (color editable).
  • Support dual-machine synchronous data backup.
  • Channel and scene editing supports Chinese input method.
  • Support integrated automatic mixing function, talkback microphone function.
  • Support MIDI interface input.
  • AUX output (before/after fader) can be set.
  • Each output channel processing: high and low pass filter, 15-31 segment parametric equalization (GEQ supports control on the fader), compressor, delay, phase.
  • USB stereo digital recording function.
  • Built-in sound card (mobile phone, IPAD, MP3. PC direct playback, recording).
  • 8 quick scene call modes, 100 scene storage, Customizable scene names, support Chinese input, seamless scene switching, no sound interruption, support U disk import and export.
  • 4 independent DSP effects built-in locally, preset multiple effect modes for users to use directly.
  • FX foot switch interface.
  • 12V output interface, can be connected to external lighting equipment.
  • One-click factory reset.
  • Support 232 central control.
  • Multi-operating system control software (IOS system, Android system, WINDOWS system).
  • Support wired network port adjustment (or external router wireless adjustment).
  • 10.1-inch 1280*800 high-definition capacitive touch display.
Parameter

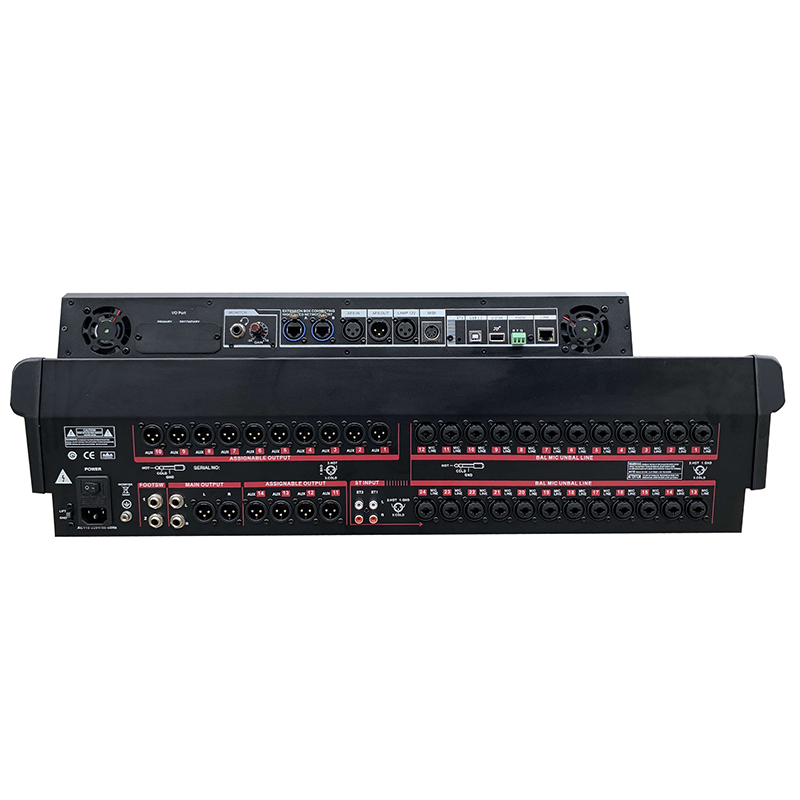

Microphone/line input 1-24 (local) balanced, XLR and 1/4 TRS jacks
Input sensitivity (XLR/TRS) XLR1.5mv, TRS 7mv
Input analog gain -32db to 10db, 0.6~0.7 steps
Maximum input level (XLR/TRS) +19dBu/+29dBu
Input impedance (XLR/TRS) MIC＞5K, LINE＞10K
Mic input stereo link Yes
Parameter link balance, dynamics, delay, distribution, send
Polarity normal/flip
 jack With one 3.5 lotus jack
Input sensitivity nominal 4dB
Input analog gain -32db to 10db, 0.6~0.7 steps
Maximum input level +29dB
Input impedance >7KΩ
Stereo link Yes
Parameter link balance, dynamics, delay, distribution, send
Polarity normal/flip
Fader 26 ALPS 100mm electric
Touch screen 10.1” TFT, 1280*800 resolution
DCA group 13
Mute group 13
Attack/Release 50us-300ms/10ms-5s
Compressor Direct switch
Threshold value ratio -40db-+6db/1:1 to infinity
Input processing delay Maximum 20ms
Output channel Main output L/R, 14AUX auxiliary output
Equalizer 15-31 band parametric EQ, (20HZ--20KHZ) ±12dB, Q0.3~15 adjustable
High and low pass 12db/24db, (BT/BS/LRK), 20-20KHZ
Compressor direct switch
Threshold ratio -40db-+6db/1: 1 to infinity
Output processing delay maximum 30ms
Driver CH340 (USB A)
Device Use a USB hard disk (U disk)
Stereo recording 2 channels (wav/mp3) 48KHz 24
Stereo playback 2 channels (WAV/MP3) 32-96KHz, 16-24 bits
Sound card USB B
Mix 1-14AUX and left and right outputs (local) balanced, XLR, L/R, 14AUX
Output impedance <75Ω
Nominal output +4dbu=0db level meter reading
Residual output noise =-91dbu
Mix insert assign FX to the mixing channel
Dynamic range 112dB
Signal-to-noise ratio XLR≥ 92db, TRS≥82db
Maximum output voltage 4VAC MAX
Distortion  <0.0003% (1Khz Full Power)
Frequency response  20HZ-20KHZ+/-0.5db
Sampling rate  48KHz ±100PPM
ADC/DCA  24-bit Delta-sigma
Internal FX  4xFX engine, send> return or insert
Product size  length*width*height:：746*509*248MM
