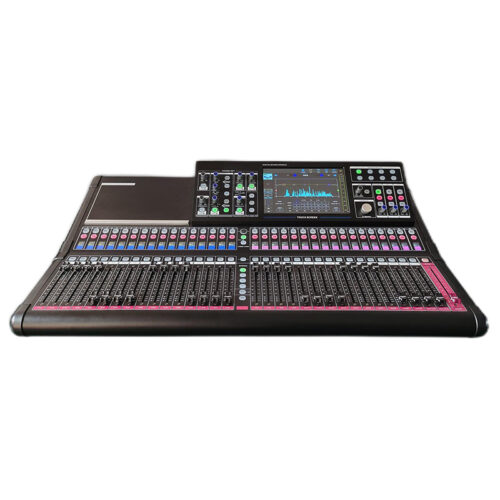

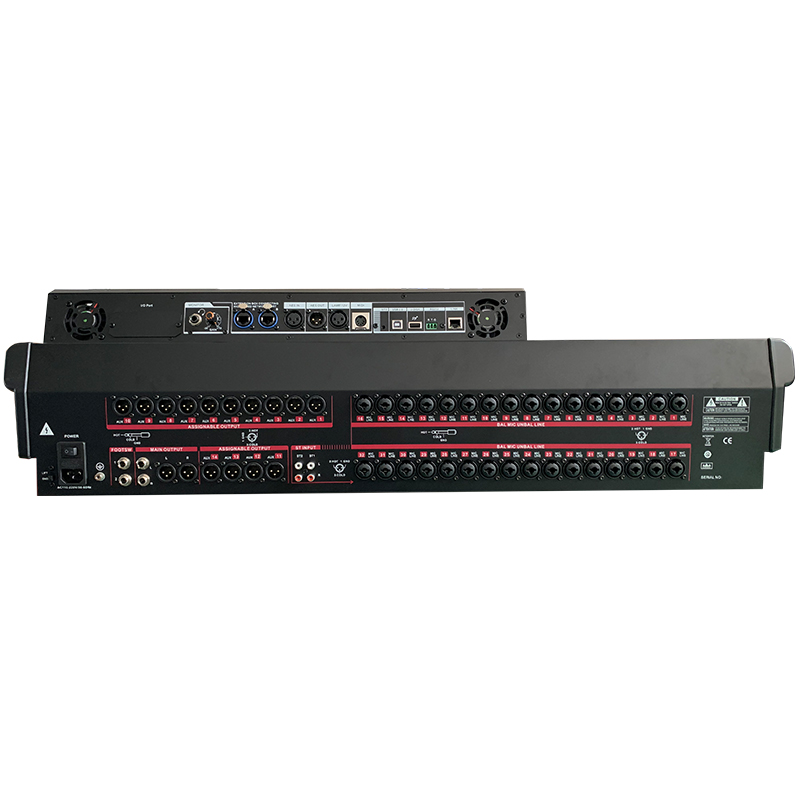

| Input |
|
| Microphone/line input |
1-32 (local) balanced, XLR and 1/4 TRS jack |
| Input sensitivity (XLR/TRS) |
XTR1.5mv, TRS 7mv |
| Input analog gain |
-32db to 10db, 0.6~0.7 step |
| Maximum input level (XLR/TRS) |
+19dBu/+29dBu |
| Input impedance (XLR/TRS) |
MIC＞5K, LINE＞10K |
| Mic input stereo link |
Yes |
| Parameter link |
balance, dynamics, delay, distribution, send |
| Polarity |
normal/flip |
| Stereo line input |
|
| ST1/ST2 |
3.5 lotus jack |
| ST3 interface (digital) |
USB audio stream, U disk MP3, AES |
| Input sensitivity |
nominal 4dB |
| Input analog gain |
-32db to 10db, 0.6~0.7 step |
| Maximum input level |
+29dB |
| Input impedance |
>7KΩ |
| Stereo link |
Yes |
| Parameter link |
EQ, dynamics, delay, distribution, send |
| Polarity |
Normal/Flip |
| Output |
|
| Mix 1-14AUX and left and right output (local) |
balanced, XLR, L/R, 14AUX |
| Output impedance |
<75Ω |
| Nominal output |
+4dbu=0db level meter reading |
| Residual output noise |
=-91dbu |
| Mix insert |
assign FX to the mixing channel |
| Dynamic range |
112dB |
| Signal-to-noise ratio |
XLR≥ 92db, TRS≥82db |
| Maximum output voltage |
4VAC MAX |
| Distortion |
<0.0003% (1KhzFull Power) |
| Frequency response |
20HZ-20KHZ+/-0.5db |
| Sampling rate |
48KHz ±100PPM |
| ADC/DCA |
24-bit Delta-sigma |
| FX |
|
| Internal FX |
4xFX engine, send>return or insert |
| Type |
reverb, delay, chorus, flanger, symphonic chorus, etc |
| 4 dedicated stereo FX returns |
fader, pan, mute, send to mix/LR, 5-band EQ |
| System |
|
| Linux system |
Chinese and English language switching |

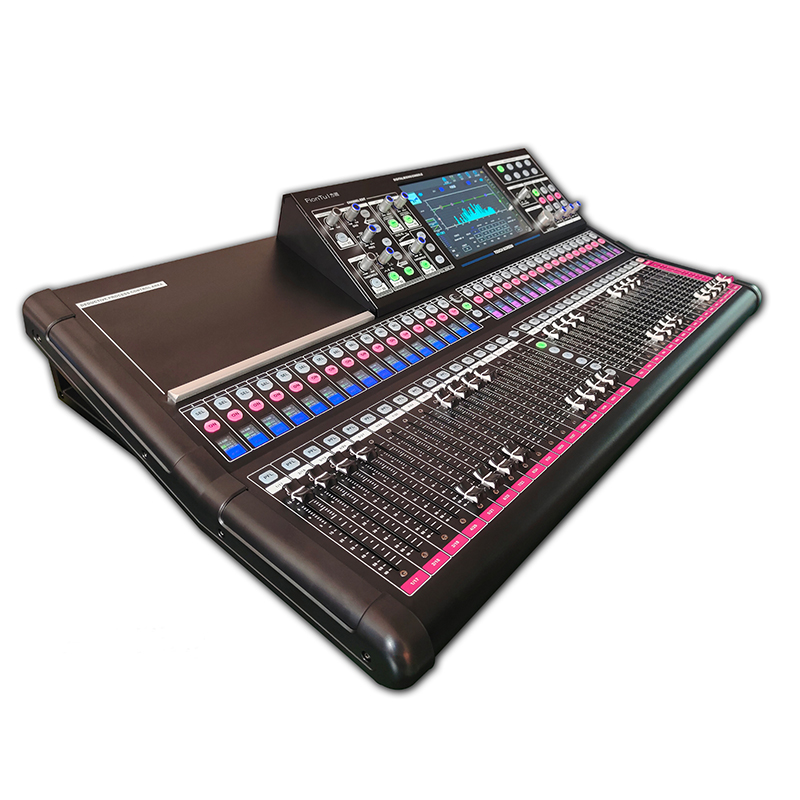

| Control |
|
| Fader |
33 ALPS 100mm electric |
| Touch screen |
10.1” TFT, 1280*800 resolution |
| DCA grouping |
16 |
| Mute grouping |
8 |
| Network |
TCP/IP Ethernet for PC and ipad applications |
| System upgrade |
USB flash drive upgrade |
| Wired connection |
Windows PC software connection |
| Wireless connection |
Windows PC/iPad/android/domestic Kirin system |
| Input processing |
|
| Input source |
local CH1-CH32, ST1/ST2 local ST3 digital |
| Equalizer |
5-band parametric EQ, (20HZ--20KHZ) ±12dB, Q0.3~15 adjustable |
| High and low pass |
12db/24db, (BT/BS/LRK), 20-20K |
| Noise gate |
pass-through switch |
| Gate threshold |
-135db to -40db |
| Impact/release |
50us-300ms/10ms-5s |
| Compressor |
pass-through switch |
| Threshold ratio |
-40db-+6db/1:1 to infinity |
| Delay |
maximum 20ms |
| Remote expansion |
|
| expansion |
Support two interface boxes to connect |
| Output processing |
|
| Output channel |
main output L/R, 14AUX auxiliary output |
| Equalizer |
15-31 parametric EQ, (20HZ--20KHZ) ±12dB, Q0.3~15 adjustable |
| High and low pass |
12db/24db, (BT/BS/LRK), 20-20KHZ |
| Compressor |
direct switch |
| Threshold ratio |
-40db-+6db/1:1 to infinity |
| Delay |
maximum 30ms |
| USB |
|
| Driver |
CH340 (USB A) |
| Device |
Use a USB hard disk (U disk) |
