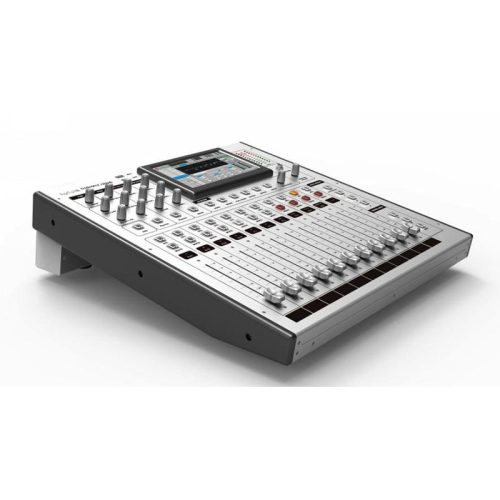

Digital Mixing Console FT-MIX1206

This device features a 7-inch resistive touch screen, 11 electric faders, and supports USB recording and playback in multiple lossless audio formats. It includes 10 independent feedback suppressors, a built-in speaker manager, and offers remote control via iPad and third-party protocols like TCP/IP and RS-232. The system supports 100 scene presets, iPad synchronization, and network/USB firmware upgrades.
Categories:
Get Quote
Category Tags , , , ,
Description
1.7-inch resistive touch screen with 1024x600 resolution 2.11 100mm electric faders.
  • Switch between Chinese and English interfaces at any time without restarting.
  • Built-in USB recording and playback functions.
  • Can play APE, FLAC, MP3.WAV lossless audio formats.
  • USB player can recognize Chinese song names.
  • Built-in 10 channels of independent feedback suppressors.
  • Integrated speaker manager.
  • Open third-party control protocol TCP/IP, RS-232 control instructions.
  • With 2 DCAs.
  • iPad touch screen full-function control, real-time data synchronization.
  • Optional WIFI hotspot.
  • Support 8 terminals to control at the same time.
  • Built-in 4 effector modules.
  • ARM firmware and DSP firmware can be upgraded through the network or USB electronic disk.
  • Each input channel has 4-band parameter equalization, noise gate, feedback suppressor, high and low pass, compression, Invert.
  • Each output channel has 8-band parameter equalization, high and low pass, compression, invert, 1.8 seconds delay.
  • Output channel L/R, 4BUS, HeadPhone (L/R). 19.4 BUS can select pre-fader and post-fader (PRE/POST).
  • Support 100 sets of scene preset functions, can export and import USB storage for data backup.
  • 100 PEQ mode storage.
  • Built-in signal generator: sine wave, pink noise, white noise.
  • Channel parameter copy function, fast copy data of the same channel.

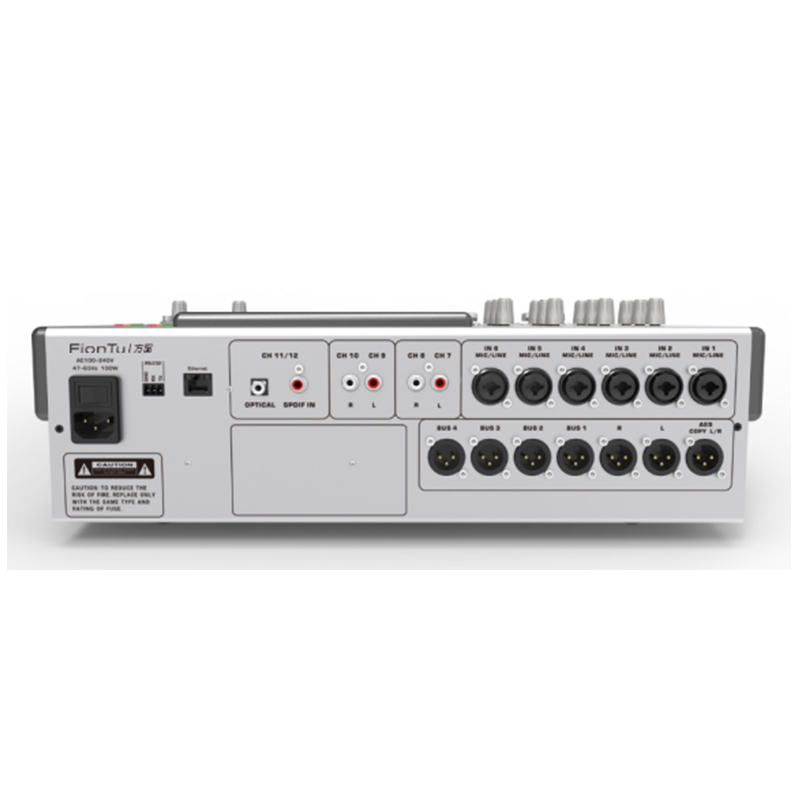

  • Wiring method: balanced input, output XLR.
  • 8 fader groups, 1 system mute button, 3 fast mute buttons.
  • With panel lock button (to prevent misoperation).
  • Channel name can be customized.
    • Parameter
    Display screen size 7
    Resolution 1024x600
    Touch resistance
    Main control CPU Samsung 4418 4-core Cortex™-A9
    Boot speed 22 seconds
    Operating system Linux
    DSP ADSP-21489 400Mhz
    Analog input 10CH (6MIC + 4Line)
    Digital input S/P DIF, optical fiber
    Digital output AES EBU
    USB recording and playback
    playback format APE, FLAC, MP3.WAV
    Analog output L/R+4BUS+Headphone(L/R)
    Noise floor -89dBu unweighted (output fader 0dBu)
    Distortion 0.005% @4dBu 20～20Khz
    Signal-to-noise ratio -106dB unweighted
    Dynamic range 106dB
    Frequency response 20Hz－20KHz ±0.3dB
    Maximum input and output level 18dBu (6.2Vrms) balanced
    DCA Yes
    Chinese and English interface Yes
    Electric faders 11
    iPad control Yes
    Effectors 4 effects
    Feedback suppressor 10 independent
    Speaker manager Yes
    Ethernet 100M
    RS-232 protocol Yes
    WIFI 150M (optional)
    USB mouse Supported
    Dimensions 430x430x146mm(width * depth * height)
    Net weight 8kg
    Power supply AC 100v-240v 50/60Hz  55W
