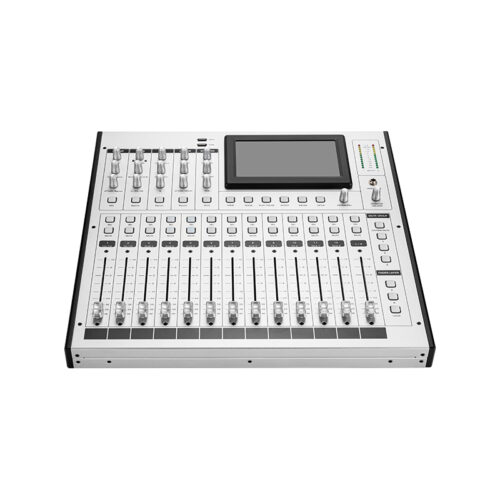

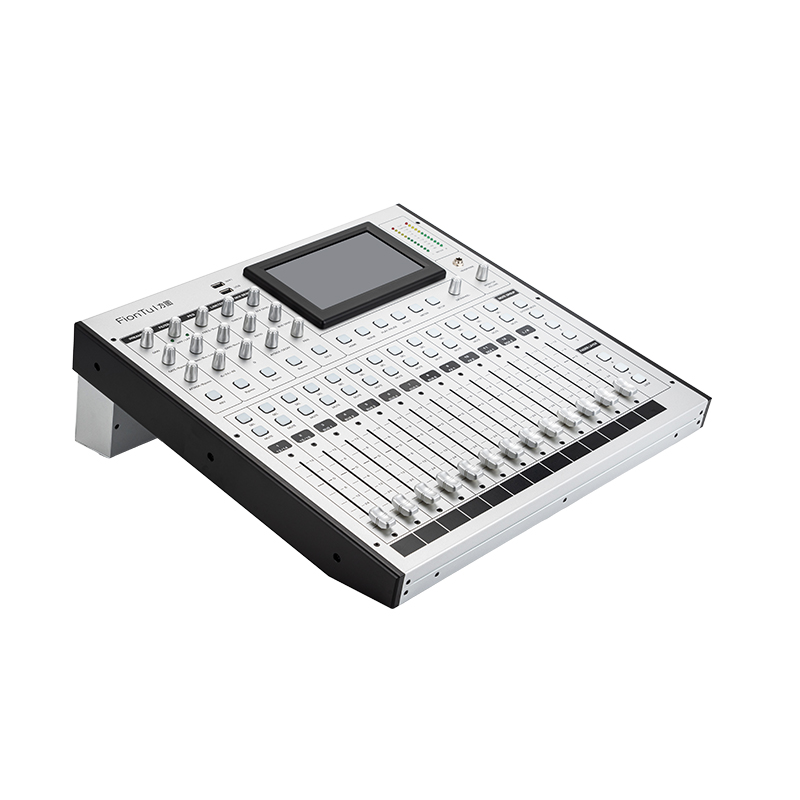

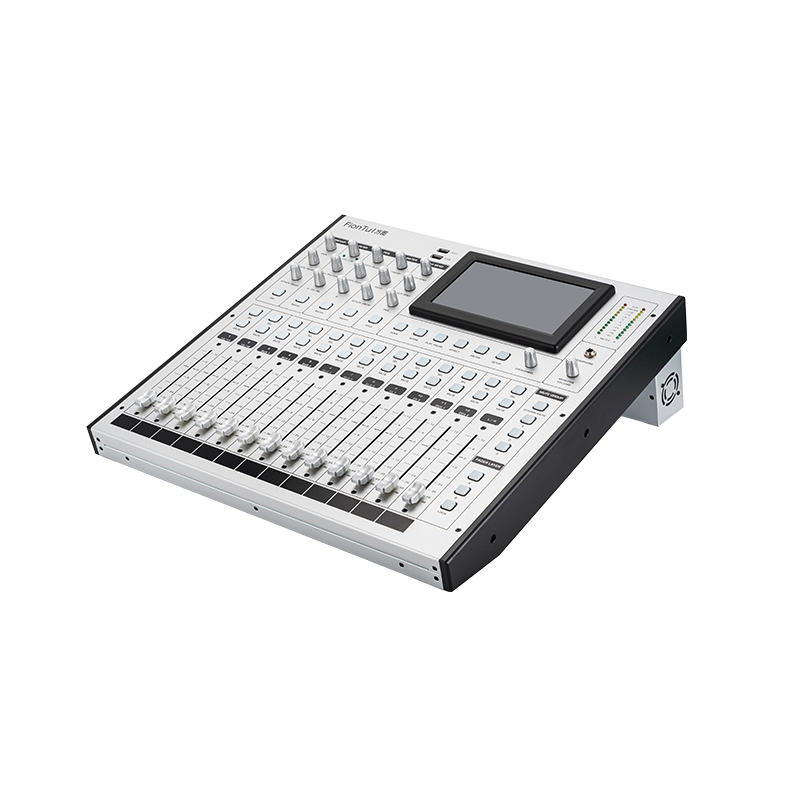

Digital Mixing Console FT-MIX1808

This device features a 7-inch resistive touch screen, 11 electric faders, and supports USB recording and playback in multiple lossless audio formats. It includes 10 independent feedback suppressors, a built-in speaker manager, and offers remote control via iPad and third-party protocols like TCP/IP and RS-232. The system supports 100 scene presets, iPad synchronization, and network/USB firmware upgrades.
Categories:
Get Quote
Category Tags , , , ,
Description
  • 7-inch resistive touch screen with 1024x600 resolution
  • 13 100mm electric faders.
  • Chinese and English interfaces can be switched at any time without restarting.
  • Built-in USB recording and playback functions.
  • Can play APE, FLAC, MP3.WAV lossless audio formats.
  • USB player can recognize Chinese song names.
  • Built-in 16-channel independent feedback suppressor.
  • Integrated speaker manager.
  • Open third-party control protocol TCP/IP, RS-232 control commands.
  • With 2 DCA.
  • iPad Touch screen full-function control, real-time data synchronization.
  • Optional WIFI hotspot. Supports simultaneous control of 8 terminals.
  • Built-in 2 effector modules.
  • ARM firmware and DSP firmware can be upgraded through the network or USB electronic disk.
  • Each input channel has 4-band parameter equalization, noise gate, feedback suppressor, high and low pass, compression, and inversion.
  • Each output channel has 8-band parameter equalization, high and low pass, compression, inversion, and 1.8 second delay.
  • Output channel L/R, 6BUS, 2AUX, HeadPhone (L/R). 18.6 BUS, 2 AUX mixing buses can select pre-fader and post-fader (PRE/POST).
  • Support 100 sets of scene preset functions, can export and import USB storage for easy data backup.
  • 100 PEQ mode storage.
  • Built-in signal generator: sine wave, pink noise, white noise.
  • Channel parameter copy function, fast copy data of the same channel.

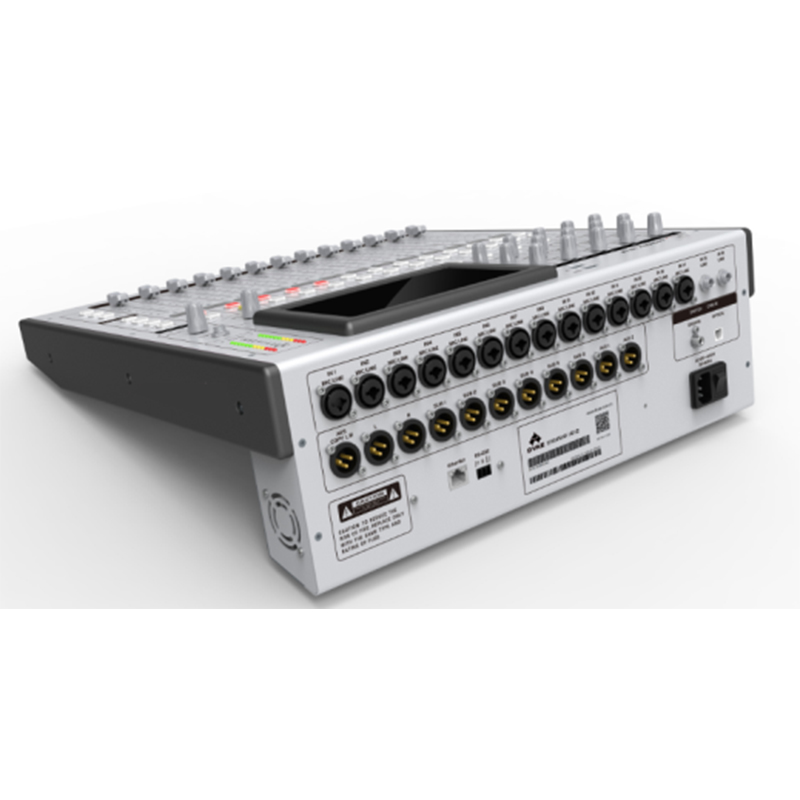

  • Wiring method: balanced input and output XLR.
  • 8 fader groups, 1 system mute button, 3 fast mute buttons.
  • With panel lock button (to prevent misoperation).
  • Channel name can be customized.

Parameter
Display screen size 7
Resolution 1024x600
Touch resistance
Main control CPU Samsung 4418 4-core Cortex™-A9
Boot speed 22 seconds
Operating system Linux
DSP ADSP-21489 400Mhz
Analog input 16CH (14MIC + 2Line)
Digital input S/P DIF, optical fiber
Digital output AES EBU
USB recording and playback
Playback format APE, FLAC, MP3.WAV

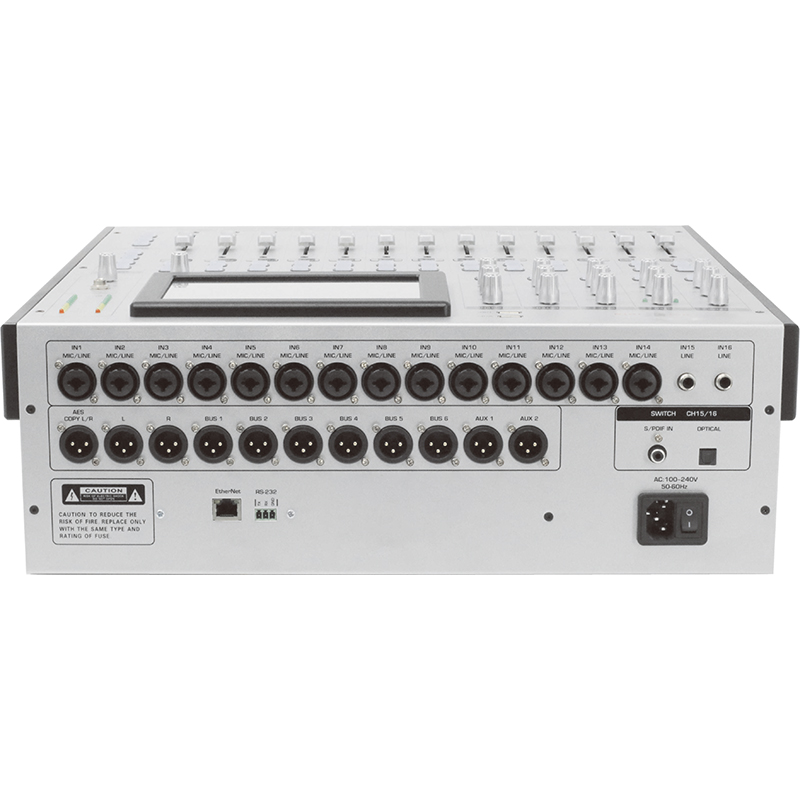

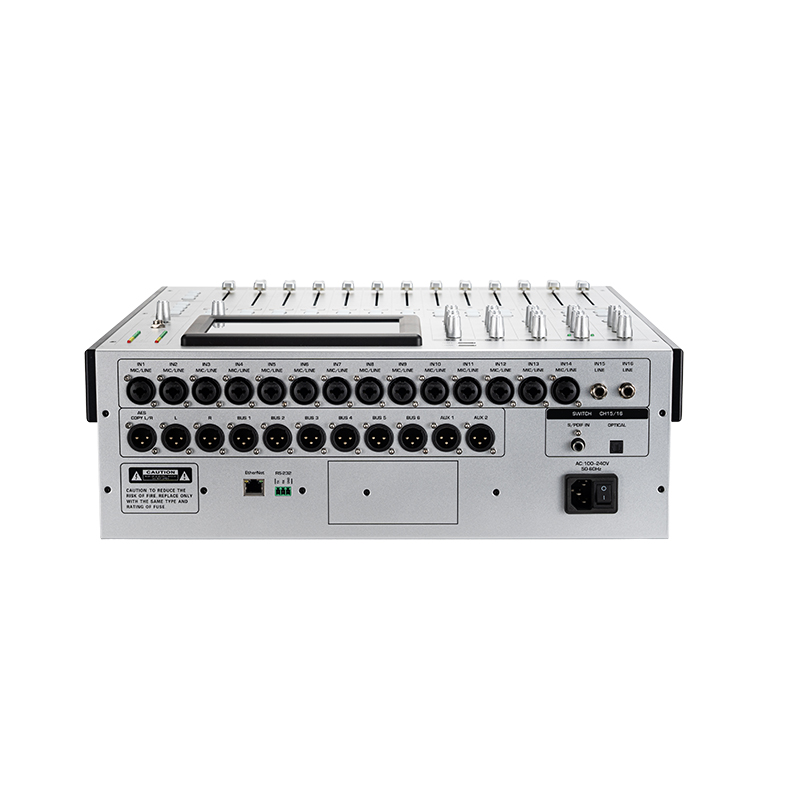

Analog output L/R+6BUS+2AUX+Headphone(L/R)
Noise floor -89dBu unweighted (AP 515 test)
Distortion 0.0045% @4dBu 20～20Khz
Signal-to-noise ratio -108dB unweighted
Dynamic range 108dB
Frequency response 20Hz－20KHz ±0.5dB
Maximum input and output level 18dBu (6.2Vrms) balanced
DCA Yes
Chinese and English interface Yes
Electric faders 13
iPad control Yes
Effector 2 effects
Feedback suppressor 16 independent
Speaker manager Yes
Ethernet 100M
RS-232 protocol Yes
WIFI 150M (optional)
USB mouse Supported
Dimensions (width * depth * height) 450x450x146mm
Net weight 8kg
Power supply AC 100v-240v 50/60Hz  55W
