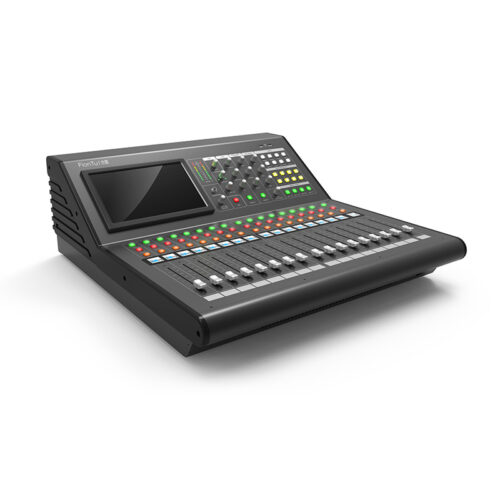

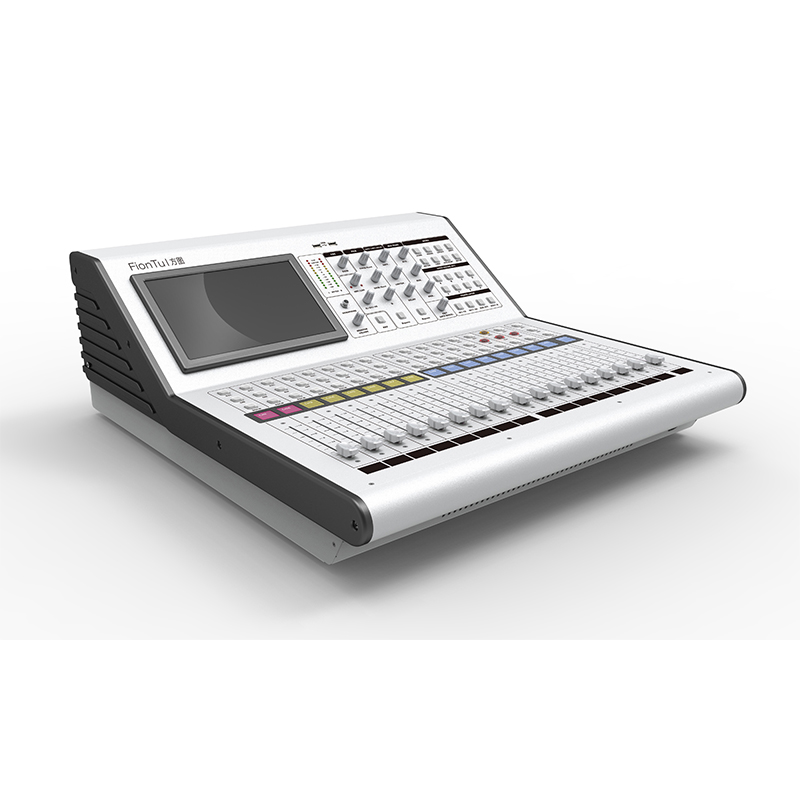

Digital Mixing Console FT-MIX2412

This device features a 10-inch resistive touch screen, 17 electric faders, and 24 analog inputs, supporting USB recording/playback of lossless audio formats. It includes 16-channel feedback suppression, 10BUS output, iPad control, and firmware upgrades via network or USB. Advanced audio processing options and scene presets are integrated, with multilingual support and customizable interfaces.
Categories:
Get Quote
Category Tags , , , ,
Description
  • 10-inch resistive touch screen with 1280x800 resolution
  • 17 100mm electric faders.
  • Chinese and English interfaces can be switched at any time without restarting.
  • Built-in USB recording and playback function.
  • Can play APE, FLAC, MP3.WAV lossless audio formats.
  • USB player can recognize Chinese song names.
  • Built-in 16 channels of independent feedback suppressor.
  • With 8 DCAs.
  • iPad touch screen full-function control, real-time data synchronization.
  • Support 8 terminals to control at the same time.
  • Built-in 2 effector modules.
  • ARM firmware and DSP firmware can be upgraded via the network or USB electronic disk.
  • Each input channel has 4-band parameter equalization, noise gate, feedback suppressor, high and low pass, compression, and inversion.
  • Each output channel has 8-band parameter Digital equalization, high and low pass, compression, inversion, 1.8 seconds delay.
  • Output channels L/R, 10BUS, HeadPhone (L/R).
  • 10BUS mixing bus can select pre-fader and post-fader (PRE/POST).
  • Support 100 sets of scene preset functions, can export and import USB memory for easy data backup.
  • 100 PEQ mode storage.
  • Built-in signal generator: sine wave, pink noise, white noise.
  • Channel parameter copy function, fast copy data of the same channel.

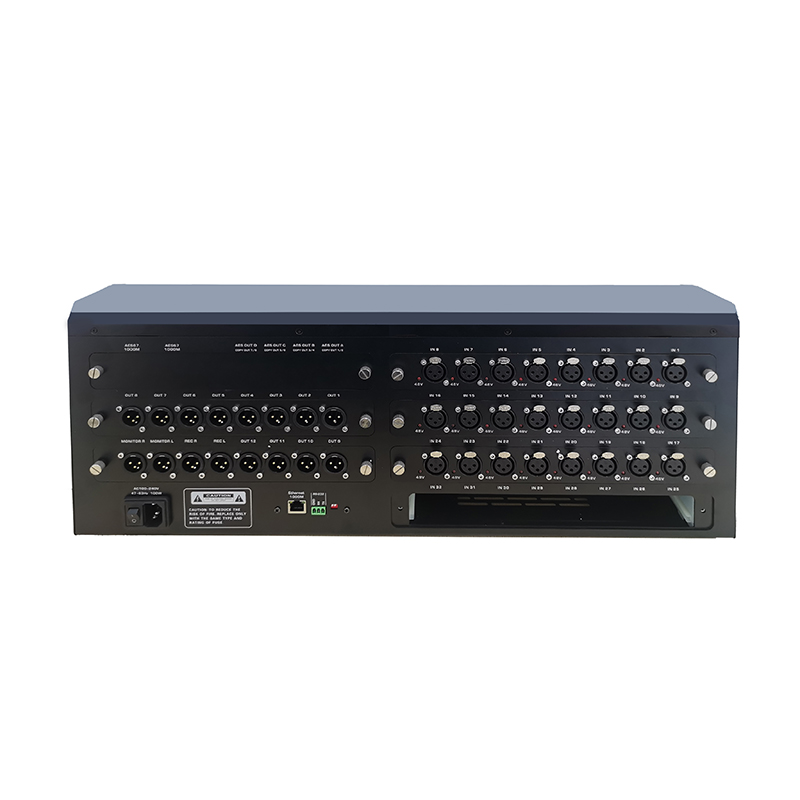

  • Wiring method: balanced input, output XLR.
  • 8 fader groups, 4 mute groups, 8 user-defined buttons.
  • With panel lock button (to prevent misoperation).
  • Channel name can be customized.

Parameter
Analog input 24CH (MIC/Line)
Analog output L/R+10BUS+Headphone(L/R)
Noise floor -90dBu unweighted AES17 (20Khz)
THD+N distortion 0.005% @4dBu 20～20Khz
Signal-to-noise ratio -108dB unweighted
Dynamic range 108dB unweighted
Maximum input level balanced 20dBu
Maximum output level balanced 20dBu
Frequency response 20Hz－20KHz ±0.3dB
Display size 10 inches
Resolution 1280x800
Touch resistive
Main control CPU Samsung 4418 4-core Cortex™-A9
Boot speed 36 seconds
Operating system Linux
DSP ADSP-21489 400Mhz
USB recording and playback
Playback formats APE, FLAC, MP3.WAV
DCA Yes
Chinese and English interface Yes
Electric faders 17
ipad control Yes
Effects 2 effects buses
Feedback suppressor 16 independent
Ethernet Yes
RS-232 protocol Yes
USB mouse support wired USB mouse
Power supply AC 100v-240v 50/60Hz 155W
Dimensions (width*depth*height) 610x650x230mm
Net weight 22.1kg
Gross weight 39.5kg (air box packaging) 800x710x350mm
Gross weight 32.25.5kg (carton packaging) 758x735x350mm
