Description

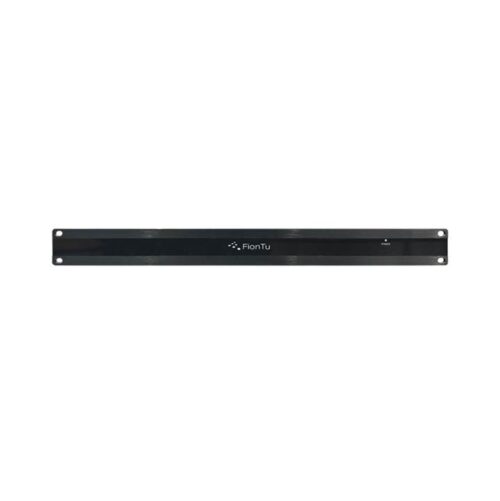

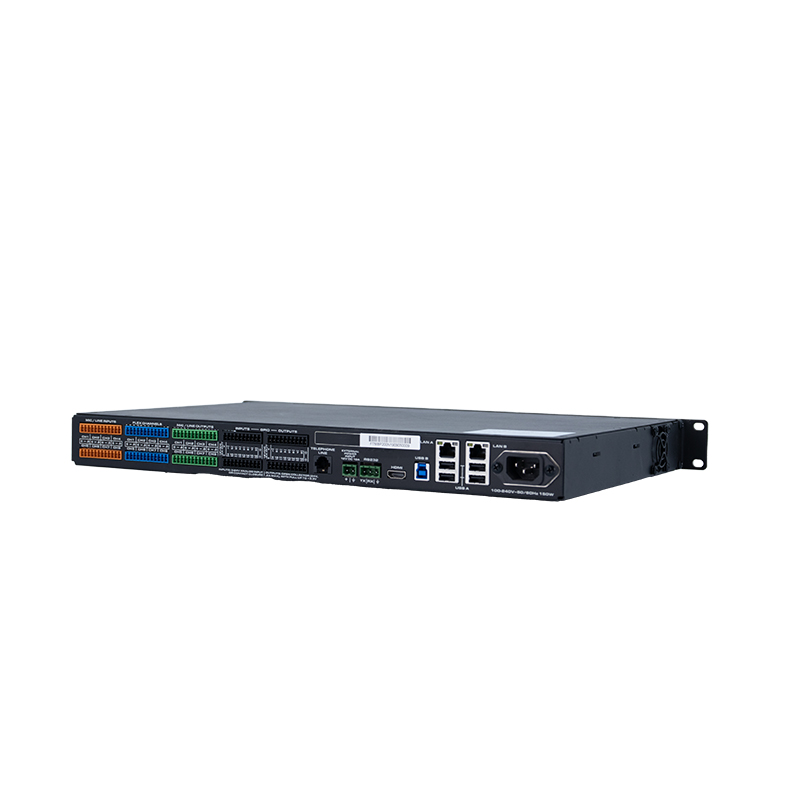

- MBP200 has 8 balanced microphone/line level analog audio input and 8 balanced line level analog audio output channels. In addition to the fixed 8*8 analog audio input and output channels, MBP200 also has 8 balanced microphone/line level analog audio input/output software custom channels. During system configuration or operation, a single channel can be configured as microphone/line level input or microphone/line level output. In this way, this 1RU device can provide 24 analog signal input/output ports, as well as other special input/output ports, such as VoIP, POTS, internal hard disk media playback/recording and USB interface
- Support 128*128 network audio channels
- Maximum 24 analog audio input/output channels
- 8 mic/line level analog audio input channels
- 8 line level analog audio output channels
- 8 microphone/line level analog input/output custom channels
- Maximum 16 assignable and routable AEC processor modules
- Two Gigabit Ethernet ports, can be used for VoIP connection, network control connection, network audio connection or network backup. Maximum 16*16 USB digital audio input and output channels
- 16 GPI interfaces and 16 GPO interfaces
- Built-in universal power module and 12V DC external power supply, dual power backup
Parameter
| Input sensitivity range | 39 dBu ~ +21dBu |
| Output total harmonic distortion | 0.003%, +10 dBu maximum output level |
| Sampling rate | 48 kHz |
| Output crosstalk | >108dB |
| Input gain | 0/10/20/30/40/43 dB |
| Input impedance | 5k Ω |
| Phantom power | +48V DC, input current maximum 10mA |
| Output impedance | 220 Ω |
| Frequency response | 20Hz to 20kHz@+21dBu |
| Output level range | -39 dBu ~ +21dBu |
| A/D-D/A conversion | 24bit |
| Power consumption | 60 W (nominal power), 120 W (maximum power) |
| Input dynamic range | @ +21 dBu sensitivity > 109.5 dB @ +10 dBu sensitivity > 106.4 dB @ -10 dBu sensitivity > 104.6 dB @ -39 dBu sensitivity > 104.6 dB |
| Dimensions (HWD) mm | 44 x 483 x 282.5 |
