Distributed interface machine FT-CN4TI-F

The FT-CN2KO-F is a versatile video processing and display solution designed for multi-location management, featuring decentralized architecture, H.265 codec support, and a broad range of input/output capabilities. It enables flexible multi-screen display layouts, remote KVM control, real-time signal management, and supports both unicast and multicast transmission. The system also includes features like video intercom, multi-party conference support, and customizable OSD for efficient control and monitoring.
Categories:
Get Quote
Category Tags , , , ,
Description
  •  FT-CN4TI-F is a product that integrates splicing, display, control, recording, and broadcasting functions. It integrateshigh-performance video processing and splicing display, multi-screen multi-location centralized management, remotesignal source sharing, massive streaming media access, dynamic ultra-high resolution point-to-point display, streamingvideo recording and playback, environmental management, external device control and other functions. It canmeet theneeds of various industries such as security, command, transportation, public safety, energy, education, andconferences
  • It adopts Linux system distributed architecture design and decentralized architecture. It can expand any number of nodeswithout servers and master nodes. Each node is independent and Interference with each other, reduce systemoperationrisk, and reduce maintenance costs
  •  Fanless silent design, supports independent installation in 1U cabinet or installation of 2 units side by side at thesametime
  • Each node unit uses H.265 data stream codec chip and is backward compatible to ensure the smooth operationof thesystem
  • Video input: support RTSP, RTMP protocol, private protocol, 2-way HDMI, embedded audio synchronous or asynchronous input, support port backup; support 1-way encoding, 1-way HDMI loop output
  •  Audio input: support AAC, G.711.G.726, private protocol, support CBR/VBR, support frame rate adjustable 1-60fps, audioinput interface, embedded audio synchronous or asynchronous input, supports volume adjustment, supports synchronous,asynchronous and mixing modes; supports multi-channel audio mixing playback, and lossless sound quality
  •  Supports audio visualization module management, uses sliders to control the output volume of each node, candisplaythe audio energy bar, and uses animation effects to display the audio status of the node

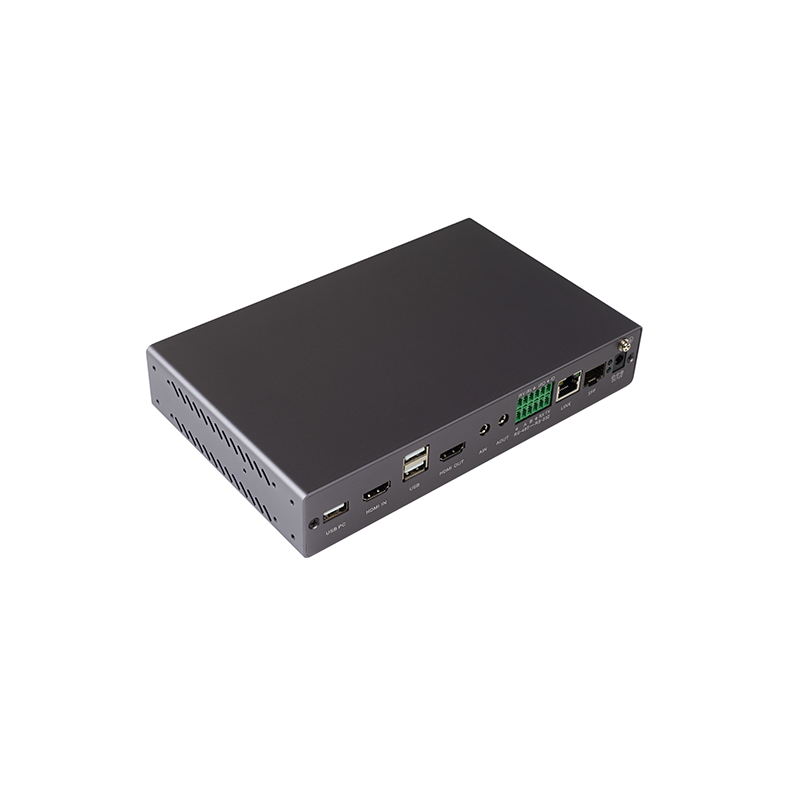

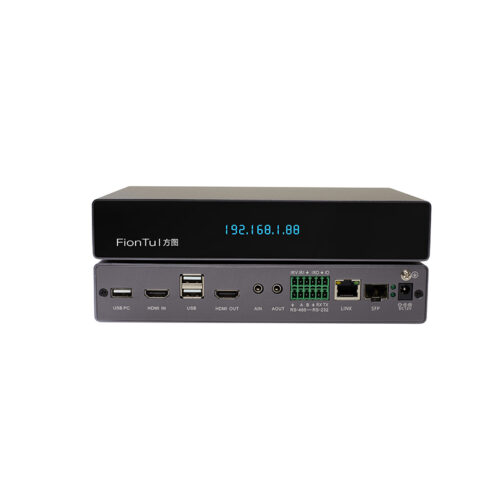

  •  With 1 power indicator, 1 video signal indicator, 1 network status and signal transmission status light, 1 factoryresetbutton, 3 USB 2. 0 interface, 1 Gigabit network port, 1 Gigabit optical port, 2 HDMI video input and output interfaces, 23.5mm audio input and output interfaces, 1 RS232 interface, 1 RS485 interface, 3 IR/IO
  • Support HDMI, DVI, VGA and other signals, the input signal resolution supports up to 3840*2160@30Hz, backwardcompatible
  • Support fixed bit rate transmission, adjustable range 128kbps~40Mbps
  • Support unicast and multicast
  • Support H.264 and H.265 IPC encoding cameras, IPC network cameras Signal access is directly output tothelargescreen, without the need for a third-party transcoding server, and supports pan/tilt zooming in, zooming out, left/rightrotation, etc.
  • The system scene can provide a one-key recovery function; the node device has programmable storage capabilities, andcan automatically restore the system to the state before power failure after power failure and restart, such as: volume, largescreen switch, signal position, lighting environment, etc.
  • Supports signal source classification, grouping and sorting management functions, and can manage all signal sourcesinthree levels of groups, display them in a tree form, or sort them by name, IP, or custom method; the client softwaresupports no less than 50 channels of real-time dynamic image preview display
  •  Supports OSD overlay display of device name, time, station logo, etc.; supports dual station logos, andcanmodifythestation logo in text
  • Supports environmental control module, and can directly control lighting, curtains and other environments throughRS232.RS485 and other serial ports without the help of central control and other equipment
  • Support OSD subtitle overlay, support high-definition background map
  •  Support EDID extended display logo automatic recognition, support HDCP
  •  Support POE and external power supply dual power supply mode
  • Support upgrading the encoding device through the network
  • Support optical network hot backup

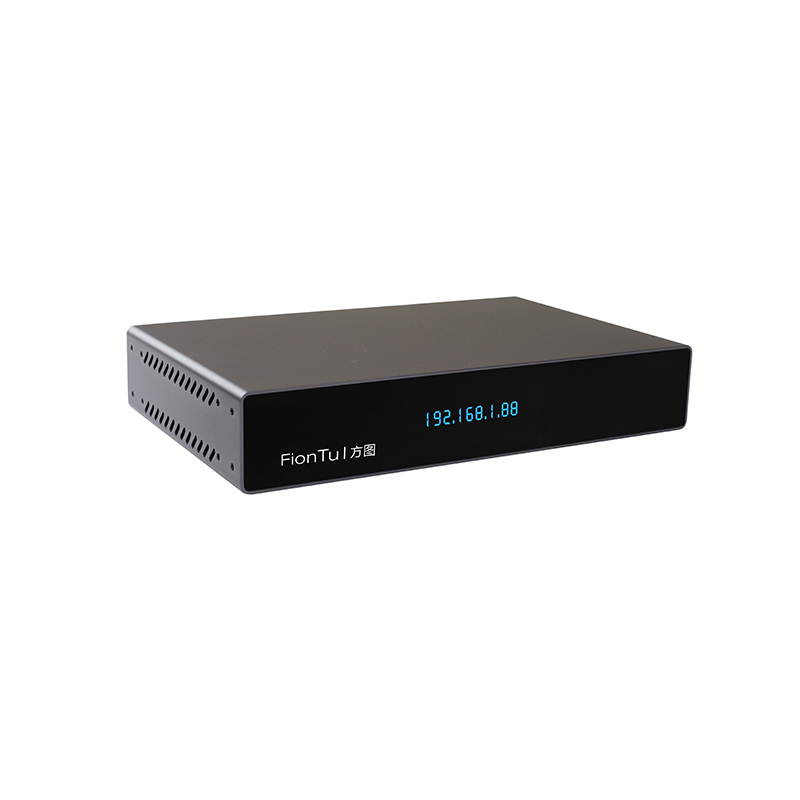

  • Support node LCD display status display, can display node name, IP address, operating status, etc. 23. Equipment power consumption ≤10W
  • Working temperature -10℃~60℃, working humidity 10%~90% without condensation
