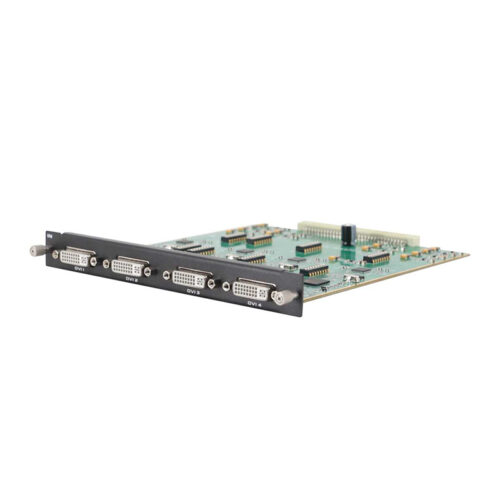

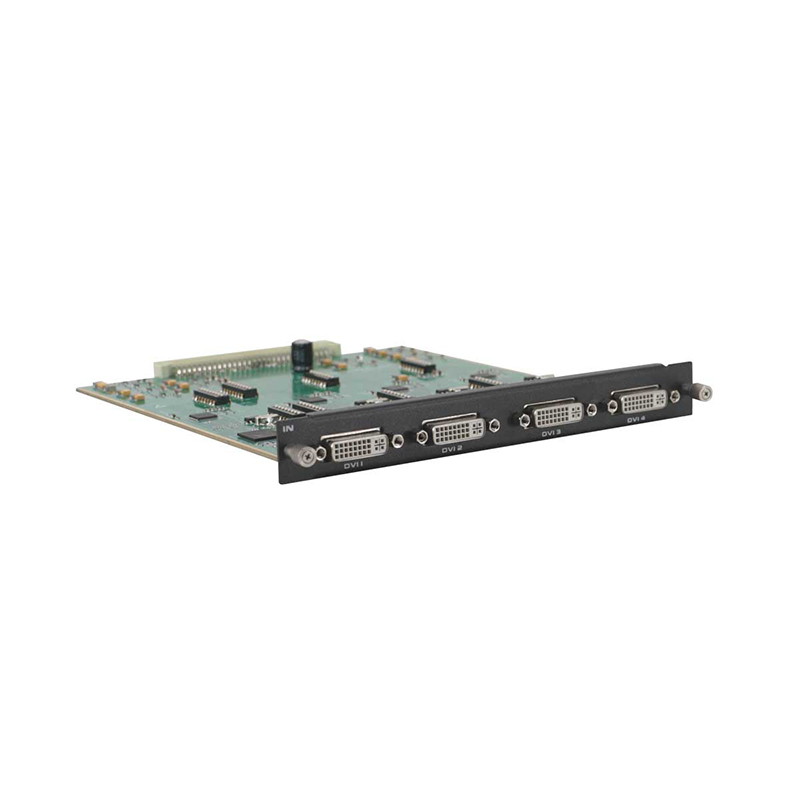

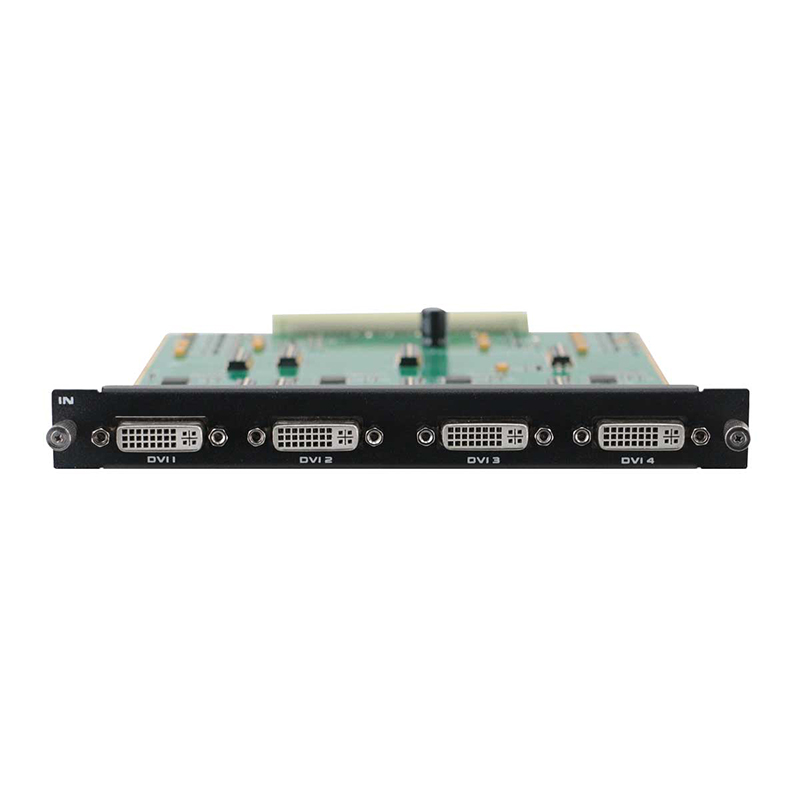

DVI Input Board FT-4IIMUS

The FT-4IIMUS is a 4-channel DVI seamless input board supporting 1080p60Hz video signals, with adaptive EDID and seamless switching capabilities. It ensures reliability with ESD protection, hot-plug support, and online updates for convenient maintenance. Designed for compatibility, it adheres to HDMI1.3 and HDCP1.4 standards and supports up to 20-meter cable lengths.
Categories:
Get Quote
Category Tags , , , ,
Description
  1. FT-4IIMUS is a DVI seamless input board that supports 4-way DVI audio and video signal input, supports digital high-definition 1080P60Hz signal, and has a highly integrated board design. The number of boards can be selected as needed, which brings great convenience to application and maintenanc
  2. Support 4-way DVI-D female interface
  3. Support fast and seamless switching, no flicker, no black screen
  4. Support power-off on-site switching memory protection function, unique ESD static protection function
  5. Compatible with HDMI1.3 and HDCP1.4 standards
  6. The maximum resolution supports 1920X1080@60HZ resolution, with a balanced 20-meter cable length
  7. Support hot plugging, plug and play, extremely convenient
  8. Support online update of board program, convenient maintenance and upgrade
Parameter
Protocol HDMI1.3 standard, HDCP1.4 protocol
Gain 0 dB
Pixel bandwidth 300MHz, all digital
Interface bandwidth 4.5Gbps, all digital (13.5Gbps in total, 4.5Gbps for each color)
Maximum supported resolution 1920*1080@60HZ resolution
Bit clock jitter (Clock Jitter) <0.15 Tbit
Rise time <0.3Tbit (20%--80%)
Fall time <0.3Tbit (20%--80%)
Maximum transmission delay 5nS (±1nS)
Interface 4-way DVI-D female interface
Signal strength T.M.D.S.+/-0.4Vpp
Minimum/maximum level T.M.D.S.2.9V/3.3V
Impedance 50Ω
EDID Adaptive input EDID
Maximum DC bias error 15mV
Recommended maximum input/output distance input less than 20 meters
Product weight about 0.8KG
Maximum power consumption 15W
Donwload
FT-4IIMUS
